Movie Screen Outdoor Waterproof Advertising Outdoor LED Large Screen Display

• IP Rating：IP65
• Pixel Pitch：6mm

=== Base Info ===

• Model NO.：P6
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：350W , m²
• Pixel Density：40000pixels,Square Meter
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO, SGS
• Brightness：≥6500CD,Square Meter
• Refresh Rate：1920Hz,3840Hz
• View Distance：3--100m
• Exchange Frame Speed：>150frames Per Second
• Life Time：100, 000hours
• Cabinet Material：Steel,Die Casting
• Cabinet Size：960mm*960mm
• Warranty：2 Years
• Transport Package：Wooden Case Packing
• Specification：960mm*960mm
• Trademark：QC
• Origin：China, Guangzhou
• HS Code：8528591090
• Production Capacity：3000 Square Meters , Month

=== Description ===

Basic Info.

Model NO. P6 Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display Average Power Consumption 350W / m² Pixel Density 40000pixels/Square Meter Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO, SGS Brightness ≥6500CD/Square Meter Refresh Rate 1920Hz/3840Hz View Distance 3--100m Exchange Frame Speed >150frames Per Second Life Time 100, 000hours Cabinet Material Steel/Die Casting Cabinet Size 960mm*960mm Warranty 2 Years Transport Package Wooden Case Packing Specification 960mm*960mm Trademark QC Origin China, Guangzhou HS Code 8528591090 Production Capacity 3000 Square Meters / Month

Product Description

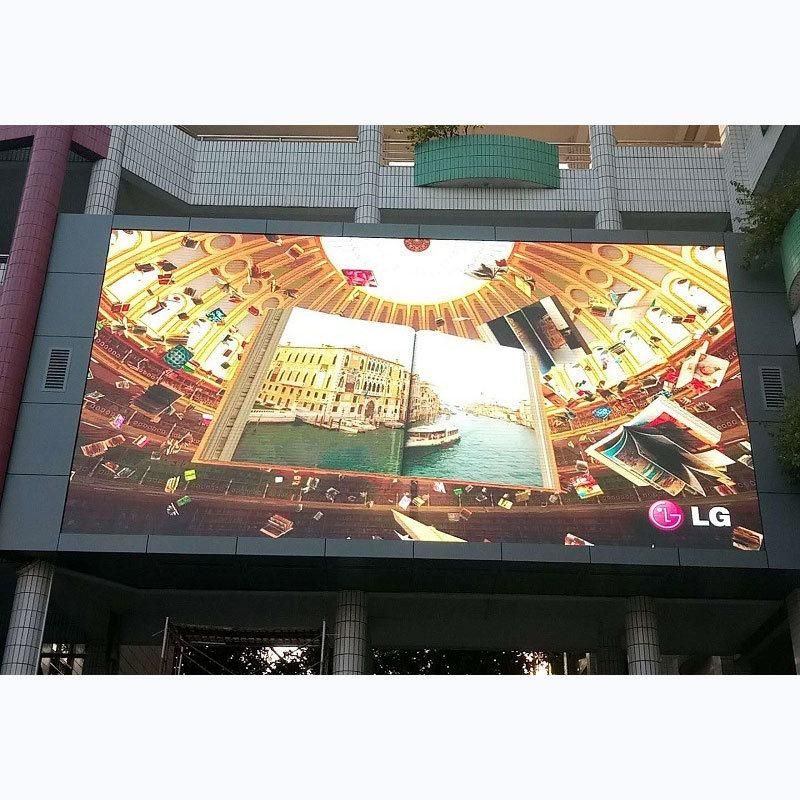

Movie screen outdoor waterproof advertising outdoor led large screen display
Technical Parameters

Pitch Size	6mm
Module Size	192mm*192mm
Module Pixel(dots)	32dots*32dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1
LED chip	Sanan
Color scale	65536degree/16777216colors
Pixel density	40000pixels/square meter
View angle(H/V)	≥140/140degree
Brightness	≥6000cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	3--100m
Power consumption	100-1000W/square meter
Net weight	42kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	1920Hz-3840Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50/60Hz
Operating system	Windows series
Drive mode	constant current driving, 1/8 scan
Display mode	VGA640X480-VGA1600X1024
Protections for indoor display	IP65
Maintenance way	Rear access
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI


Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P6.67,P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10


Company Information

Packing & Shipping

Payment terms: By T/T in advance, 30% deposit and the balance 70% before shipment.

Delivery time:15-20days

Warranty time:2 years,offer the free spare parts(module & power supply) in advance.After guarantee term,
still supply spare parts with charging only materials cost.

Packing:Standard wooden case packing free,flight case packing



FAQ

1. Diversified products :

Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.



 2. Experienced&Professional:

10 years manufacturing experience on LED displays, professional workmanship & design.



 3. Best raw materials:

 High quality,high brightness and long life span.



 4. Competitive price:

 100% factory price,competitive and reasonable price.



 5. Strict quality control:

 100% testing before packing , make sure our quality before delivery.



 6. Quality gurantee:

 Life span of LED display screens is more than 100,000 hours

 All our LED displays have CE,FCC,RoHS certificates.



7. Prompt &Professional service :

Any inquires will be replied within 24 hours in working days and you'll get helpful suggestions from us.
