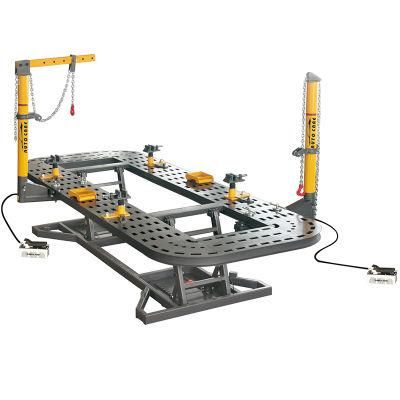

Good Choice Car Body Chassis Straightening Bench

• Type：Flatbed-type
• Max. Lifting Capacity：3.5T
• Certification：CE, ISO, SGS
• Standard：Standard
• Condition：New
• Working Length：5600mm

=== Base Info ===

• Model NO.：BL-5600
• Working Width：2200mm
• Working Height：300 to 1180mm
• Control Box Included or Not：Included
• Transport Package：in Pollywood
• Trademark：Auto Care
• Origin：Yantai, China
• HS Code：84798190
• Production Capacity：100 Sets,Month

=== Description ===
Platform length5600mmPlatform width2200mmPlatform height300 to 1180mmTower pulling capacity95KNPlatform Lifting Capacity3500kgTower working range360°Air Foot Pump2 setsElectric Contol BoxIncludedTips: We can produce the car bench as your requirements.

Details of Car Bench BL-5600:1Strong and endurable platform is made of 10mm thick Q345 steel plate. Platform beam is made by 18# channel steel with rib plate stuffed. The bottom plate with 10mm plate welded. Platform inside is filled with all rib plate, to guarantee the strength of the platform when stretching.2
With olecranon guide ring, easy Locking with the tower when it working, to avoid loosing and sliding up of the guide ring because of long time use.3
The length of the bolt is shorter and make it fixed smoother. Bolts is made of 45# steel after quenching, galvanized surface, to ensure that it has high strength and abrasion resistance.4
"-" type tower-bearing design,  with two reasonable rolling bearings, more reasonable and durable, also avoid towers off.5
The activity wheel is more thicker with unique structural design to ensure moving the tower more smoothly with long-life use. when stretching, the tower is not easy to deformation.6
Treated with high-frequency hardening and unique processing technology. The jaws are completely staggered, to a greater extent which increasing the contact surface, clamping more firmly.
