Garage Equipments/Painting Equipment/Spray Booths for Car Painting

• Type：Spray Booth
• Certification：CCC, CE, CSA
• Substrate：Steel
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Cross-flow Type

=== Base Info ===

• Model NO.：BY-3
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Voltage：220V,380V,50Hz
• Color：Optional
• Purification：≥95%
• Noise Db (a)：≤75
• Certificate：CE,CCS
• Air Capacity：21000m3,H
• Place of Origin：China (Mainland )
• Usage：for Car Spraying and Baking
• Wararanty：1years
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：90set,Month

=== Description ===
Detailed SpecificationInside dimension6900×3900×2650 mm (L×W×H)Outside dimension7000×5350×3400mm (L×W×H)Front doorFolding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.Emergency door1 units, 650×1800mm (W×H), colour: white.BasementGalvanized steel assemble, 300mm high, quadrate steel support, 2 rows grilles made by flat bar and twisted steel, galvanized, 3 rows indented plate, silver colour, 2 ramps, 750×2000mm/pc, silver colour.Wall panelThickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with EPS inside, colour: white.LightCeiling Lights: 8Units×4Pcs=32Pcs×36W, side lights: 8Units×2Pcs=16Pcs×18W, with electronic ballasts, lighting boxes are powered coated, illumination ≥1000LUXGenerator cabinetIntake from back upper, exhaust from rear upper, galvanized steel frame; orange machine-made panel covered, filled with heat preservation material inside.Intake and Exhaust systemInlet:1×7.5KW turbo fan, air capacity for each fan: 25000m3/h.Outlet: 1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. Manual damper, 4m ducts, 1 pcs 900 bend, 1 pcs 300 bend.Heating systemItaly RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, max temperature: 80ºC, 4pcs chimney, 1 pcs bend.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filter.RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, all motors is normal start.Total power17.5KW (Power supply  1×220V, 3×380V, 50HZ)

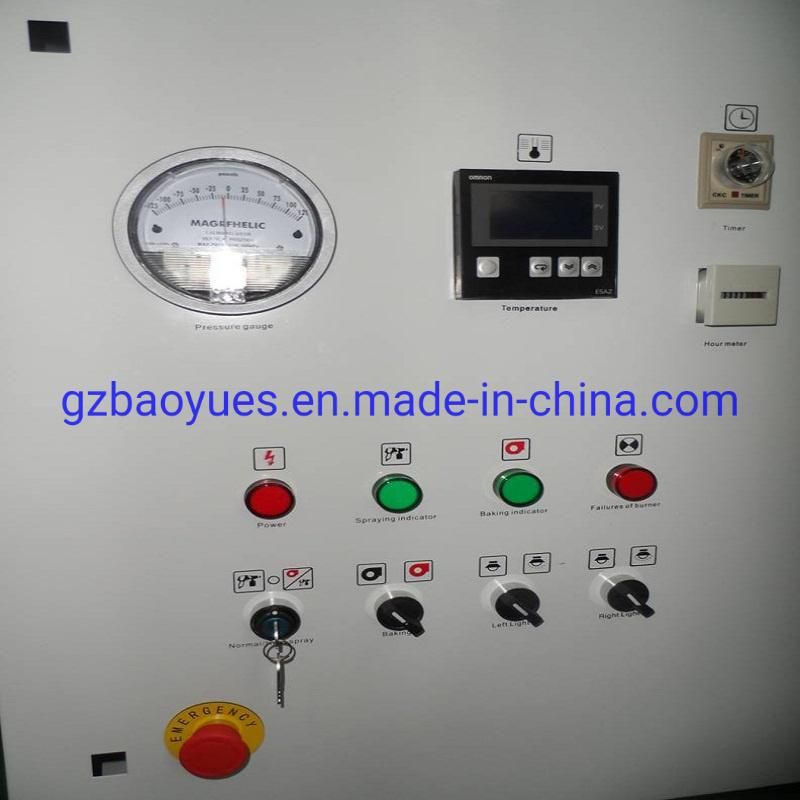

Parts details:


What customers saying:



Factory show:
