Double Stage Reduce Speed Parallel Shaft Hardened Cylindrical Gear Box

• Application：Industry
• Function：Change Drive Torque, Speed Reduction
• Layout：Coaxial
• Hardness：Hardened
• Installation：Horizontal Type
• Step：Three-Step

=== Base Info ===

• Model NO.：ZLY112-6.3-I
• Type：Cylindrical
• Gear：Hardened HRC55-62
• Shaft：Parallel Shaft
• Input Motor：4p ~ 6p (1500rpm~750rpm)
• Color：Grey, Blue, Yellow, Green, Orange
• Material：Cast Iron
• Manipulate Way：Robotics
• Toothed Portion Shape：Bevel Wheel
• Changes Way：Stepped
• Manufacturing Method：Grinding Gear
• Transport Package：Wooden Case,Plywood Case,Pallet
• Specification：ISO9001: 2008
• Origin：Jiangsu
• HS Code：8483409000
• Production Capacity：53000 Sets,Month

=== Description ===
Size80, 100, 125, 160, 200, 250, 280,
315, 255, 400, 450, 500,560Ratio6.3; 7.1;  8;  9; 10; 11.2; 12.5; 14; 16; 18; 20 The rotation speed of high speed shaftno more than 1500rpm.The circumferential velocity of gearno more than 20m/s.Ambient temperature-40~45ºC. Lubricant should be heated up to 0ºC before starting if the ambient temperature is below 0ºCDirectionclockwise and un-clockwise
Characteristics:
1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;
2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3.Smooth and stable in run, low noise;
4.Compact, light, long life, high bearing capacity;
5.Easy to disassemble, inspect and assemble.


Aplication fields:
widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.mainly:
metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc....




FAQ

Q: What is your MOQ of this item?
A: 1pcs. For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: What's the delivery time?
A: 30 days after receiving your L/C or T/T deposit.

Q: Can we used our own brand on motors ?
A: Sure, we can offer OEM service, manufacture with your authorized brand.

Q: How long is your warranty?
A: 12 months after receiving B/L.

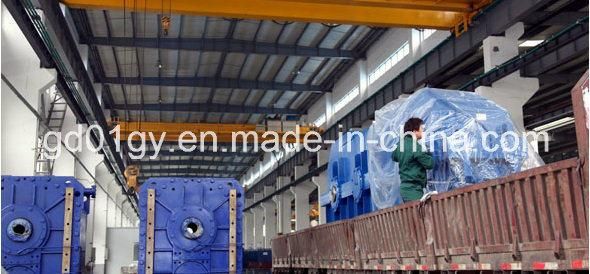

Factory
