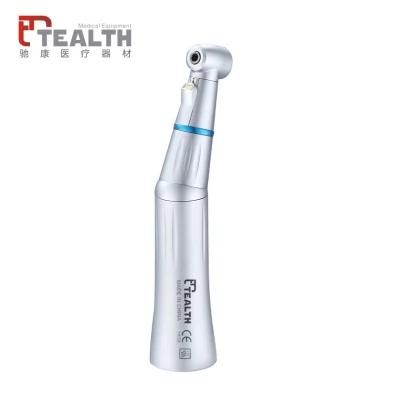

Tealth Dental Inner Water Low Speed Contra Angle LED Handpiece

• Condition：New
• Certification：TUV, ISO, CE
• Material：Stainless Steel
• Light Way：With LED Light
• Water Way：Inner Channel
• Usage Times：Non-Disposable

=== Base Info ===

• Model NO.：CIL-02C
• Application：Adult, Child
• Loading Way：Gland Type
• Head Diameter：Middle Head
• Exhaust Way：Internal Exhaust
• Number of Holes：Two Holes
• Connection：Without Quick Connector
• Rotating Speed：Low-Speed Handpiece
• Noise：Less Than 70dB
• Light：LED E-Generator
• Transport Package：Plastic Box
• Specification：Aluminum, stainless steel
• Trademark：TEALTH
• Origin：China
• HS Code：90184100
• Production Capacity：50000PCS,Year

=== Description ===

Basic Info.

Model NO. CIL-02C Application Adult, Child Loading Way Gland Type Head Diameter Middle Head Exhaust Way Internal Exhaust Number of Holes Two Holes Connection Without Quick Connector Rotating Speed Low-Speed Handpiece Noise Less Than 70dB Light LED E-Generator Transport Package Plastic Box Specification Aluminum, stainless steel Trademark TEALTH Origin China HS Code 90184100 Production Capacity 50000PCS/Year

Product Description

 Name: Low speed 1:1 contra angle with LED light
Model : CIL-02C



Packing List:
- Push Button LED light Contra Angle handpiece: 1 pcs
- Cap Spanner: 1 pcs
- LED light: 1 pcs
- English manual: 1 pcs

Features:
1.Push button chuck type,Kavo type internal head
2.LED contra-angle, E-generator, self-illuminated, push-button chuck type. 2 type LED contra angle for choose
3. Internal irrigation, perfect cooling  systerm
4. Match up with FG bur (Φ1.60mm) and CA bur head(Φ2.35mm)
5. 4 holes or 2 holes connector, stanard E-type connection
6.Imported bearing from Japan

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.

Removal
Grip both handpiece and motor respectively, pulling and separating.


Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
