Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

Yuhuan Green Island Plastic Packaging Factory / 2022-06-27

Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:10mm
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:350W , m²

=== Base Info ===

  • Model NO.:LW-FO10
  • Pixel Density:10000 dot , m²
  • Scanning Mode:1,2 Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, UL, CCC, ETL
  • Pixel Configuration:1r1g1b DIP345
  • Module Size:256X128,256X256
  • Cabinet Size:1024X1024X190
  • Cabinet Weight:58kg
  • Brightness:More Than 7000CD,M2
  • Viewing Angle:H: 110 V: 60
  • Cabinet Material:Cold Rolled Steel or Aluminum
  • LED Life:100,000 Hours
  • IP Rate:Front IP65
  • Display Capability:Text, Graph and Video
  • Transport Package:Wooden,Cartoon Case
  • Specification:CE UL Rohs etc
  • Trademark:LED World, OEM, ODM
  • Origin:Made in China
  • HS Code:8528591090
  • Production Capacity:5000sqm Per Moth

=== Description ===
ItemsP4mmP5mmP6mmP8mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD2525SMD2727SMD3535SMD3535SMD3535Pixel Pitch4mm5mm6mm8mm10mmPixel Density62500 dots/m240000 dots/m227777 dots/m215625 dots/m210000 dots/m2Module Size(mm)256x128160x160192x96or 192x192256x128320x160Pixels/Module64x3232x3232x16 or 32x3232x1632x16Cabinet Size(mm)768x768960x960960x9601024x1024960x960Pixels/Cabinet192x192192x192160x160128x12896x96Cabinet Weight24KG36KG36KG41KG36KGBrightness>5500cd/>5500cd/>6000cd/>5000cd/>7000cd/Viewing Distance>4m>5m>6m>8m>10mPowerMax: 1300Max: 1300Max: 1300Max: 1000Max: 1000Consumption(W/)Ave: 300Ave: 300Ave: 260Ave: 260Ave: 300Driver Mode1/8 scan1/8 scan1/4 scan or 1/81/4 scan or 1/81/2 scanViewing AngleH: 120°;   V: 120°Cabinet MaterialCold Rolled Steel or aluminumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with the most economic benefit.
3. Design the framework structure to install our led products with technical drawings.
4. We offered software customization for your specific usage.
After-sales service:
1. We promise you more than just two years of warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and troubleshooting for you.
3. We promise a lifetime follow-up service for all the equipment supply by our company. These include continuously improve system functions and upgrade of system software.
4. We offered training to our customers who includes the operating and maintenance of our products.


Project case:

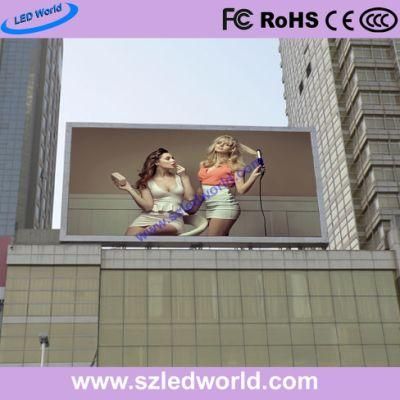

Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen
Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

Product detail:
Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

product Aging:

Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

Our company:Shenzhen LED World CO., LTD  was founded in 2009, focusing on the LED technology research and LED full-color display production, sales, and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology, industry veteran, high-quality, high standards of the modern management team, a high level of professional and technical developer, has many years of operating experience and well-trained, a significant number of skilled workers. Company strict implementation of  7 S management standard professional management standards, has passed 3C, CE, FCC, RoHS, ISO9001-2009 quality system certification, reliable quality, advanced technology, automation of form a complete set of products and continuous development of our roots. products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia, etc more than 20 countries and regions, and gained good reputation from the clients.

workshop and package:
Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen

Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen
Ledsmd Wide Viewing Angle Outdoor / Indoor LED Display Screen
