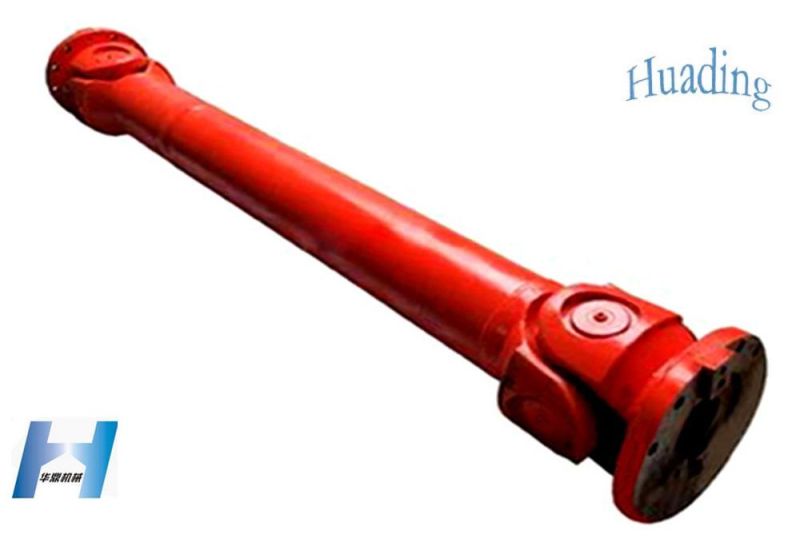

Wss Type Cardan Shaft Flexible Universal Coupling

Jiaxing City Qunbang Hardware Co., Ltd. / 2022-06-27

Wss Type Cardan Shaft Flexible Universal Coupling

  • Standard Or Nonstandard:Standard
  • Shaft Hole:as Your Requirement
  • Torque:as Your Requirement
  • Bore Diameter:as Your Requirement
  • Speed:as Your Requirement
  • Structure:Flexible

=== Base Info ===

  • Model NO.:WSS
  • Material:40cr
  • Type:Universal Coupling
  • Terms of Shipment:by Sea
  • Delivery Time:Depend on Your Quantity
  • Length Compensation:Telescoped
  • Transport Package:Depend on Your Quantity
  • Specification:as your requirement
  • Trademark:Huading
  • Origin:China
  • HS Code:8483600
  • Production Capacity:10000pieces,Year

=== Description ===

Basic Info.

Model NO. WSS Material 40cr Type Universal Coupling Terms of Shipment by Sea Delivery Time Depend on Your Quantity Length Compensation Telescoped Transport Package Depend on Your Quantity Specification as your requirement Trademark Huading Origin China HS Code 8483600 Production Capacity 10000pieces/Year

Product Description

Gimbal flexible cardan shaft coupling(WSS)
Features:
1. It is suitable for transmission coupling space on the same plane of two axis angle beta β≤45°, the nominal torque transmission 11.2-1120N.
2.The WSD type is a single cross universal coupling, and the WS type is a double cross universal coupling, the WSS type is a telescopic universal coupling.
3.Each section between the largest axis angle 45º.
4.The finished hole H7, according to the requirements of keyseating, six square hole and square hole.
5.The angle between the two axes is allowed in a limited range as the work requirements change.


Model   Tn
   N.m
   D   d  Lo min   L   L1   L2   S
WSS2   22.4   20   12   176   22   32   112   30
WSS3   45   25     14   200   27   40   129   30
WSS4   71   32   18   243   30   46   151   35
WSS5   140   40   22   287   38   58   171   43
WSS6   280   50   28   337   44   69   199   50
WSS7   560   60   35   428   60   91   246   65
WSS8   1120   75   42   556   84   122   322   90


Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Wss Type Cardan Shaft Flexible Universal CouplingWss Type Cardan Shaft Flexible Universal CouplingWss Type Cardan Shaft Flexible Universal CouplingWss Type Cardan Shaft Flexible Universal CouplingWss Type Cardan Shaft Flexible Universal Coupling
