Bevel Gear Jack Systems Vs. Worm Gear Jack Systems, Bevel Gear Screw Jack System Vs. Worm Gear Screw Jack System, Lifting Platform Vs. Lift Table

• Application：Lifting and Positioning
• Gear Shape：Bevel Gear
• Step：Single-Step
• Type：Worm Reducer
• Transport Package：Standard Exporting Plywood Cases
• Trademark：JACTON

=== Base Info ===

• Model NO.：2.5-ton - 50-ton
• Origin：Made in China
• HS Code：8428909090
• Production Capacity：3000PCS Per Month

=== Description ===

Basic Info.

Model NO. 2.5-ton - 50-ton Origin Made in China HS Code 8428909090 Production Capacity 3000PCS Per Month

Product Description

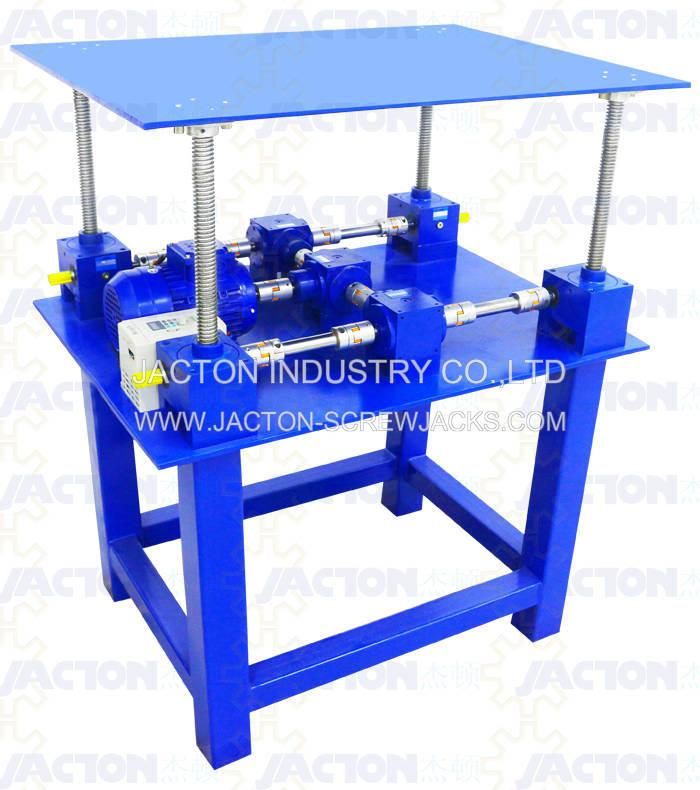

Bevel Gear Jack Systems Vs. Worm Gear Jack Systems, Bevel Gear Screw Jack Systems Vs. Worm Gear Screw Jack Systems, Lifting Platform Vs. Lift Table. Bevel Gear Screw Jack System offers higher efficiency, greater speed, longer duty cycle capabilities and multiple configurations than other Mechanical Worm Gear Screw Jack System. As an added benefit, bevel gear jacks also act as miter boxes, making them an ideal choice for multi-jack systems. The system's make it a diverse product that suits a variety of applications. Bevel gear jacks with single lead screws provide the benefits of a self-locking screw, and bevel gear jacks with double lead screws offer even greater travel speed.

Worm Gear Screw Jack Systems are sufficient for large loads that are infrequently moved, Bevel Gear Screw Jack Systems offer more flexibility and programmable options  for a wider range of applications. A mechanical worm gear jack is used where precisely controlled linear movement and positioning are needed. We manufacture two main types of mechanical screw jacks, they are machine screw jacks or ball screw jacks. The design is based on our standard worm gear drives and provides the freedom to mount units in all positions, on a floor, wall or ceiling, for example. Multiple jacks can operate in a group with a shared drive motor, coupled by bevel gears, clutches and transfer shafts. All sizes are available with a variety of gear ratios to ensure the best possible match with the desired movement and precision. A number of versions are also offered with a self-locking action, meaning that the jack locks itself to ensure safety, and no energy is needed to support the load. Complete accessories: bellow, anti-backlash design, safety nut, ball screw, limit switch, overload clutch, potentiometer, encoder, brake, hand-wheel, mounting accessories. Note: Worm gear screw jacks with multi-start screws are also available for applications with high lifting speeds. These versions run at a considerably lower screw speed and better efficiency for the same lifting speed. They are generally not self-locking. Our worm screw jacks come in three versions:
Translating Screw Version: Main components of screw jacks are; trapezoidal lifting screw, worm screw, worm gear and gear housing. Worm screw is rotated manually or by motor. Worm gear is rotated by worm screw. The lifting screw moves through the rotating worm gear. If free load connected to screw jack, screw will rotate circularly and move up ande down. If it is constantly load, screw will move vertical ways linearly. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.
Anti-rotation Keyed Screw Version: Main components of screw jacks are; trapezoidal lifting screw, worm screw, worm gear and gear housing. Worm screw is rotated manually or by motor. Worm gear is rotated by worm screw. The lifting screw moves through the rotating worm gear. In order to prevent/block screw's rotation, wedge should be opened to screw. By this way, the screw can just move vertically. Screw connection type's importance will be put away. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.
Travelling Nut Rotating Screw Version: Main components of screw jacks are; trapezoidal lifting screw, worm screw, lifting nut and gear housing. Worm screw is rotated manually or by motor. With the rotation of the gear, the screw that is inside the screw jack only makes its rotation about its axis. The flange, which is produced from the bronze material on the screw shaft moves linearly upwards or downwards. One of the purposes of using such systems is the lack of ducting or storage for the movement of the screw used in the screw type and screw type cockp. Although screw jack doesn't lift down from bottom. The linear motion speed of lifting screw depends on thread size and rotation ratio of worm gears.




Bevel gear jack systems don't come with standardized travel lengths, so each one can be built to specification. Bevel screw jacks come available in machine and ball screw models. Machine screw jacks use a trapezoidal acme screw that offers a low backlash between the nut and screw. Ball screw jacks use hardened bearing balls that allow for smooth and efficient movement of the load. Bevel gear jacks have the capability to run continuously at high efficiency without overheating. Because of the greater efficiency and rolling action, the ball screw can operate at higher speeds or increased duty cycle when compared with the machine screw jack. Available in three jack configurations, bevel gear screws can move along the lift shaft in a variety of ways to meet customer expectations:
Translating: The translating configuration has a lifting shaft that moves through the gear box. A nut is integrated with the bevel gear such that the bevel gear and nut rotate together. When the lift shaft is held to prevent rotation, the lift shaft will move linearly through the gear box to move the load.
Rotating: A rotating jack has a lift shaft that moves a nut as it turns. The lift shaft is fixed to the bevel gear. This causes the load, which is attached to the travel nut, to move along the lift shaft.
Keyed: The lift shaft of a translating style jack must be attached to something which prevents the lift shaft from rotating. If it is not, the lift shaft (and the load) will turn and not translate. A feature can be added to a machine screw jack to prevent lift shaft rotation. This type of jack is referred to as a "keyed jack" and is available in translating models. Anti-rotation is accomplished by a square guide attached to the screw translating inside a square stem cover attached to the jack. The square stem tube is supplied with lube fittings.




Shipment and Packing Pictures
Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing:
100% standard exporting plywood cases.
Note: International Exporting Standard Wooden Material with Free Fumigation.


JACTON Advantages
1. International standard materials for All JACTON brand products. We insist on choosing brand suppliers to supply the high quality raw materials to control the producing process. Optimization constantly the production processes, inspecting in each link and managing production site.
2. 100% quality assured with double quality inspections. The quality inspection by quality inspectors from processing to finished products as the first time. Before packing, the corresponding sales engineers must inspect the orders following the paper drawings, order quantities and special markings in the invoice or sales contracts as the second time. After that, fill in the inspection report with signature and company stamp.
3. 100% safety transportation. Packing with strong standard export plywood cases materials (free fumigation), inner packing with epe foams to prevent products swaying and outer packing with iron sheets and fasteners to fasten the packages.
4. Internationl sales engineers have professional knowledge and skills on our standard products and service. They have enough ability to solve the basic technical problem immediately whatever by phone, online chat, face to face communications.
5. All the standard products with 2D CAD Drawings (PDF, DWG and DXF formats), and 3D CAD Models (STEP, STP, MODEL, IGS, PRT and CATParT formats).
6. Custom design available, OEM service available, Free engineering advice, Free quotes available and Customer label available.
7. Inspection equipments include motor with inverter drive system, height adjustmemt motorized lifting system, coordinate measuring machines, outside micrometers, inside micrometers, depth calipers, vernier calipers, digital calipers, hardness testers, digital noise meters, industrial infrared thermometers, digital speed measuring instruments, digital multimeters, and high precision clamp digital ammeter etc.
8. Processing with modern advanced machines such as CNC gear hobbing machines, CNC flank grinding machines, CNC cylindrical grinding machines, multi-axis CNC milling machines, CNC lathes and others equipments.


Finished Projects
1. Theatrical solutions stage and orchestra platform lifts projects. Customers are from France, Australia, Netherlands, United Kingdom, Spain and Canada.
2. Hydroelectric power station projects and water conservancy projects. Customers are from Vietnam, Australia, Malaysia, Russian Federation, Nepal, Pakistan, Belgium, United States and United Kingdom.
3. Aircraft maintenance platforms and docking systems projects. Customers are from Pakistan, Singapore and United Arab Emirates.
4. Solar panel tracking system projects. Customers are from Spain, India and Canada.
5. Bolted steel storage tanks and silos lifting solutions. Customers are from South Africa, United States, Mexico, Russian Federation, Brazil and Vietnam.
6. Dish antenna elevation and azimuth positioning projects. Customers are from Singapore, Malaysia and United States.
7. Railway wagon projects. Customers are from South Africa.
8. Beverage can production lines. Customers are from Netherlands, United States, Thailand and Indonesia.
9. Steel factories production lines. Customers are from Iran, United States and Turkey.
10. Continuous PU sandwich panel production lines. Customers are from Thailand and United Kingdom.


JACTON Customers Areas(Countries)
1. American Countries: United States, Mexico, Canada, Chile, Bolivia, Brazil, Colombia, Dominican Republic, Honduras, Costa Rica, Panama, Puerto Rico, Jamaica, Trinidad and Tobago, Aruba, Argentina, Peru, Venezuela.
2. European Countries: Russia, Germany, Turkey, France, United Kingdom, Italy, Spain, Ukraine, Poland, Romania, Netherlands, Belgium, Greece, Czech Republic, Portugal, Sweden, Hungary, Belarus, Austria, Switzerland, Bulgaria, Denmark, Finland, Slovakia, Norway, Ireland, Croatia, Georgia, Armenia, Lithuania, Slovenia, Estonia, Cyprus, Luxembourg, Iceland.
3. Asian Countries: Malaysia, Indonesia, Singapore, Pakistan, Philippines, Vietnam, United Arab Emirates, Thailand, Saudi Arabia, Iran, Turkey, India, Nepal, Yemen, Taiwan, Sri Lanka, Israel, Jordan, Kuwait, Qatar.
4. Oceanian Countries: Australia, New Zealand, Fiji.
5. African Countries: South Africa, Egypt, Ethiopia, Nigeria, Kenya, Tanzania.


JACTON Products List
1. Manual Screw Jacks, Electric Screw Jacks.
2. Screw Jacks Series: JT series acme screw jacks, JTC series cubic screw jacks, JTW series machine screw jacks, JTM series worm screw jacks, JTB series ball screw jacks, JTD series cubic ball screw jacks, JSS series stainless steel screw jacks, JTS series bevel gear screw jacks, Non-standard series screw jacks.
3. Bevel Gearboxes Series: JT series bevel gearboxes, JTP series cubic bevel gearboxes, JTA series aluminum bevel gearboxes, JTH series hollow shaft bevel gearboxes, BSS series stainless steel bevel gearboxes.
4. Lifting Systems and Systems Accessories: two-jacks systems, three-jacks systems, four-jacks systems, six-jacks systems, eight-jacks systems. Accessories cover couplings, universal joints, cardan shafts, connecting shafts, electric motors, geared motors and reducers, hand wheel with crank handles, pillow block bearings, flange block bearings, rod end bearings, stop nuts, limit switches, safety nut, travel nuts, linear shafts and bearings, linear guides and bearings, telescopic spring covers, bellows boot, protective tube, trunnion adapter plates, trunnion mounting brackets, motor flanges, rotary encoders, potentiometers, frequency inverters and position indicators etc.
5. Electric Linear Actuators Series: Parallel heavy duty linear actuators, In-line heavy duty linear actuators.
6. Geared Motors and Speed Reducers Series: helical gearmotors R series, helical bevel gearmotors K series, parallel shaft helical gearmotors F series, helical worm gearmotors S series, small AC gear motor series and worm gear motor reducer series.
