High Definition P1.95 Indoor LED Digital Billboard Display Screen Panel for Store Advertising

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：1.95mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：262144 Pixels,M2
• Scanning Mode：1,32

=== Base Info ===

• Model NO.：IX-P1.95
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Alu
• Weight：24kg,M2 (Aluminium)
• Brightness：800nits-4000nits
• LED Lamps：SMD 3 in 1
• Refresh Rate：>3840Hz
• IP Rate：IP31
• Viewing Distance：2meters
• Contrast Rate：3000:1
• Voltage：AC110-240V
• PSU：5V 40A
• Driver IC：Constent Current
• Service Solution：Front
• Installation：Back Fixed
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：1000x250mm 750x250mm
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

=== Description ===
Overview Product Description

High Brightness Retail store entrance Window LED advertising Display Screen is popular for indoor advertising media, such as in airport, shopping mall, shows etc, it is light weight design, HD resolution with high contract rate, also refresh rate is good level to ensure image quality

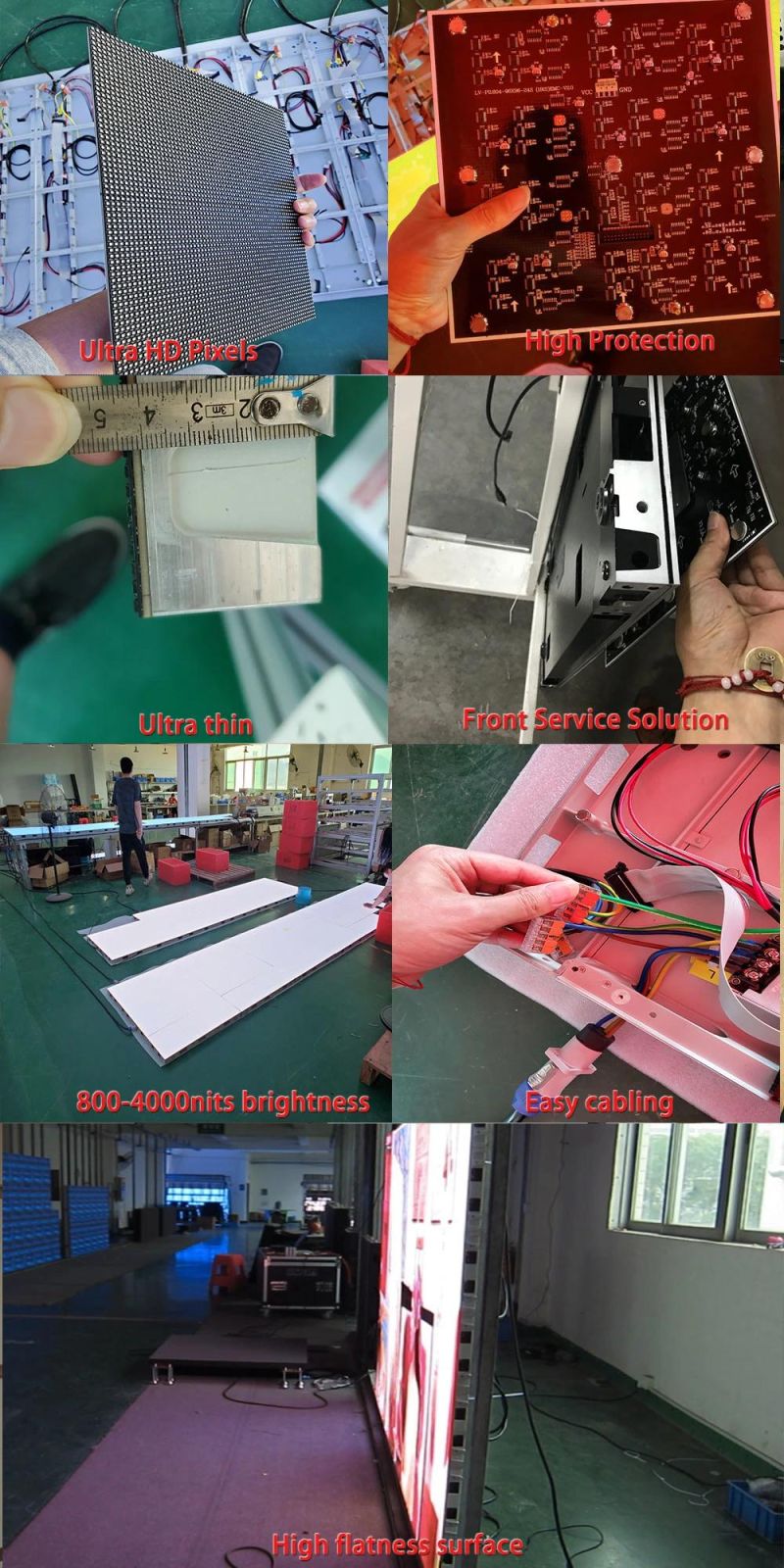

High Brightness Retail Shop entrance Window LED advertising Display Screen detail images included hardware.




All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.





Item

Pixel Pitch

1.95mm

Pixel Density(pixels/M2)

262144 pixels

Pixel Configuration

1R1G1B

LED Type

SMD 3 in 1

Module size(mm)

250x250mm

Module Resolution(pixels)

128x128 pixels

Min.Viewing Distance(m)

2meters

Brightness(nits)

800-4000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

600

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size(mm)

1000x250mm, 750x250mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.






By plywood cases, packing well and easy to load.





ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
