- Aligning:Non-Aligning Bearing
- Separated:Separated
- Feature:Low Temperature, High Temperature
- Rows Number:Single
- Raceway:Spherical Raceway
- Material:Cast Iron
=== Base Info ===
- Model NO.:UCP207-23
- Bearing Block Model:P

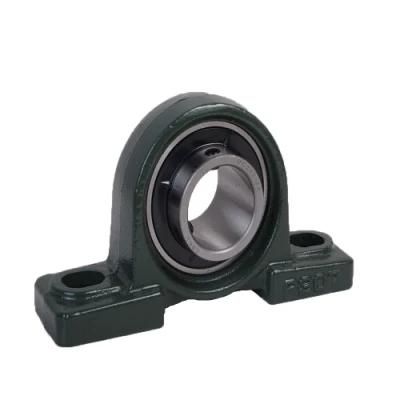

- Description:Pillow Block Bearing
- Size:Metric and Imperical Size Available.
- Type:UCP, Ucpa, Ucph, Ucpw, Ucf, Ucfa, Ucfb, Ucfc, UCFL
- Color:Green Blue or as Customer ′s Demand
- Guarantee:One Year
- Transport Package:as Customer′s Request
- Specification:depends on order
- Trademark:JPG
- Origin:Jiangsu Nanjing
- HS Code:84832000
- Production Capacity:100, 000 ,Month
=== Description ===
BearingUint No. | Shaft Dia d | Dimensinons(mm) | Bolt Used | Bearing No. | Housing No. | Housing Wt (kg) |
h | a | e | b | S2 | S1 | g | w | t | Z | Bi | n | (mm) | (in) |
(in) | (mm) |
UCP201-8 | 1/2 | | 30.2 | 127 | 95 | 38 | 19 | 13 | 14 | 62 | 2 | 51 | 31 | 12.7 | M10 | 3/8 | UC201-8 | P203 | 0.33 |
UCP202-9 | 9/16 | | UC202-9 |
UCP202-10 | 5/8 | | UC202-10 |
UCP203-11 | 11/16 | | UC203-11 |
UCP201 | | 12 | UC201 |
UCP202 | | 15 | UC202 |
UCP203 | | 17 | UC203 |
UCP204-12 | 3/4 | | 33.3 | 127 | 95 | 38 | 19 | 13 | 14 | 65 | 2 | 51 | 31 | 12.7 | M10 | 3/8 | UC204-12 | P204 | 0.46 |
UCP204 | | 20 | UC204 |
UCP205-13 | 13/16 | 25 | 36.5 | 140 | 105 | 38 | 19 | 13 | 15 | 71 | 2 | 57 | 34.1 | 14.3 | M10 | 3/8 | UC205-13 | P205 | 0.60 |
UCP205-14 | 7/8 | UC205-14 |
UCP205-15 | 15/16 | UC205-15 |
UCP205-16 | 1 | UC205-16 |
UCP205 | | UC205 |
UCP206-17 | 1-1/16 | 30 | 42.9 | 165 | 121 | 48 | 21 | 17 | 17 | 83 | 2 | 62 | 38.1 | 15.9 | M14 | 1/2 | UC206-17 | P206 | 0.97 |
UCP206-18 | 1-1/8 | UC206-18 |
UCP206-19 | 1-3/16 | UC206-19 |
UCP206-20 | 1-1/4 | UC206-20 |
UCP206 | | UC206 |
UCP207-20 | 1-1/4 | 35 | 47.6 | 167 | 127 | 48 | 21 | 17 | 18 | 93 | 3 | 72 | 42.9 | 17.5 | M14 | 1/2 | UC207-20 | P207 | 1.00 |
UCP207-21 | 1-5/16 | UC207-21 |
UCP207-22 | 1-3/8 | UC207-22 |
UCP207-23 | 1-7/16 | UC207-23 |
UCP207 | | UC207 |
UCP208-24 | 1-1/2 | 40 | 49.2 | 184 | 137 | 54 | 21 | 17 | 18 | 98 | 3 | 82 | 49.2 | 19.0 | M14 | 1/2 | UC208-24 | P208 | 1.30 |
UCP208-25 | 1-9/16 | UC208-25 |
UCP208 | | UC208 |
UCP209-26 | 1-5/8 | 45 | 54 | 190 | 146 | 54 | 21 | 17 | 20 | 106 | 3 | 82 | 49.2 | 19.0 | M14 | 1/2 | UC209-26 | P209 | 1.40 |
UCP209-27 | 1-11/16 | UC209-27 |
UCP209-28 | 1-3/4 | UC209-28 |
UCP209 | | UC209 |
UCP210-29 | 1-13/16 | 50 | 57.2 | 206 | 159 | 60 | 25 | 20 | 21 | 114 | 3 | 87 | 51.6 | 19.0 | M16 | 5/8 | UC210-29 | P210 | 1.83 |
UCP210-30 | 1-7/8 | UC210-30 |
UCP210-31 | 1-15/16 | UC210-31 |
UCP210-32 | 2 | UC210-32 |
UCP210 | | UC210 |
UCP211-32 | 2 | 55 | 63.5 | 219 | 171 | 60 | 25 | 20 | 23 | 126 | 4 | 92 | 55.6 | 22.2 | M16 | 5/8 | UC211-32 | P211 | 2.4 |
UCP211-33 | 2-1/16 | UC211-33 |
UCP211-34 | 2-1/8 | UC211-34 |
UCP211-35 | 2-3/16 | UC211-35 |
UCP211 | | UC211 |
UCP212-36 | 2-1/4 | 60 | 69.8 | 241 | 184 | 70 | 25 | 20 | 25 | 138 | 4 | 102 | 65.1 | 25.4 | M16 | 5/8 | UC212-36 | P212 | 2.8 |
UCP212-37 | 2-5/16 | UC212-37 |
UCP212-38 | 2-3/8 | UC212-38 |
UCP212-39 | 2-7/16 | UC212-39 |
UCP212 | | UC212 |
UCP213-40 | 2-1/2 | 65 | 76.2 | 265 | 203 | 70 | 29 | 25 | 27 | 151 | 4 | 107 | 65.1 | 25.4 | M20 | 3/4 | UC213-40 | P213 | 3.5 |
UCP213-41 | 2-9/16 | UC213-41 |
UCP213 | | UC213 |
UCP214-42 | 2-5/8 | 70 | 79.4 | 266 | 210 | 72 | 31 | 25 | 27 | 157 | | | 74.6 | 30.2 | M20 | 3/4 | UC214-42 | P214 | 4.45 |
UCP214-43 | 2-11/16 | UC214-43 |
UCP214-44 | 2-3/4 | UC214-44 |
UCP214 | | UC214 |
UCP215-45 | 2-13/16 | 75 | 82.6 | 275 | 217 | 74 | 31 | 25 | 28 | 163 | | | 77.8 | 33.3 | M20 | 3/4 | UC215-45 | P215 | 4.9 |
UCP215-46 | 2-7/8 | UC215-46 |
UCP215-47 | 2-15/16 | UC215-47 |
UCP215-48 | 3 | UC215-48 |
UCP215 | | UC215 |
UCP216-50 | 3-1/8 | 80 | 88.9 | 292 | 232 | 78 | 31 | 25 | 30 | 175 | | | 82.6 | 33.3 | M20 | 3/4 | UC216-50 | P216 | 5.8 |
UCP216 | | UC216 |
UCP217-52 | 3-1/4 | 85 | 95.2 | 310 | 247 | 83 | 31 | 25 | 32 | 187 | | | 85.7 | 34.1 | M20 | 3/4 | UC217-52 | P217 | 6.9 |
UCP217 | | UC217 |
UCP218-56 | 3-1/2 | 90 | 101.6 | 327 | 262 | 88 | 33 | 27 | 33 | 200 | | | 96.0 | 39.7 | M22 | 7/8 | UC218-56 | P218 | 8.10 |
Pillow blocks, the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustment during mounting.Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.
Check out our selection of high quality pillow block bearings listed below. We are always updating and adding sizes and styles. So be sure to check the pillow block bearing page often. Also check out our insert bearingpage for the inserts that fit in our pillow blocks, two bolt flange bearings and four bolt flange bearings.
Model | UCP UCF UCT UCFL NAFU UCFC UCPA SER SA SB |
Greese/Oil | As you requirement, such as SRL ,PS2, Alvania R12 and so on. |
Vibration | Z1/V1,Z2/V2,Z3/V3 |
Hardness | HRC60~HRC63 |
Bearing type | GCR15 Material (Chrome Steel) self-aligning ball bearings |
Quality level | Reach the same level as Japanes and European bearings, P0 P2 P4 P5 P6.. |
Feature | low voice,high speed,long life |
Application | Pharmaceutical equipment, medical equipment, textile machinery and accessories, knitting machines, weaving machines, spinning equipment, textile accessories, non-woven fabric machinery, textile equipment, machinery, metal, mold, automotive electronics, electrical, instrumentation, military, aviation aerospace, plastics and rubber industry, medical and other fields. |
Package | 1,barreled package+outer carton+pallets 2,single box+outer carton+pallets 3,tube package+middle box+outer carton+pallets 4,According to your's requirement |
Details | We have complete process for the production and quality assurance to make sure our products can meet your requirement. 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging |
Perfect precision testing equipment ,fullly meet the requirements of bearing R&D and manufacturing .Strict and rigourour quality inspectors strictly abide by product quality standards and strictly control the whole process of products from test to prodution.
High -ending tessing equipment ,professional operation technicians and rigorous procrssing procedures an the guarantee of quality
with the unremitting purcuit of perfec products ,the company has established the industry's top testing laboratory ,sound quality control rules,and a well -trained professional testing team.Every process from raw materials of finished products is sticklty tested to ensure high quality products. Delivere to the customer .
Drawing
Application :
Bearing for Gear Reducer
Bearing for Fitness Equipment
Bearings for Surveillance
Bearing for Mainipulator
Bearing for floor sweeper
