P2.5 High Definition Indoor Full Color Video Soft/Flexible/Curved LED Display

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2.5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000dots,Sqm
• Scanning Mode：1,32 Constant Current Drive

=== Base Info ===

• Model NO.：RS-P2.5
• System Operating Platform：Win 98,2000,XP,Vista
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP30
• Certification：CE, RoHS, UL, CCC, ETL
• LED Type：SMD2020
• Module Size：320X160mm
• Cabinet Size：Customizable
• Brightness：1200CD,Sqm
• Grey Scale：14bit
• Refresh Rate：1920Hz
• IP Grade：IP30
• Controller：Synchronization with PC
• Maintenance：Rear Service
• Input Voltage：AC 110-240V
• Contrast Ratio：3500:1
• Max. Consumption：700W,Sqm
• Viewing Angle：H:160 , V: 160
• Working Humidity：10~90%Rh
• Transport Package：Wooden Case
• Specification：Customizable
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===

No.

PARAMETER

SPECIFICATION

1

Pixel Pitch(mm)

2.5

2

Pixel Density

160000/sqm

3

LED Type

SMD2020

4

LED Wave Length(nm)

R:620-625/G:515-520/B:470-475

5

LED Luminous Intensity(mcd)

R:210~370/G:420~650/B:85~110

6

Viewing Angle

H:160°/ V:160°

7

Bending radian

Centre bend≤120°/Opp angle bend≤120°

8

Brightness

1200cd/sqm

9

Drive Method

1/32

10

Signal interface

HUB75

11

Color Depth

4096(14bits)

12

Refresh Rate(Hz)

≥1920

13

Frame Rate(Hz)

≥60

14

Contrast ratio

3500:1

15

Module Size(mm)

320*160

16

Cabinet Size (mm)

Customizable

17

Power Supply

5V 40A

18

Voltage(V)

AC 110~240V

19

Avg. Power Consumption

350W/sqm

20

Max. Power Consumption

700W/sqm

21

Service Access

Rear service

22

IP Grade

IP30

23

Operating Temp/Humidity

-20ºC~50ºC, 10~90%RH

24

Storage Temp/Humidity

-40ºC~60ºC, 10~90%RH

25

Lifetime(Normal Temp)

≥100000H

26

System Controlle

Synchronization with PC

27

Compliant Standard

CCC / CE / RoHS

Package:




Certificates:

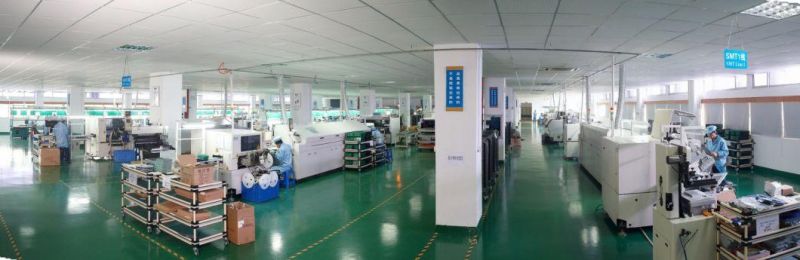

Our Corporate:

Shenzhen Chuangkaiguang Co., LTD (known as CKGLED), a professional LED display factory who specializes in R&D / DESIGN / PRODUCTION /

SALES, was established in 2012 with a registered capital of more than $ 12 Million. CKGLED product ranks are indoor/outdoor rental led displays,

Ultra small pixel pitch led displays, indoor/outdoor fixed installation led displays, sports /stadium led displays, traffic led displays etc.

The company has developed a long-term development strategy plan, adhere to the "Thanksgiving, integrity, innovation, focus" business management

philosophy, to create the world's largest LED photoelectric display products integrated manufacturing service provider for the goal, we work together

for common developmen.

Package:

For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing

For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing

One wooden case including 2 cabinets, one flight case including 6 cabinets

Shippment

By air or sea, FOB shenzhen

UPS/DHL/FedEx/Express(door to door)and so on

Delivery time

Within 15 days counting from 30% prepayment arrived at CKGLED account.

Payment term>>>

T/T(30% deposit, the remained 70% payment made before factory shipment )

Our service:

Pre-Sales  Service
Provide details about the production procedure
Assign engineers for installation and testing

Sales  Service
Customized solution designs
Product rendering and steel structure drawing
CKGLED's successful project examples and visits to our production and R&D base

After-Sales  Service

Two-year quality warranty with lifelong maintenance.

Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and

maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.

Spare parts: necessary spare parts are provided together with products to customers.

Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.

Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
Site instruction service of installation is available.

Free on-site service for hardware related issues.
