P8 Ce Outdoor LED Advertising Perimeter Display for Football Court

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：8mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：300W,Sqm

=== Base Info ===

• Model NO.：8mm
• Pixel Density：15625dots,Sqm
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Module Size：256X128mm
• Module Resolution：32X16dots
• Cabinet Size：1024X896mm
• Cabinet Resolution：128X112dots
• Screen Brightness：6000nits
• Protection Grade：IP65
• Viewing Angle：V:140° , H:140°
• Controller：Nova
• Maintenance：Rear , Front Service
• Compliance：Ce
• Transport Package：Plywood Case
• Specification：1024x768mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===

Basic Info.

Model NO. 8mm Pixel Density 15625dots/Sqm Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Module Size 256X128mm Module Resolution 32X16dots Cabinet Size 1024X896mm Cabinet Resolution 128X112dots Screen Brightness 6000nits Protection Grade IP65 Viewing Angle V:140° / H:140° Controller Nova Maintenance Rear / Front Service Compliance Ce Transport Package Plywood Case Specification 1024x768mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

S SERIES PRODUCE FEATURES:

 .   High brightness which is adjustable to meet the needs of various working environment sufficiently.,

 ·  Angle adjustable: Wide viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

 ·  All raw materials go through the strictly testing of high/low temperature and high  humidity, anti-ultraviolet rays, anti-corrosion.

 ·  IP65 protection grade, durable nature enables the screen to work in all outdoor  weather conditions.

 ·  Applications: Especially applicable for football stadium / cricket stadium and other  sports fields.

.   Long life span: upto 100,000hours.



PRODUCT SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model:	S08
2	Pixel Pitch (mm)	8
3	Physical Density (dot/m2)	15625
4	LED Configuration	1R1G1B
5	LED Type	SMD3535
6	Module Size (mm x mm)	256x128
7	Module Resolution (PX x PX)	32x16
8	Module Power Consumption (W)	29
9	Drive Mode	1/4 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	120
11	Vertical Viewing Angle (Deg)	120
12	Brightness (cd/m2)	6000
13	Grey Scale	16bit
14	Refresh Rate (Hz)	1920
15	Cabinet Resolution (PX x PX)	128x112
16	Cabinet Max. Power Consumption (W)	820
17	Cabinet Ave. Power Consumption (W)	275
18	Cabinet Size (mm x mm)	1024x896
19	Cabinet Weight (Kg)	55
20	Cabinet Thickness (mm)	150
21	Cabinet Material	Steel/Aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP65

26	Working Environment	Outdoor
27	Working Temperature (ºC)	"-30°- +60°
28	Operation humidity (RH)	10%-95%
29	Certificates	CCC ,CE,RoHS
30	Protection Level	IP65

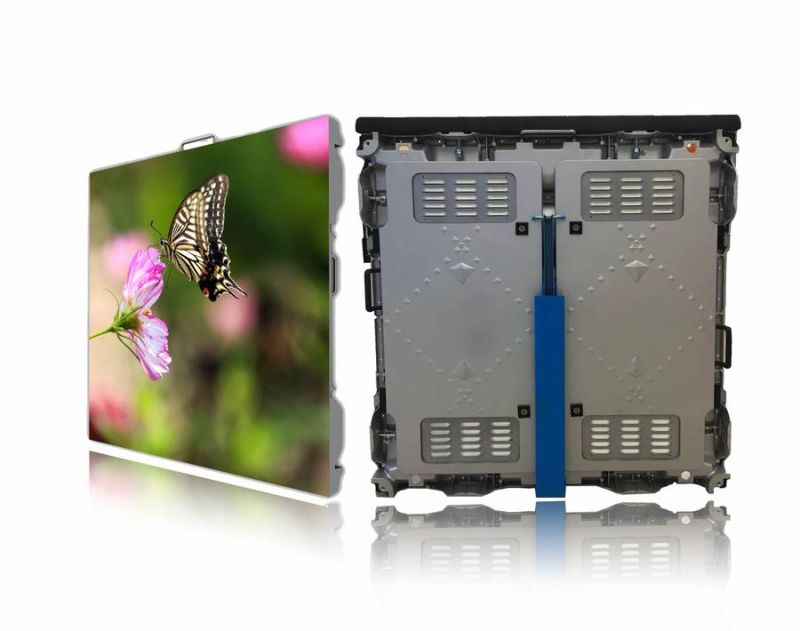

PRODUCT DETAILS:
