0.3 Inch Single Digit Diamond-Cut 7 Segment LED Display with RoHS From Expert Manufacturer

• Tube Chip Color：Single Color
• Display Function：Numbers and Some Alphabets
• Pixel Pitch：1-10mm
• Pixel Configuration：7 Segments and Dp
• Pixel Density：7 Segments,PC
• Scanning Mode：Static Scan

=== Base Info ===

• Model NO.：LD3014A,B
• System Operating Platform：Win
• Display Type：Segment LED Display
• Application：Shopping Guide, Meters and Instruments
• IP Rating：IP0
• Certification：RoHS, Reach
• Outline Dimensions：7.60X12.70X7.00mm
• Digit Height：0.3 Inch(7.62mm)
• Emitting Color：Single Color
• Dp Number：1PC
• Digit Number：1 Digit
• Chip Matrial：4-Element
• Transport Package：EPE Foam and Carton
• Specification：RoHS, REACH
• Trademark：LIGHTKEY
• Origin：China
• HS Code：8531200000
• Production Capacity：1000000PCS,Year

=== Description ===
Overview Product Name

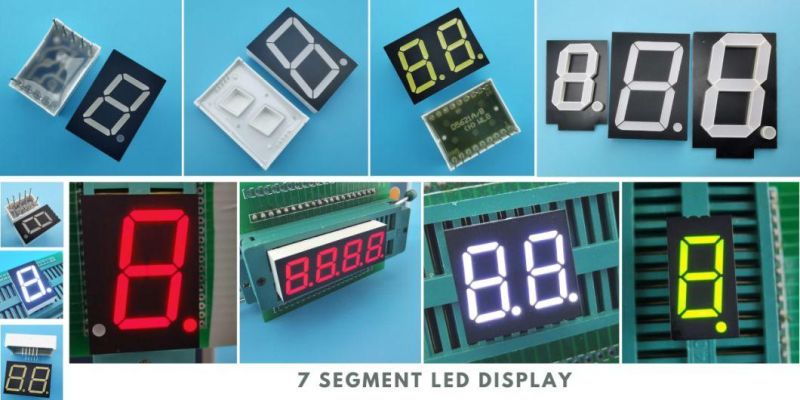

Detailed PhotosFeatures

Available Options



Selection Guide



Single Digit 7 Segment LED Display, Digit Height: 7.8mm(0.30inch), External Dimensions: 7.60x12.70x7.00mm (L x W x H)Part No.ChipIv@IF=20mAIv@IF=20mACommon
CathodeCommon
AnodeMaterialColorWLDOne SegOne DPMin.Typ.Min.Typ. LD3014AR LD3014BRGaAlAsSuper Red640810810 LD3014AD LD3014BDGaAlAsHi-Red64018251825 LD3014AO LD3014BOGaAsPOrange6257979 LD3014AY LD3014BYGaAsPYellow588810810 LD3014AG LD3014BGGaPGreen5687979 LD3014AUR LD3014BURAlGaInPUltra Red64030453045 LD3014AUO LD3014BUOAlGaInPUltra Orange62545604560 LD3014AUA LD3014BUAAlGaInPUltra Amber60530453045 LD3014AUY LD3014BUYAlGaInPUltra Yellow59530453045 LD3014AUG LD3014BUGAlGaInPUltra Green57330453045 LD3014APG LD3014BPGInGaNPure Green525120300120300 LD3014AUB LD3014BUBInGaNUltra Blue47030453045 LD3014AUW LD3014BUWInGaNUltra White100120100120Unit:nmmcdmcdmcdmcd

 Application

https://lightkeyled.en.made-in-china.com/product-group/coWmkijOEUVP/7-Segment-LED-Display-catalog-1.html

Factory Overview

Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).

2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
