Best Quality SMD2727 P5 High Definition LED Sign Board

• Tube Chip Color：Full Color
• IP Rating：IP67
• Pixel Pitch：5mm
• Pixel Configuration：1r1g1b,SMD2727
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Model NO.：Outdoor P5 screen
• Pixel Density：40000dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, CCC
• Product Name：Outdoor LED Display P5
• Driver IC：Mbi5124 or Icn 2038s
• Bightness CD/Sqm：6000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500K
• Transport Package：The Factory Packaging
• Specification：160*160mm or 320MM *160MM
• Trademark：hongking
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

=== Description ===
Technical  SpecificationsNOProduct nameoutdoor SMD  P5  led display1Pixel Pitch(mm)5mm2Pixel configuration1R1G1B/SMD 27273Pixel density10000dots/m24Brightness 6000cd/m25Module size(W*H)160mm * 160mm6Module Resolution (W*H)32 dots x 32dots7Module weight450g8Cabinet size (W*H)960mm×960mm9Drive ICMBI512410Drive mode1/8scan11Viewing Angle(V/H)110ºC12Grey Scale65536 degree13Life time>100,000 Hours (50%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power Consumption Average:220w/m218Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1200HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating Platform Windows 7 / windows 8 /8.1 / windows 10

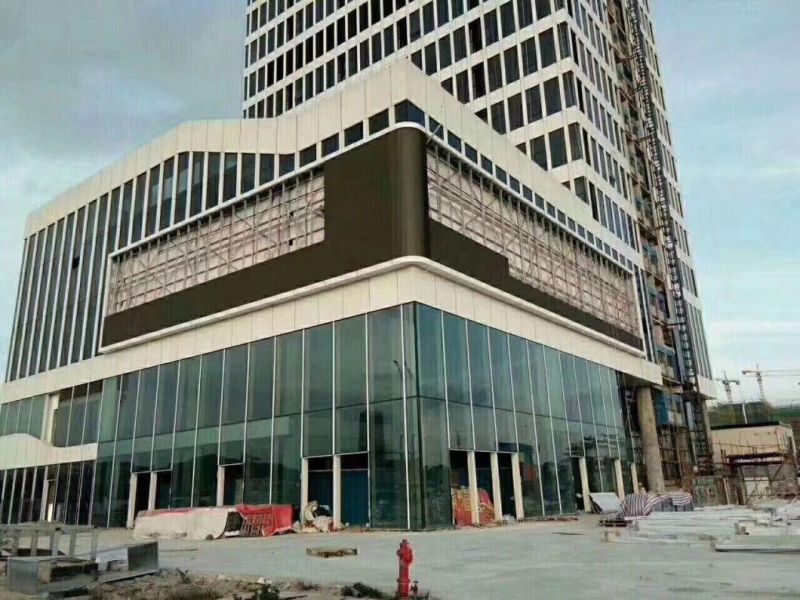

Product Application Cases:
hongking  always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.









Product Categories


company workshop :


packing :Wooden Case, Flight Case, and Carton



Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
 1. Q: Can I get some samples?
     A: Yes,sample order is available for quality check and market test.
 2. Q: What's your payment term? How long is your delivery time ?
     A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
 At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
    A:  Non-artificial damage,  2-3 years warranty
4. Q: Do you have the products in stock?
    A: Yes ,of course
5. Q: Freight Cost?
    A: The shipping cost depends on different weight;
         We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
    A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
    A: We treasure every customer that shake hands with our Hongking.
        We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
    A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
