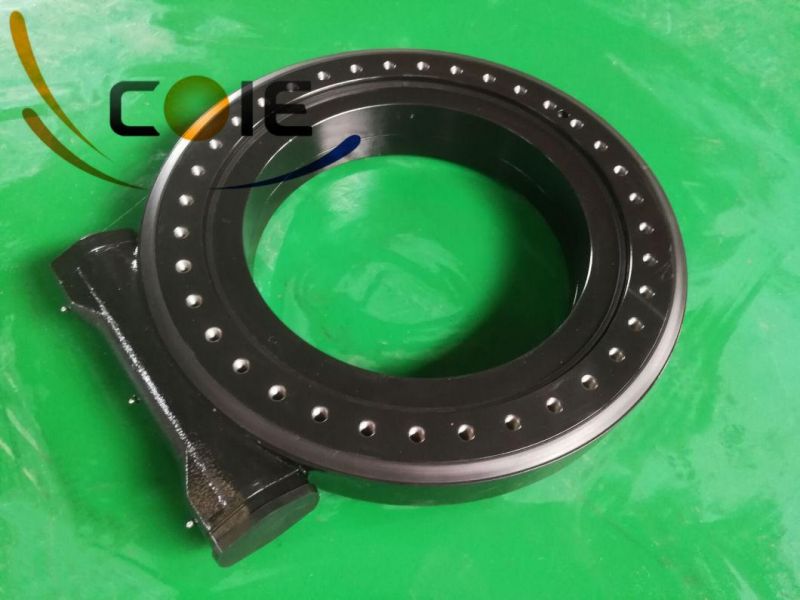

Sc25 Slewing Ring Gearbox for Excavator and Crane

• Material：42CrMo
• Holding Torque：158.3kn.M
• Tilting Moment Torque：271kn.M
• Output Torque：30kn,M
• Output Speed：1.5rpm
• Gear Ratio：102:1

=== Base Info ===

• Model NO.：SC25-150-25RH
• IP Class：IP65
• Static Axial Load：2360kn
• Static Radial Laod：945kn
• Efficiency：40%
• Transport Package：Wooden Case
• Specification：SC25-150-25RH
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：5000PCS,Month

=== Description ===

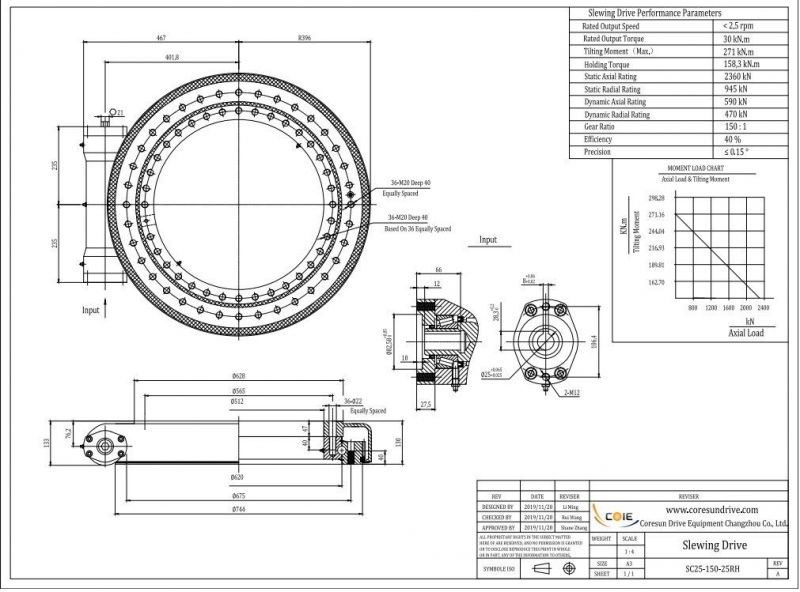

Model Slewing BearingSC25BrandCorresun DriveHolding Torque158.3kN.mTilting Moment Torque271kN.mSelf-lockingYesGear Ratio150:1Outer Dia.675mmInner Dia.565mmRated Output Speed1.5rpmPrecison0.17°Static Axial Rating2360kNStatic Radial Rating945kN



Slewing drive is consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.


Coresun Drive Slewing Drive, Slewing Ring Advantage

1. Coresun Drive Slewing drive designed with hourglass worm shaft which provides more tooth contact and higher torque.

2. High transmission efficiency and accurate tracking

3. Easy installation and maintenance

4.Special heat treatment,corrosion resistance

5.We use framework oil sealing, so our slewing drive has higher dustproof and waterproof

6.Coresun Drive use 8 bolts on worm shaft, so it is much stronger

Coresun is your reliable supplier, even more your sincere partner!

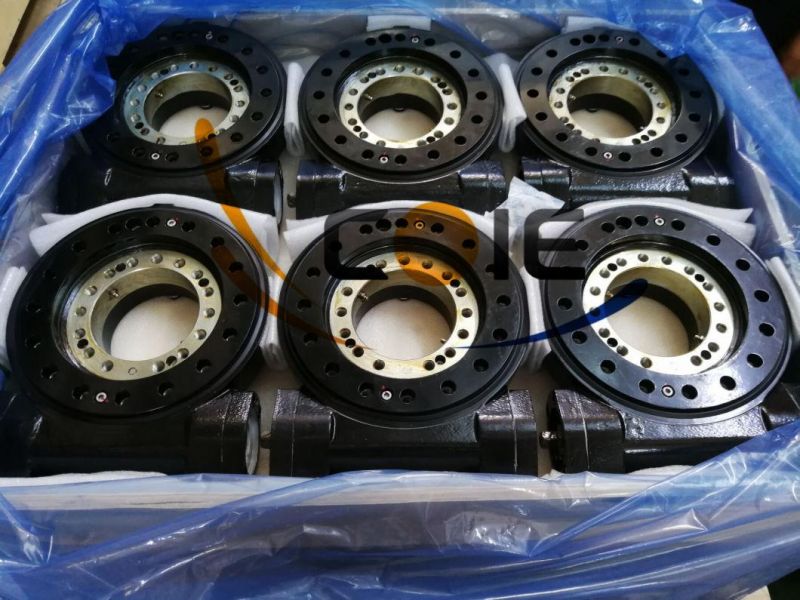

Coresun Drive Slewing Bearing Production Photo

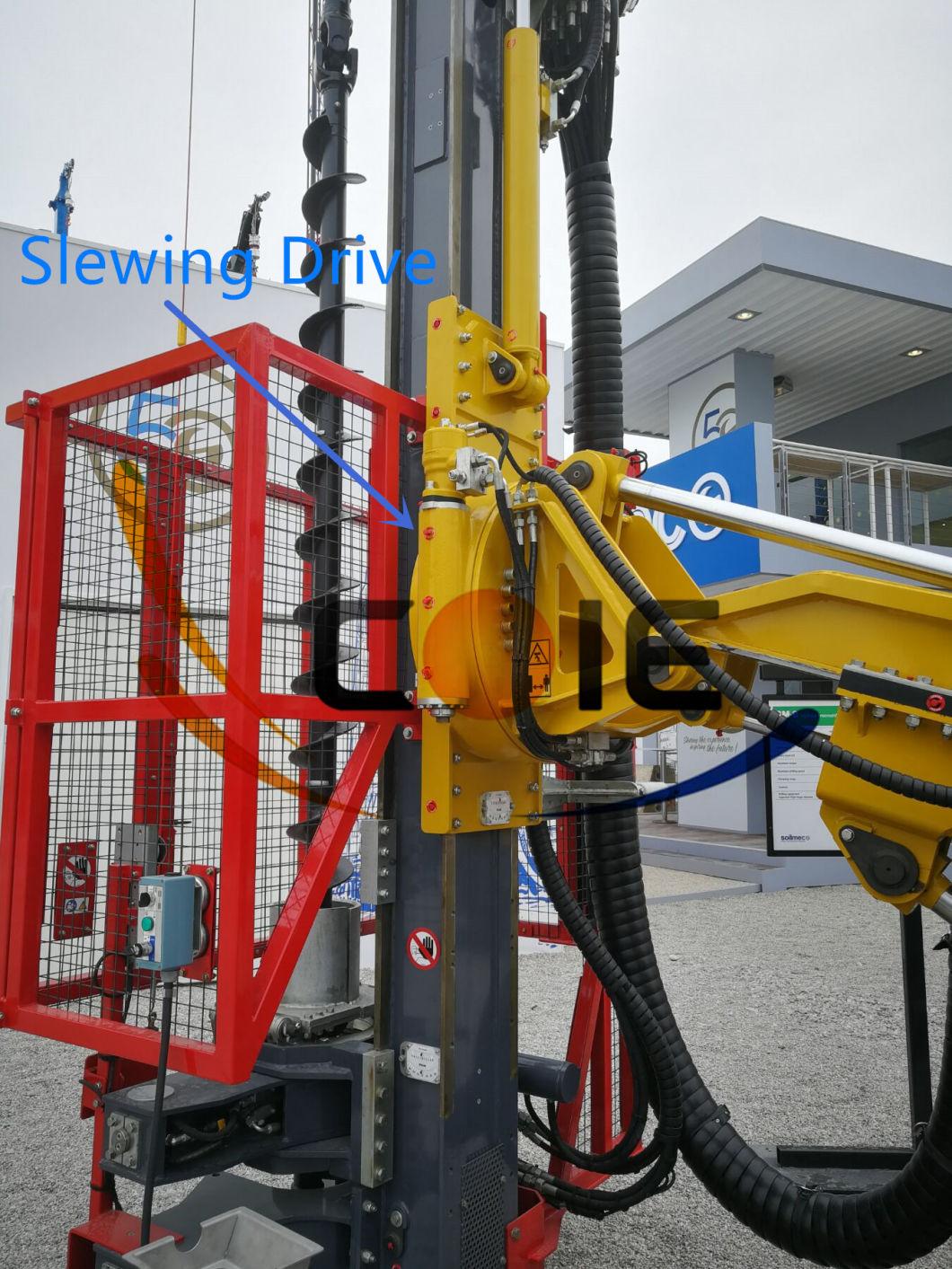

SC25 Slewing Drive Slewing Bearing Worm Gear Application





CONTACT US

It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
