Professional Manufacturer Large Spray Paint Booth for Truck/Bus

• After-sales Service：1 Years
• Warranty：1 Years
• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Longxiang

=== Base Info ===

• Model NO.：LX-18-50
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Size：18144*6896*5600mm(L*W*H)
• Inside Size：18000*5000*5000mm(L*W*H)
• Entrance Door：4-Folds 4000*4500mm(W*H)
• Emergency Door：800*2000mm(W*H)
• Wall Panel：50,75mm EPS
• Fan System：Centrifugal Fan
• Heating System：Diesel,Gas,Electrical Heating
• Burner：Riello Burner
• Lighting System：LED Lighting
• Color：White,Orange,Red,Blue
• Total Power：75.5kw
• Voltage/Frequency：380V,50Hz,3 Phase
• Filter：Floor Filter,Pre-Filter,Ceiling Filter
• Usage：Bus Painting Baking
• Product Name：Spray Booth
• Transport Package：Shipping
• Specification：18000*5000*5000mm(L*W*H)
• Trademark：longxiang brand
• Origin：China
• HS Code：8419899090
• Production Capacity：30 Sets,Months

=== Description ===

Basic Info.

Model NO. LX-18-50 Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Size 18144*6896*5600mm(L*W*H) Inside Size 18000*5000*5000mm(L*W*H) Entrance Door 4-Folds 4000*4500mm(W*H) Emergency Door 800*2000mm(W*H) Wall Panel 50/75mm EPS Fan System Centrifugal Fan Heating System Diesel/Gas/Electrical Heating Burner Riello Burner Lighting System LED Lighting Color White/Orange/Red/Blue Total Power 75.5kw Voltage/Frequency 380V,50Hz,3 Phase Filter Floor Filter/Pre-Filter/Ceiling Filter Usage Bus Painting Baking Product Name Spray Booth Transport Package Shipping Specification 18000*5000*5000mm(L*W*H) Trademark longxiang brand Origin China HS Code 8419899090 Production Capacity 30 Sets/Months

Product Description

CE China Paint Booth/Spray Booth/Painting Room/Car Baking Oven/Auto Oven Spray Booth
/Automotive Spray Booth/Painting Booth/Machine/Equipment






1.Customized Room body Color & Size.

2.Original Italian RIELLO Burner, Hot wind recycling system with SUS304 heat exchanger.

3. "BELIMO" automatic electric & pneumatic damper.

4. Unique big area air filtering system & filtering rate reaches 98%.

5. Big air capacity & low noise centrifugal blower fan adopts Siemens Technology.

6. LED lighting system with high illumination and long using life.

7. Insulation material wall panels using life up to 20 years.




Inside Dimension	18000*5000*5000mm(L*W*H)
Outside Dimension	18144*6896*5600mm(L*W*H)
Wall Panel	Profiled bar beams in the roof to strengthen the room body, wall panel thickness:70mm,width:1150mm,tongue and groove interlack structure,with polystyrene(EPS) insulation inside, colour:white
Doors	Main door:folding door, 4-folds 4000*4500mm(W*H), with galvanized steel frame, with polystyrene(EPS) insulation inside, colour:blue Escape door:2 units, 800*2000mm(W*H), colour:white
Basement	Without basement,2 rows of pits in the ground for exhaust air,dimension of each pit is 16100*760mm(L*W),with galvanized grilles made by twisted steel and flat bar above

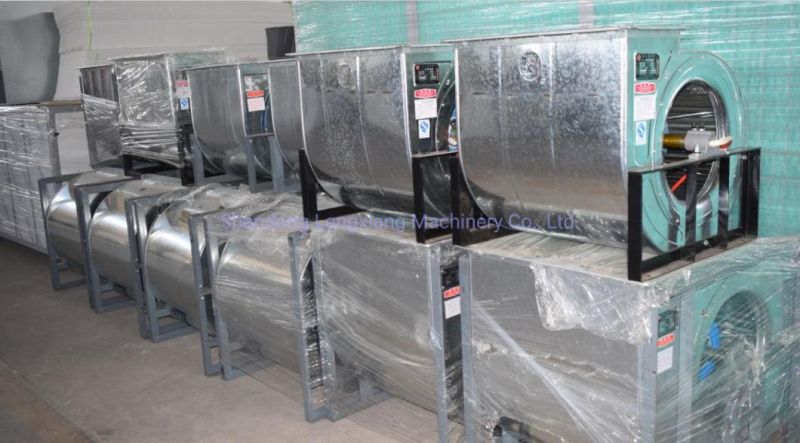

Intake air system	6*5.5KW double-intake centrifugal fans for intake air,model is YDW4.5S,total air capacity is 93000m³/h
Exhaust air system	3*11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive,model TAE-630H,air capacity is 84000m³/h
Damper actuates	Equip pneumatic damper actuates from spraying to baking cycle,manual damper for exhaust air
Heating system	3 units RIELLO RG5S diesel burner,stainless steel heat exchanger. Max. heating productivity:780000Kcal/h.Max.working temperature:80ºC
Filter system	Pre-filter,ceiling filter,exhaust fiberglass filter,activated carbon filter
Filtering area	75m2
Lighting system	Ceiling lights:24units*4pcs=96pcs*36W Side lights: 28units*4pcs=112pcs*36W, up and down interleaving installation,  with electronic ballasts
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter,temperature limit controller,pressure gauge,exhaust reduction voltage motor start
Total power	75.5KW

In order to promote dust free, appropriate temperature and wind speed for customers, LONGXIANG spray booth has following advantages:

 Ventilation  of the spray booth

LONGXIANG spray booth has several ventilation systems which provide better painting conditions. All the filter systems and air exhaust systems underneath create a efficiently vertical air flow; and this air flow distribute inside of the booth evenly; then this air flow make overspray removing away from the vehicle immediately and completely.



Air recirculation on baking model
100% of the air produced by the fan is transported into LONGXIANG spray booth during the baking model;  and only 15%-20% is expelled outside which means the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.

The inner temperature of the LONGXIANG spray booth raises rapidly; Then the heating system will power off at once when it reaches at baking temperature, this will save more energy.



Lighting

The lighting system is provided by four*16W light fixed in the ceiling panels and side walls. They are sealed with 5mm tempered safety glass. LONGXIANG spray booth lighting system is able to supply enough lighting with lower energy consume safely.

Filters
The filtering system is made up by high-efficiency filters. The filers hold higher dust retention capacity and lower resistance to the air passage. The long life designing reduces frequency of replacement, which is contributing to reductions in running costs.


Warranty

Our equipments except quick-wear-parts are guaranteed for 12 months from the date of receipt, and the filters and lamps are quick-wear-parts.

 Why Choose LONGXIANG spray booth?

1. Verified 10 years original factory, covers more than 28,000 owned built square meters.

2. Quality first and service higher are the principle for LONGXIANG members. Supporting higher quality equipments is the only purpose for LONGXIANG .

3. We own product showroom in factory and apply 24h-visiting our factory at any time.

4. Professional engineer and technician team guarantee wonderful product structure, design and layout.

5. With excellent attitude and service, our experienced export team members provide suitable solution for your own standard or customized goods.

6. Powder coated parts are widely used with our products such as beams, frames, cabinets and basement etc; this will help to prolong service life.

7. High quality materials, appropriate facilities, strictly procedure controlling and skilled workers can help to make sure higher quality products.

9. Specially verified by CE, SGS, ISO and other certificates, which help LONGXIANG products to get a higher level.



Certifications







Customers/exhibiton shows



Packing & Shipping



Delivery Details: Usually we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.

Packing Details:Standard exportation packing with polyfoam / wooden box / carton.
