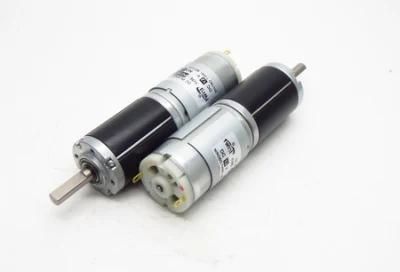

Low Noise High Preformance 28mm DC Motor for Solar Energy

• Application：Motor, Motorcycle, Machinery, Toy, Agricultural Machinery, Car
• Function：Distribution Power, Change Drive Torque, Speed Reduction
• Layout：Cycloidal
• Hardness：Hardened Tooth Surface
• Installation：Horizontal Type
• Step：Single-Step

=== Base Info ===

• Model NO.：PG28395129000-462K
• Type：Planetary Gear Box
• Weight：15kg
• Transport Package：Carton+ EVA Foam
• Specification：75X75X25
• Trademark：customized
• Origin：Zhejiang, China
• HS Code：850110

=== Description ===
An exact model of gearbox and motor combinationProduct seiresPG28seriesAn exact Model NO.PG28395129000-462kMotor Voltage(VDC)12Motor no load speed(rpm)9000Gearbox reduction ratio462Gearmotor no load current(A)<1.200Gearmotor no load speed(rpm)19.5+/-10%Gearmotor rated load torque(kgf.cm)33.6Gearmotor rated current(A)<6.500Gearmotor rated load speed(rpm)16.9+/-10%Noise (DB)<60DB Lifetime1000+ hours (varies by application)Rotation CW/CCW reversible



Workshop:




Packing:







Out team:


Shippment:









Contact information:

Name: Amy

Tell: 0086 -0574 -83011098-8004



FAQ:

Q:1.What kind of motors you can provide?

A: For now, we mainly provide planetary gear box; dc motors (including brush and brushless) with diameter range in 16~60mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 30-35 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
