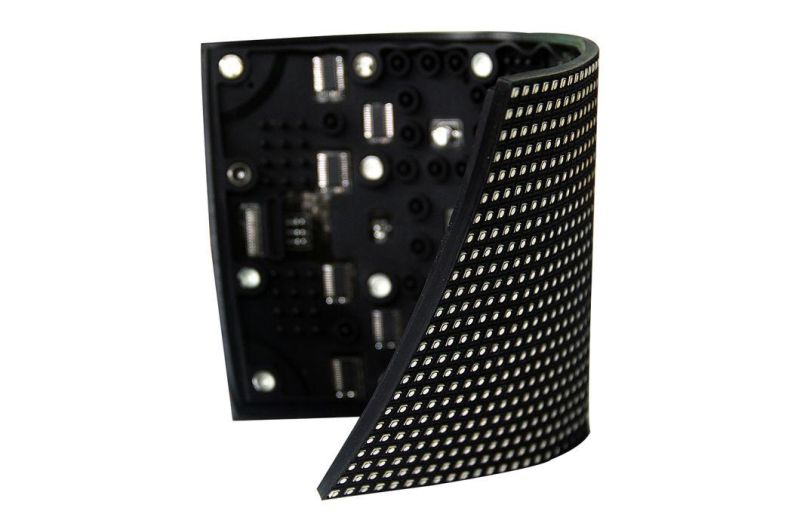

SMD Full Color Indoor Flexible LED Display Curved Soft Modules

• Display Function：Video Display
• Pixel Pitch：2.5mm

=== Base Info ===

• Model NO.：BS-2.5
• Pixel Configuration：1R,1G,1B
• Pixel Density：160,000pixels,M2
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP40
• Certification：CE, RoHS, UL, CCC, ETL, EMC
• LED Type：SMD 2121
• Refresh Rate：>1920 Hz
• Processing：16 Bits
• Colours：281 Trillion
• Brightness：>1200 Nits
• Lifetime：100,000 Hours
• Weight：8.2kg,M2
• Servicing：Front
• Transport Package：Wooden Crate or Flight Case
• Origin：China
• HS Code：8528591090
• Production Capacity：6000m2,Month
• Package size per unit product：24.00cm * 12.00cm * 2.00cm
• Gross weight per unit product：5.000kg

=== Description ===

Basic Info.

Model NO. BS-2.5 Pixel Configuration 1R,1G,1B Pixel Density 160,000pixels/M2 System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP40 Certification CE, RoHS, UL, CCC, ETL, EMC LED Type SMD 2121 Refresh Rate >1920 Hz Processing 16 Bits Colours 281 Trillion Brightness >1200 Nits Lifetime 100,000 Hours Weight 8.2kg/M2 Servicing Front Transport Package Wooden Crate or Flight Case Origin China HS Code 8528591090 Production Capacity 6000m2/Month

Packaging & Delivery

Package size per unit product 24.00cm * 12.00cm * 2.00cm Gross weight per unit product 5.000kg

Product Description

Parameters:

	BS-2.5
Physical Pitch	2.5 mm
Pixel Configuration	SMD 2121
Pixel Density	160,000 pixels/m²
Module Dimensions (mm)	240*120
Panel Dimensions (mm)	customized
Physical Resolution of Module (W*H)	96*48
Weight	8.2 kg/m²
Processing	16 bits
Colours	281 trillion
Contrast Ratio	4,000:1
Average Power Consumption	9 W
Brightness	12 W
Refresh Rate	>1,920 Hz
Driving Method	1/40
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Expected Lifetime	100,00 Hrs
Servicing	Front
IP Rating (Front/Rear)	IP 40

Feature

1.Soft PCB and rubber material

2.Magnetic connection for easy maintenance

3.Integrated SMD, IC, Circuit for easy maintenance

3.5mm thickness, space efficiency

4.Durable soft rubber module, anti-static electric

5.0.18kg per module, shipping cost and installation cost saving


 6.Customized pixel itches available for variable installation

 7.Fanless design



Services

1) We can offer customization service for customized products and can provide onsite installation and testing service.

2) We provide 2 years warranty and free repair service for our products sold.

3) We also provide free training to customers' engineer.

4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.

5) At the same time, before leaving the factory,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.





Tips

1) Payment: We accept the L/C, T/T, Western Union.

2) Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

3) Package: We usually pack the product in a wooden box or flight case.
