IP65 8W Solar PV LED Street Light with Integrated Lithium Battery

• Light Source：LED Lamp
• Lamp Body Material：Aluminum Alloy
• Light Type：Solar
• Color Temperature：Pure White
• Power：6W-10W
• Illumination Time：8h

=== Base Info ===

• Model NO.：SNSTY-208
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product/Packing Size：515*320*52mm , 530*390*140mm
• Product/Packing Weight：5.5kg,6.5kg
• Carton Size：560*W570*H410mm
• Qty/CTN：4 Sets,CTN
• Gw for Carton：27kg
• Loading Qty for 20gp：800PCS
• Loading Qty for 40gp：1600PCS
• Product Name：IP65 8W Solar PV LED Street Light
• Transport Package：Strong Carton
• Specification：8W LED 25W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

=== Description ===

Basic Info.

Model NO. SNSTY-208 Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product/Packing Size 515*320*52mm / 530*390*140mm Product/Packing Weight 5.5kg/6.5kg Carton Size 560*W570*H410mm Qty/CTN 4 Sets/CTN Gw for Carton 27kg Loading Qty for 20gp 800PCS Loading Qty for 40gp 1600PCS Product Name IP65 8W Solar PV LED Street Light Transport Package Strong Carton Specification 8W LED 25W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

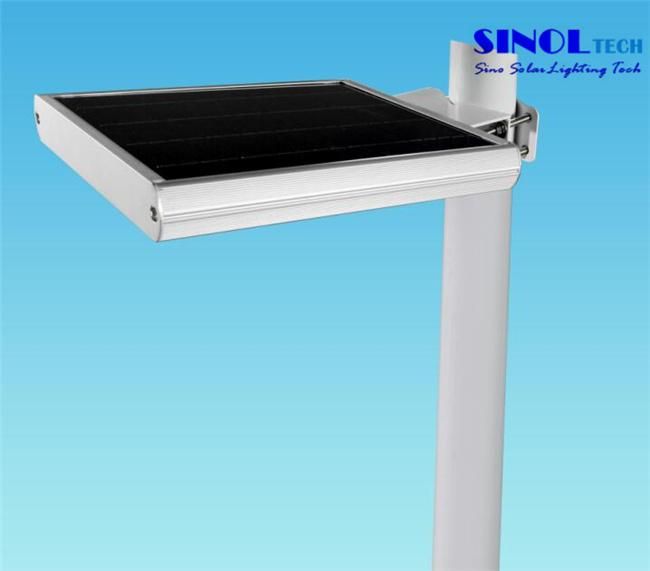

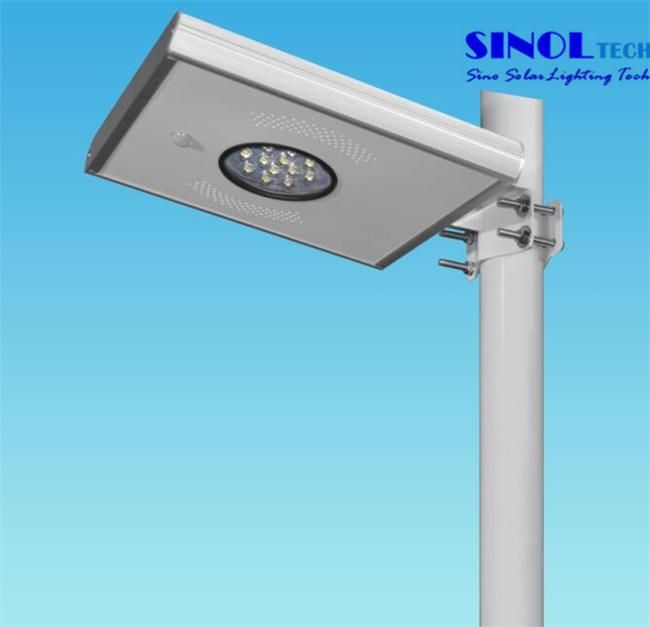

IP65 8W Solar PV LED Street Light with integrated lithium battery

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

---Purpose:

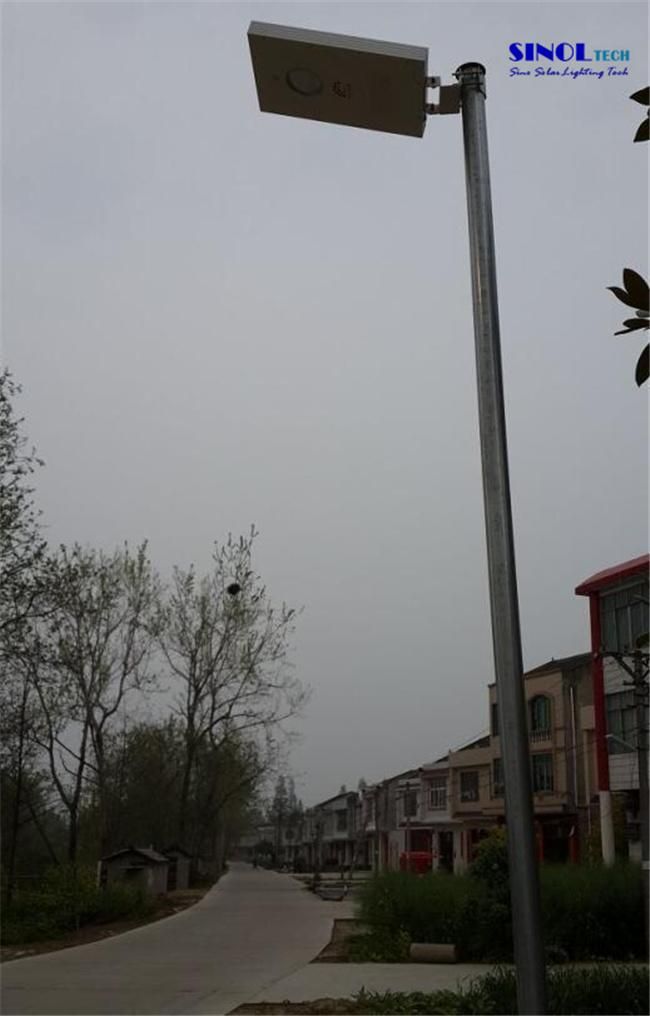

To be installed in the garden, residential area, courtyard, road, mine area or Parking area or provide the light in roads where it's necessary, the battery provide The energy for lighting, and the solar panel charge for the battery.

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system) and the light pole.

Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary.

---Advantage:
1) Integrity design, no calbing, easy to install
Suitable for any kinds of pole material, such as iron, wood, bamboo, plastic, etc, reducing construction cost.
2) Adopting solar panel as power source, LED lamp as light source, perfect combination for energy saving.
3) Adopting lithium iron phosphate battery as power back-up, with high capacity, long service life over 5 years,
Excellent high temperature peformance.
4) Waterproof design
5) Adopting aluminum alloy as main body material, with feaures of rust-proof, corrosion-proof.
6) Motion sensor design, segmented power control function, during late half night, brightness reduce in order to save Energy and increase practicality.

---General specification:

Solar Panel	Max Power	18V25W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 6AH standard(extend 9AH)
	Life time	5 years
LED Lamp	Max power	12V 8W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	800-880LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6hours
Discharge time	Full power	12 hours
	Half power	24 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	3-4m
Space between light	range(m)	8-10m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years
