Double Sided/ Both Side P6/P8/P10 Outdoor Full Color LED Display Screen

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Model NO.：10mm
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：160X160mm
• Module Resolution：16X16dots
• Cabinet Size：960X960X150mm
• Cabinet Resolution：96X96dots
• Screen Brightness：7000nits
• Protection Grade：IP65
• Compliance：Ce
• Controller：Nova, Linsn
• Maintenance：Rear Service
• Transport Package：Plywooden Case
• Specification：960x960mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

=== Description ===
Pixel pitch10mmModule size320mm*160mmModule pixel32dots*16dotsDriving method1/4 constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots


Cabinet specifications:
 Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.202 / MAX.599


Screen parameters:
 No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)120°5Brightness≥7500cd/sqm6Drive Method1/2 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

LED Display Panel photo:





Wall mounted on the building:






Unipole standing on the roadside :






Installed on the roof :

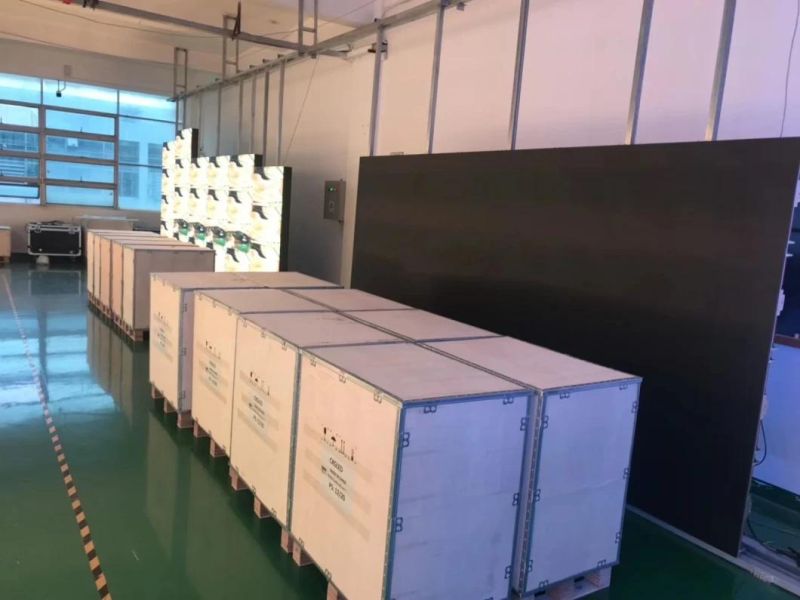

Package:






Certificates:
