Paint Shop Paint Chamber Paint Oven Paint Spray Oven with Infrared Heating

• After-sales Service：24 Hours After Service
• Warranty：2 Years
• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Infitech

=== Base Info ===

• Model NO.：IT-501F
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Plenum (Height)：400mm
• Extraction：350mm
• Extraction Area：27.6m2
• Grids Carrying Capacity：650kg,Wheel
• Walls：50mm Rock Wool Walls
• Brightness：>800lux
• Air Volume：18,000m3,H
• Empty Loaded Air Speed：0.18m,S
• Maximum Working Temperature：80 Celsius
• Rated Power：50kw
• Noise：<78 dB
• Heats：Infrared Heating Lamps
• Inverter：Option
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：6900 X 4000 X 2800mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

=== Description ===

Basic Info.

Model NO. IT-501F Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Infrared Ray Paint Mist Treatment Dry-type Condition New Plenum (Height) 400mm Extraction 350mm Extraction Area 27.6m2 Grids Carrying Capacity 650kg/Wheel Walls 50mm Rock Wool Walls Brightness >800lux Air Volume 18,000m3/H Empty Loaded Air Speed 0.18m/S Maximum Working Temperature 80 Celsius Rated Power 50kw Noise <78 dB Heats Infrared Heating Lamps Inverter Option Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 6900 X 4000 X 2800mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Paint Shop Paint Chamber Paint Oven Paint Spray Oven With Infrared Heating1.FEATURES
IT-501 Infrared Car Paint Booth

1. Internal dimensions: 6900*4000*2800mm, downdraft airflow
2. Raised metal basement(350mm), no need to do concrete work
3. 2*5.5kw intake & exhaust fan unit
4. Infrared heating lamps, 12 sets, 3*1kw, slide along the track, mounted on the side and at the top
5. Convenient-to-use control

2.SPECIFICATIONS

ITEMS	Paint Shop Paint Chamber Paint Oven Paint Spray Oven With Infrared Heating SPECIFICATIONS
Model	IT-501F Infrared Car Paint Booth
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	6900 X 4000 X 2800mm (L X W X H)
External dimensions	7005 X 5560 X 3610mm (L X W X H)
Airflow	Full downdraft
Plenum (height)	400mm
Extraction	Through 350mm raised metal basement
Extraction area	27.6m2
Grids carrying capacity	650kg/wheel
Entrance door	3200x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 1 set
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Sidewall lights (LED)	option
Brightness	>800LUX
Filters	Plate type filter, high efficiency ceiling filter, floor filter
Intake/Exhaust unit	Direct-type turbine fan, 2x5.5KW, CE motor
Air volume	18,000m3/h
Empty loaded air speed	0.18m/s
Heats	Infrared heating lamps 12 sets, 3*1kw/set, total 36kw
Controls	CE standard control box
Inverter	option
Stack light	Yes
Voltage	380V, 50Hz, 3ph
Rated power	50KW

3. Paint Shop Paint Chamber Paint Oven Paint Spray Oven DETAILS
ENTRY DOOR & LIGHTS

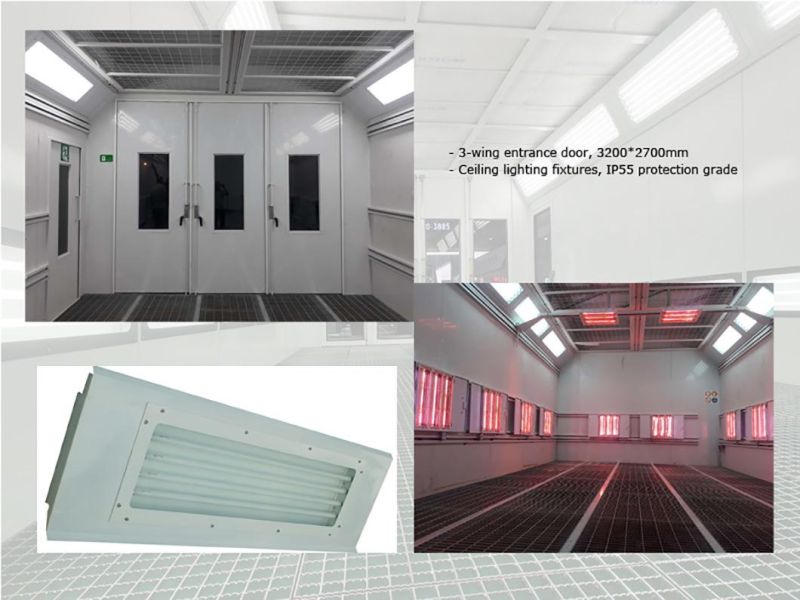

• Product entrance door, 2+1 structure
• Angled ceiling lights, LED lamp

BASEMENT

• 350mm raised metal basement, made of galvanized steel
• Full gratings, 650kg/wheel
• External ramp, made of diamond plate

OPTION
Different types of basement are available to adapt to different installation fields requirements.

AIR MAKEUP UNIT

• 2*5.5kw fan unit (direct-drive fan, CE certified motor)
• Air volume: 18,000m³/h

OPTION

• Traditional indirect gas heating
• Traditional diesel burner

CONTROL
Easy-to-use control with manual buttons

FILTERS

Item	Specification
Pre-filter	Plate type fiberglass filter
Ceiling filter	High efficiency F5 grade filter
Floor filter	Fiberglass paint stop filter

Factory image:



Packing and loading:


FAQQ: What is the difference between traditional gas/diesel heating and electric infrared heating?A: For infrared heating, IR rays emitted by short wave infrared lamps can penetrate various paint product layers applied onto the surface, reaching and directly heating the lower support. It effectively allows the paint material to dry from the inside to the outside, ensuring an optimal and complete evaporation of the volatile components and an unmatched curing of the surface.

Infrared heating suits less than 3 panels repair which can expedite the curing process for smart repair.

For traditional diesel/gas heating, it heats the air and, the hot air dries the paint material from the outside to the inside. The hot air flows across the vehicle and creates protective seals around it. The paints can be dried more evenly.

The traditional diesel and gas heating not only suits both less than 3 panels repair and more than 3 panels repair.

Please decide which type of heating system you choose for your spray booth depending on the local power supply, the actual application, the lowest ambient temperature etc.
If the temperature is below 0ºC in winter, we do not recommend electric infrared lamps. This is because if the booth is with infrared heating only, it cannot achieve the function of heating spraying when it is very cold.
 Q: There is electric infrared lamps inside the booth. How to ensure the safety when there is painting inside?A: You can see that the infrared fixtures are with doors. In the painting phase, the doors keep closed. When the doors are closed, the infrared lamps cannot work. This is to keep the overspray away from the infrared lamps and ensure safety.
 Q: How long is the service time of the infrared lamps?A: The service time of the infrared lamps can last as long as 5,000 hours.
 Q: Do the infrared heating units come with slow start function?A: Yes. In order to lessen the impact on the power, the infrared units come with slow start function. Also there is silicone rectifier for adjusting power during the application so the brightness of the infrared lamps can be adjusted depending on actual needs.
 Q: How long is the warranty?A: 2 years after the spray booth is accepted. The warranty is for main components, it does not include the comsumables.
