PVC Two Cavity Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. GYF Condition New Trade Assurance 20,0000 Dollars Material PVC,PE,HDPE,UPVC,CPVC Product Types Pipe Voltage 380V 50Hz 3phase (Customized) Transport Package PE Filmpackaging Specification According to customer Trademark GPM Origin Shanghai, China HS Code 8477209000 Production Capacity 500set/Year

Product Description

roduct Application
Four cavity PVC electrical tube,water supply pipe extrusion line can extrude four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 concial twin-screw extruder can easily reach 5.5-6.5ton/per day,the production speed take 16mm as example can get more than 8-10m/min.

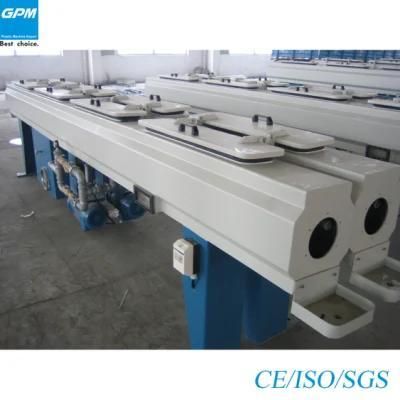

The whole line is composed of conical twin-screw extruder Φ65mm,4 cavity mould,4 cavity cooling calibration tank,4 station haul-off,4 station cutter,and 4 station tipping table

Technical specification
Model	Pipe spec(mm)	Extruder	Max.output(kg/h)	Total power(kw)
GWG63-PVC 2-strands	Φ20-Φ63	GSZ80/156	350-450	136
GWG110-PVC 2-strands	Φ63-Φ110	GSZ80/156	350-450	136
