Fiber Laser Cutting Machine with Ce Qualification

• Application：Home Appliance, Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, Metal Cutting
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Large Full-Enclosed & Exchangeable Worktable
• Laser Classification：Fiber Laser

=== Base Info ===

• Model NO.：GS3015CE,GS4020CE,GS6020CE
• Laser Technology：Laser Control Fault Cutting
• Model No：GS-3015ce , GS-4020ce
• Working Area：3000mm * 1500mm , 4000mm * 2000mm
• Laser Power：1000W
• Laser Type：Fiber Laser Generator
• Type of Machine：Full Enclosed
• Transport Package：Package by Plywood
• Specification：8800mm * 3160mm * 2000mm
• Trademark：Glorystar
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8456100090
• Production Capacity：5000 Sets,Year

=== Description ===

Basic Info.

Model NO. GS3015CE/GS4020CE/GS6020CE Laser Technology Laser Control Fault Cutting Model No GS-3015ce / GS-4020ce Working Area 3000mm * 1500mm / 4000mm * 2000mm Laser Power 1000W Laser Type Fiber Laser Generator Type of Machine Full Enclosed Transport Package Package by Plywood Specification 8800mm * 3160mm * 2000mm Trademark Glorystar Origin Dongguan City, Guangdong Province, China HS Code 8456100090 Production Capacity 5000 Sets/Year

Product Description

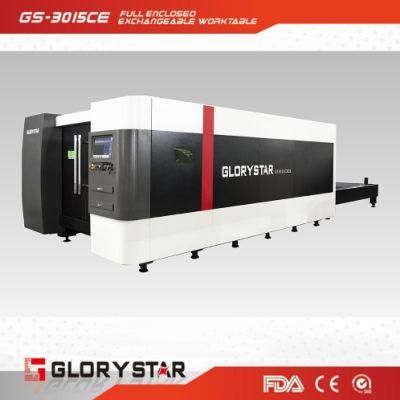

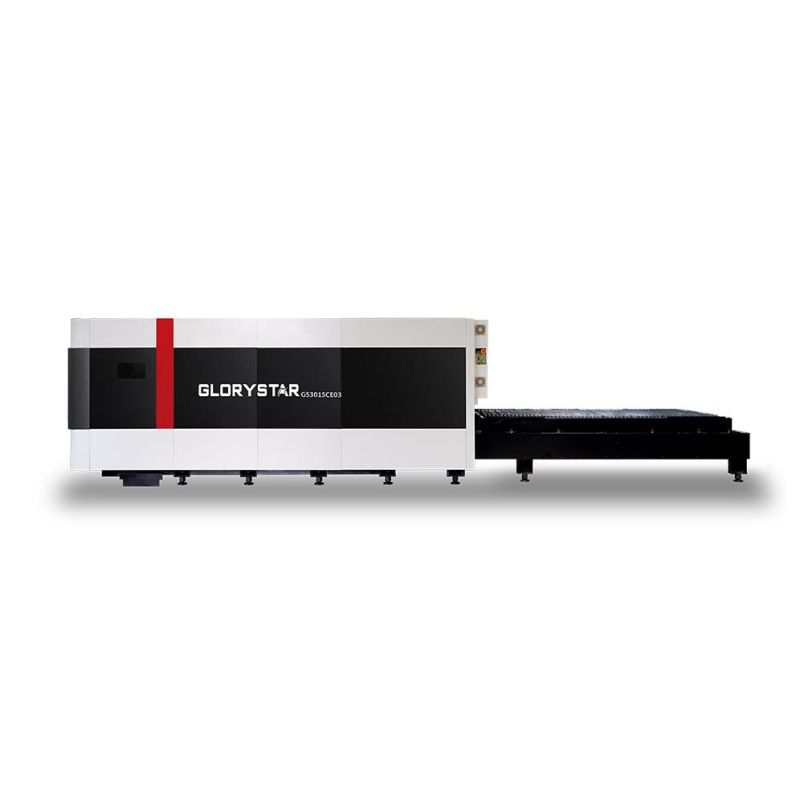

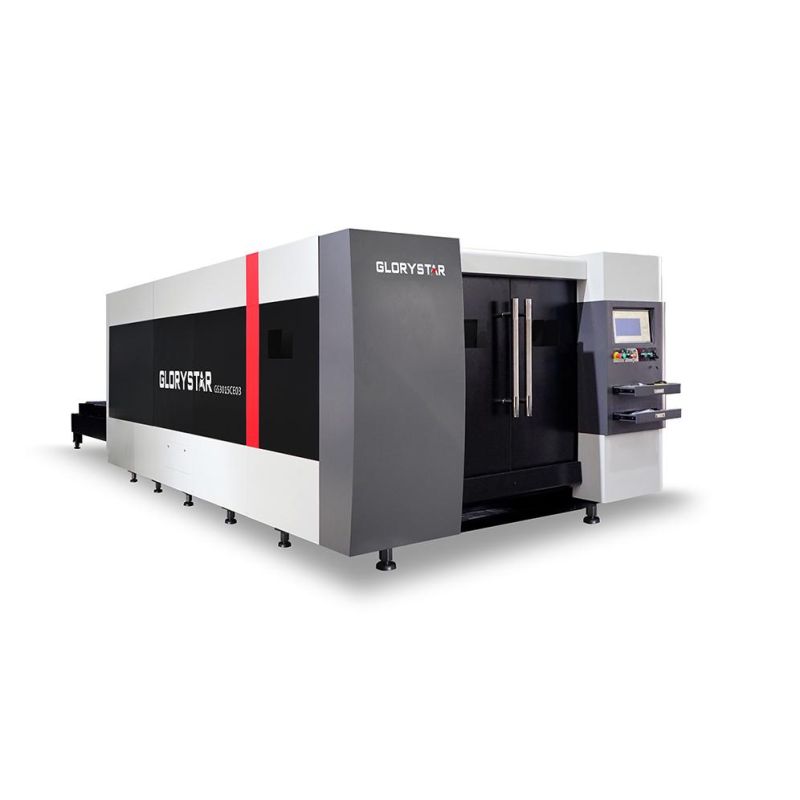

CNC Full Enclosed Fiber Laser Cutting Machine

The frame is precisely welded by argon arc, whole structure is gantry type; 600 0C high temperature annealing treatment and 12 meters large CNC gantry fine milling ensure the frame regularly to run for 20 years without deforming.equipped with the most advanced wireless hand held terminal, it can perform processing by remote control. The  machine adopts imported Germany CNC system,high-performance AC servo motor,high-strength cast-aluminum cross girder. It is a high-tech product integrated with advanced technology such as pneumatic,mechanic, photoelectric and CNC,etc.






Features:
Single axis positioning speed:80m/min, imported Japanese servo motor synchro double drive system, imported Germany Precitec laser cutting head,imported French high precision gearbox,Japanese high precision gear and rack, Precise laser cutting controlled system.

Applicable Materials:
Especially suitable for contact-free cutting,hollowing or drilling of metal sheets in 0.5mm to 14mm,e.g.,stainless steel,carbon steel,galvanized sheet,thin aluminum and thin copper etc. Fast ,precise and energy-efficient.

Technical parameters:

Model	GS-3015CE	GS-4020CE/4025CE	GS-6020CE/6025CE
Laser Power (W)	1000-6000 (Optional)	1000-6000 (Optional)	1000-6000 (Optional)
Working Area (MM)	3000*1500	4000*2000/ 4000*2500	6000*2000/ 6000*2500
Total Power Consumption (KW)	12KW<80KW	12<80	12<80
Dimensions (MM)	8800*3000*2000mm	10000*3500*2000/ 11000*3900*2000	15100*3500*2000/ 15100*4000*2000
Weight (T)	8	10/11	13/14

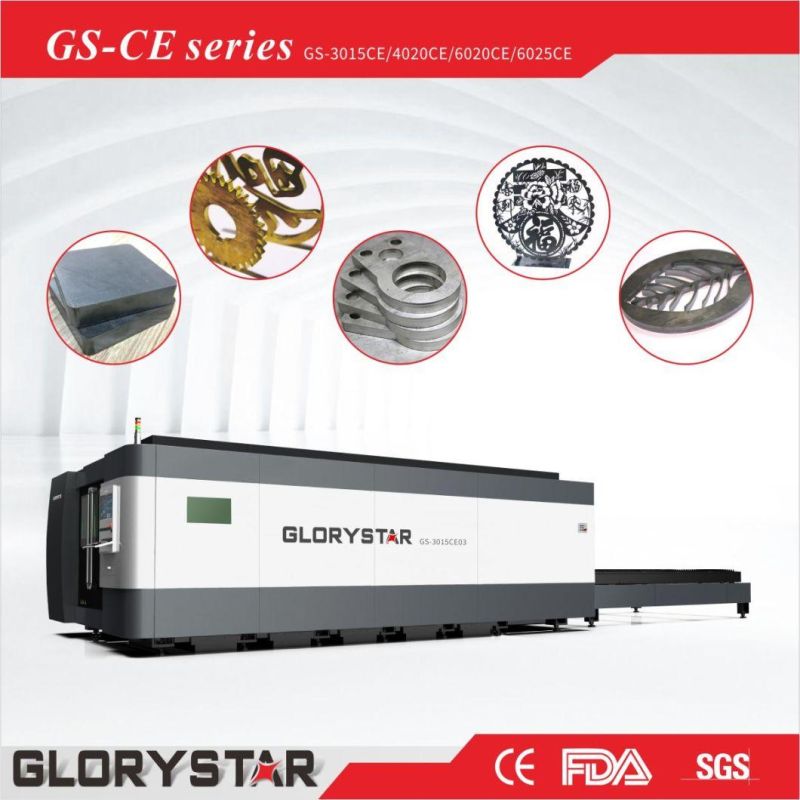

Samples:


After-sale Sevice

<<< We offer professional after-sales installation and  guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.

<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
