Single Cabin Plan Sifter Maize Corn Flour Mill Line

• Warranty：12 Months
• Type：Corn Mill
• Application：Corn
• Voltage：380V
• Appearance：Vertical
• Press Materials：Corn

=== Base Info ===

• Model NO.：HNLY02
• Press Series：Fifth
• Condition：New
• Customized：Customized
• Capacity：According to Customers′ Need
• Size：According to Capacity
• Machine Test：Supported
• Factory Visiting：Yes
• Supported：Manufacture
• Transport Package：Seaworthy Wood Case
• Specification：CE, ISO, SGS, CCC
• Trademark：HNLY
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：100sets Per Month

=== Description ===

Basic Info.

Model NO. HNLY02 Press Series Fifth Condition New Customized Customized Capacity According to Customers′ Need Size According to Capacity Machine Test Supported Factory Visiting Yes Supported Manufacture Transport Package Seaworthy Wood Case Specification CE, ISO, SGS, CCC Trademark HNLY Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 100sets Per Month

Product Description

Single Cabin Plan Sifter Maize Corn Flour Mill Line
Product Introduction:
    The process uses whole dry method mixed desquamation technology, which can produce low-fat corn grits, corn flour, corn germ and corn skin at the same time. It can produce 2-5 kinds of different corn grits and 2-3 kinds of low-fat corn flour. The corn flour and grits have less germ and bran with high quality. Corn grits and corn flour are used as raw material for food and alcohol factories. They are also the best food for urban residents to eat to improve their lives. Corn peel can be used as feed. Corn skins do not need to be dried and packed directly.



Equipment Specifications:
   1. End products: corn grits, corn flour, corn bran, etc.
   2. Power Consumption: 50KW.H for tons of maize consumption.
   3. Finished product rate:  45-55% for corn grits; 25-30% for corn flour; 20-30% for corn bran; corn grits and corn flour total production rate     70-80%.

Product Quality Indicators:
   1. Corn flour fineness:40-100 mesh (adjustable).
   2. Sand content: no more than 0.02%.
   3. Magnetic metal content: no more than 0.003g/kg.
   4. Water: storage type, 13.2-14.5%.
   5. Color odor: natural maize color, smell and taste normally.
   6. Fat content: 0.5-1%.


Corn flour making machine processing procedures:
  1. Cleaning: bucket elevator lifts and conveys the raw matertial-------magnetic selector to remove the magnetic contained material to ensure the safety of the following work-------precylinder sieve to remove the large impurities-----high efficiency vibrating sieve to remove the large, middle and small impurities------gravity destoner to remove the sand, stone, mud and so on.

 2. Dehulling: combined emery roll corn dehuller and iron roll dehuller to seperate the peel of the corn, then bran separator to remove the bran.

 3. Degermination and extraction: corn degerminator to break the corn kernel and separate the corn peel, embyro and endosperm. The embyro extractor to extract the corn embyro.

 4. Crushing: hammer mill to crush the corn kernel into corn grits. Then corn sifter to divide it into large, medium and small grits.

 5. Flour milling: corn flour mill to grind the corn into flour. Then use sifer to grade the flour.

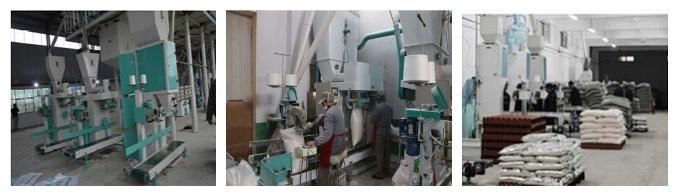

 6. Packing: automatic packing machine or vacuum packing machine to pack the corn flour.


Packaging:
    All machines covered by plastic film firstly and then packed in wooden case to best protect the machine during long time transportation.


Shipping
      All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.


 Our Services
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6.24Hr online service

Company Information
 About us
Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Is established driven by the academy of Henan University of Technology. As a large joint-stock enterprise integrating technology, manufacture and sales, our company is specializing in the production of grain and oil machinery, agricultural and sideline machinery. Cooperating with Henan Mechanical Design and Research Institute and Henna University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd. Has carried out the research and application of oil machinery, food machinery, grain machinery, construction machinery, and feed machinery, etc.


Engineering case
  It has exported to more than 30 countries all over the world, such as Russia, Africa, India, Congo.

Our Factory aid Zambia 240TPD Maize Flour Mill Plant

Any questions, please don't hesitate to contact us!
