PVC Window and Door Profile Extruder Machine Production Line

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJMS65/132 Certification CE Customized Customized Raw Material PVC +Wood Powder Products PV Cwpc Door Frame Capacity 160-240kg/H Application Outdoor Lanscapes Main Motor Siemens Inventer ABB Temperature Controller Omron Transport Package Sea Worth Package Specification SJMS65/132 Trademark HEGU Origin China HS Code 84772090 Production Capacity 160-240kg/H

Product Description

Good quality Hegu pvc window and door profile extruder machine production line
Qingdao Hegu Wood Plastic Machinery co.,ltd is professional for the Whole WPC production line with turnkey Project Service since 1997.We have all the WPC machines in factory stock and can be tested at anytime.

We have different type of WPC machines to make different WPC products from different raw material,such as:

1, PVC WPC profile machine:
Material: 50%PVC+20% wood+20% caco3+ Chemical additives.
Product: WPC door frame, WPC wall panel, WPC decoration profiles indoor.

Model	Profile Width	Extruder model	Motor power	Max.extrusion capacity	Calibrating platform length
HGMSC-200	200mm	51/105	22kw	100-120kg/h	4000mm
HGMSC-300	300mm	65/132	37kw	150-180kg/h	6000mm
HGMSC-400	400mm	65/132	37kw	150-180kg/h	6000mm
HGMSCD-300	600mm	65/132	37kw	150-180kg/h	8000mm
HGMSC-600	600mm	65/13 or 80/156	37 or 75kw	150-350kg/h	6000mm

2, PVC WPC door machine:
Material:50% PVC+20% wood+20% caco3 +Chemical additives.
Product: Hollow Door panel, Cabinet Door, and other big profiles

Model	Door panel width	Door panel thickness	Extruder model	Motor power	Max extrusion capacity	Calibrating mould section
HGMSM-800	800	20-50mm	SJMS 80/156	75kw	350-380kg/h	2
HGMSM-1000	1000	20-50mm	SJMS 92/188	110kw	450-500kg/h	3
HGMSM-1200	1200	20-50mm	SJMS 92/188	110kw	450-500kg/h	3

3, PVC WPC board machine:
Material: 60% PVC+10% wood +20% CaCo3+ Chemical additives.
Product: Solid door panel, Furniture board, partition wall panel, decoration solid panel


Model	SJMSB-80/156	SJMSB-80/173	SJMSB-92/188
Board thickness	5-18mm	3-30mm	20-40mm
Board width	1220mm	1220mm	1220mm
Max extrusion capacity	350-380kg/h	420-450kg/h	500-550kg/h
Motor power	75kw	90kw	110kw

4,PP PE WPC granulating machiner
Material: recycled 30% PP/PE+70% wood powder+chemical additives.
Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..

Model	L/D ratio	Max.capacity	Motor power	Suitable material	Max.rotating speed	Wood powder percentage
SHMS-65	40:1	200-220kg/h	75kw	Pe+wood powder	500r/min	≤75%
SHMS-75	40:1	300-350kg/h	90kw	Pe+wood powder	500r/min	≤75%
SHMS-90	40:1	500-600kg/h	132kw	Pe+wood powder	500r/min	≤75%

5,PP PE WPC profiles machine
HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC profile. The WPC profile adopts two -step production process. The granulating machine make WPC pellets using PP/PE recycled materials, wood powder and auxiliary agent. Then use this production line produce WPC profile.Customers can choose embossing machine for the production line to achieve 3D pattern performance.Customers can also make PE WPC single color or double color co-extrusion profile by adding extruders.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.


Model	HGMSE-65	HGMSE-80
Extruder model	SJMS65/132	SJMS 80/156
Motor power	37kw	75kw
Mac.Extrusion capacity	140-160kg/h	220-250kg/h
Co-extruder(Optional)	SJ35/28	SJ45/28

6,PVC window profiles / ceiling/ wall panel/rain gutter making machine

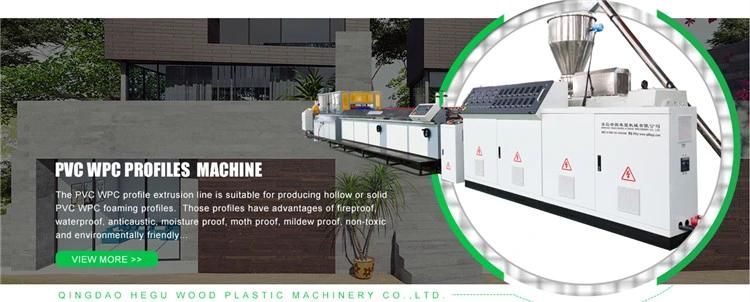

pvc profile extrusion line is optimumly designed by referring to the latest overseas technology, it bears the features of even plasticization, low cutting rate, high output, and long lifespan, etc. And it composes conical double-screw extruder, vacuum sizing platform, tractor, cutting and film coating machine and material stirring bracket,etc.
The PVC WPC profile extrusion line is suitable for producing PVC windows and doors profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

Model

Model	Profile Width	Extruder model	Motor power	Max.extrusion capacity	Calibrating platform length
HGMSC-200	200mm	51/105	22kw	100-120kg/h	4000mm
HGMSC-300	300mm	65/132	37kw	150-180kg/h	6000mm
HGMSC-400	400mm	65/132	37kw	150-180kg/h	6000mm
HGMSCD-300	600mm	65/132	37kw	150-180kg/h	8000mm
HGMSC-600	600mm	65/13 or 80/156	37 or 75kw	150-350kg/h	6000mm
