• Certification：CE, ISO9001
• Power Source：Electric
• Process：Mild Processing
• Automatic Grade：Automatic
• Application：Chocolate
• Customized：Customized

=== Base Info ===

• Model NO.：RYG-3
• Water Tempering in The Jacket：40-65 Degree
• Nominal Capaciy：120kg*3
• Weight：180kg
• Material：Stainless Steel
• Transport Package：Container
• Specification：1900*650*1000
• Trademark：GUSU
• Origin：China
• HS Code：8438200000
• Production Capacity：2000

=== Description ===

Basic Info.

Model NO. RYG-3 Water Tempering in The Jacket 40-65 Degree Nominal Capaciy 120kg*3 Weight 180kg Material Stainless Steel Transport Package Container Specification 1900*650*1000 Trademark GUSU Origin China HS Code 8438200000 Production Capacity 2000

Product Description

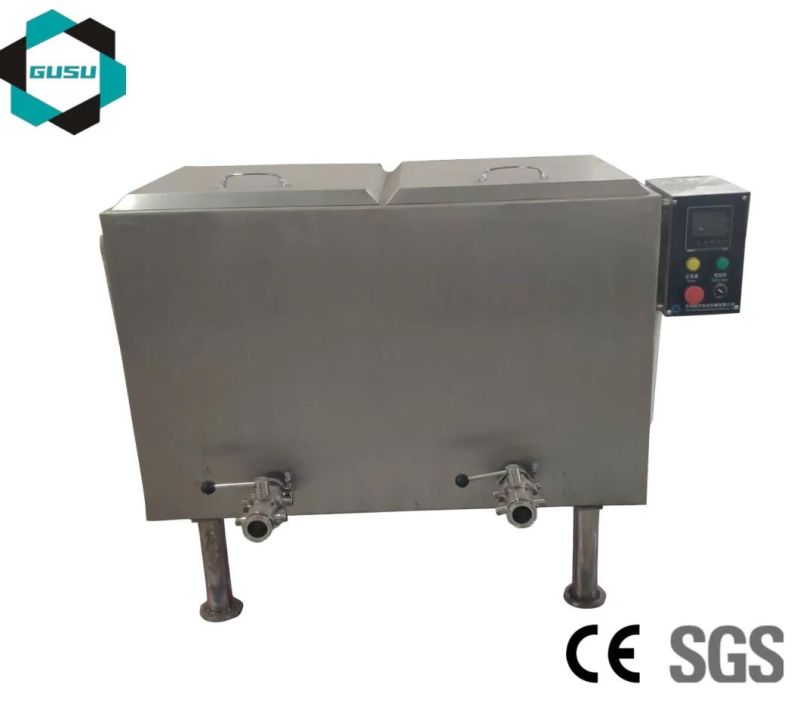

Fat Melting Kettle

Product DescriptionThe chocolate fat melters were designed to continuously melt chocolate, compound, butter and fat, whether in chip/button or block form. They have a holding unit, which enables you to draw from the tank whilst still melting the product.  Features:
1) All tanks can be made to your preferred size. We can offer round or square tanks;2) Full stainless steel construction in either 304 or 316;
3) Temperature controllable;
4) Top driven gate type stirrers for round tanks;
5) It also has the function of preventing fat separation from chocolate tank;
6) The discharge port has been updated from the traditional flange interface to the quick joint.


Technical Parameter

Model	Capacity (L)	Heating Power(kW)	Water Temperature in the Jacket(ºC)	Water jacket pressure	Dimension (mm)
RYG-3	120KG*3	9	40~65	≤1.5kg	2300*800*1000
RYG-4	250KG*4	12	40~65	≤1.5kg	2300*1250*1000
RYG500	500KG	12	40~65	≤1.5kg	φ1220*1500
RYG1000	1000L/h	15	40~65	≤1.5kg	2550*1670*1820
