500W 750W 1000W Laser Cutter CNC Fiber Laser Cutting Machine for Metal Stainless Carbon Steel Galvanized Sheet Aluminum Sheet Copper Sheet Steel Plate

• Warranty：3 Years
• Application：Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type

=== Base Info ===

• Model NO.：DW-F1530
• Laser Classification：Free Electron Laser
• Product Name：Fiber Laser Cutting Engraving Machine 3D CNC Route
• Item：Fiber Laser Engraving Cutting Machine
• Working Area：1500*3000mm
• Vacuum Pump：7.5kw Vacuum Pump
• Transmit System：Dual Rack & Pinion Type
• Chain System：Made in Germany
• Certification：CE FDA ISO
• Laser Source：Raycus Laser Source
• Liner Guider System：Hiwin Made in Taiwan
• Transport Package：Wooden Packing
• Specification：3710*2250*2300mm
• Trademark：DOWIN
• Origin：Henan China
• Production Capacity：500 Set,Month

=== Description ===

Basic Info.

Model NO. DW-F1530 Laser Classification Free Electron Laser Product Name Fiber Laser Cutting Engraving Machine 3D CNC Route Item Fiber Laser Engraving Cutting Machine Working Area 1500*3000mm Vacuum Pump 7.5kw Vacuum Pump Transmit System Dual Rack & Pinion Type Chain System Made in Germany Certification CE FDA ISO Laser Source Raycus Laser Source Liner Guider System Hiwin Made in Taiwan Transport Package Wooden Packing Specification 3710*2250*2300mm Trademark DOWIN Origin Henan China Production Capacity 500 Set/Month

Product Description

Industrial cutter CNC fiber lazer cutting machine for metal stainless with water cooling system and 3 years warranty 500w 750w 1000w optional.

Parameters :

Model	DW-1530F Fiber lazer cutting machine
Working Area	1500*3000mm
Laser Power	500W/750W/1000W
Laser Wave Length	1064nm
Working Table	Saw tooth
Maximum Idle Running Speed	1200mm/s
Position Accuracy	±0.05mm/m
Position Speed	20m/min
Minimum Line Width	± 0.02mm
Cutting Thickness	≤6mm
Control System	NC Editor/Cyp cut
Position Type	red dot
Power Consumption	≤12KW
Working Voltage	380V/50Hz
Auxiliary Gas	oxygen, nitrogen, air
Working life of fiber module	More than 100000 hours
Fiber laser cutting head	Raytools
Focus lens	Lasermech made in USA
Driver system	YASAKAWA servo motor made in Japan
Liner guider system	HIWIN made in Taiwan
Transmit system	Dual Rack & Pinion type
Rack system	made in Germany
Chain system	made in Germany
Warranty time	3 years
Delivery time	20 days

Features:
Industrial Cutter CNC Fiber Lazer Cutting Machine For Mental Stainless With Water Cooling System And 3 Years Warranty 500w 750w 1000w Optional.

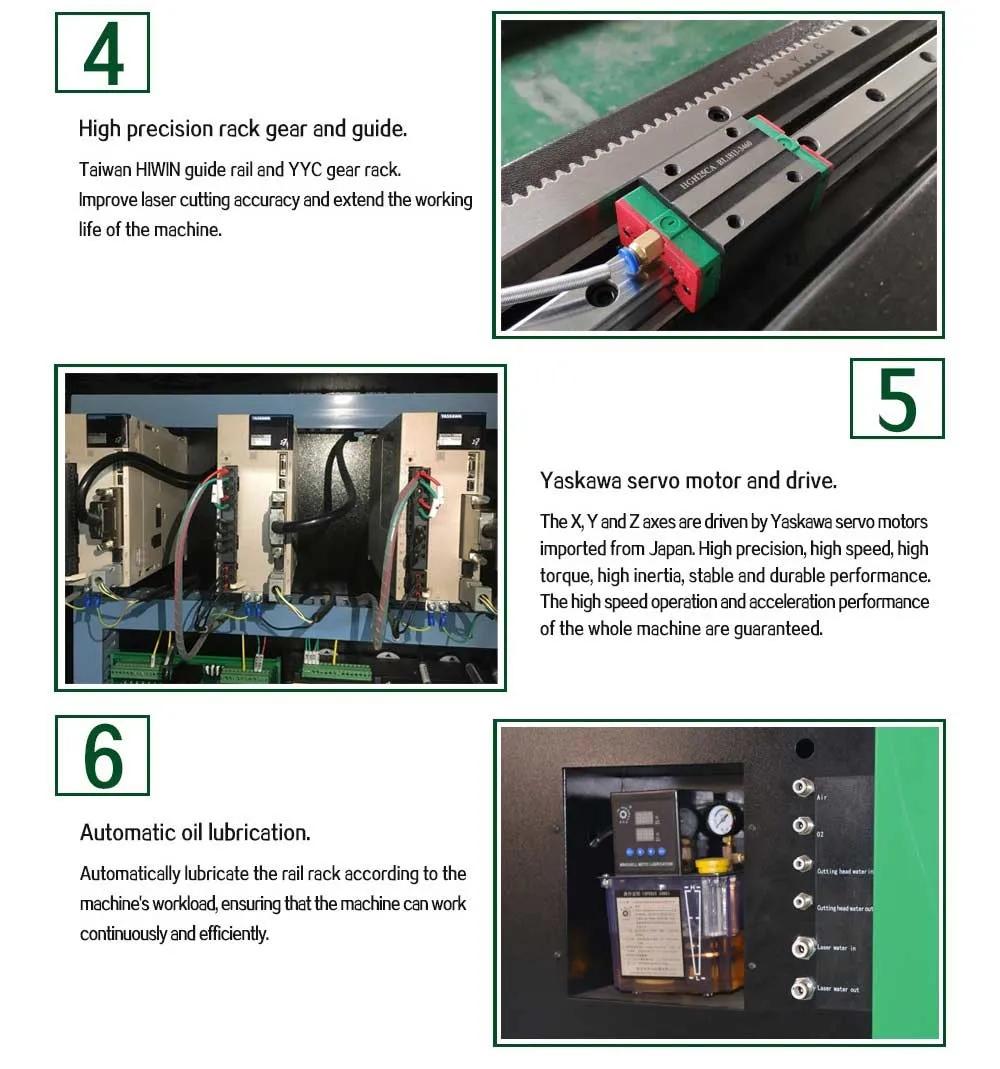

7.Adopt high-precision ASG geared motor imported from Japan.Improve laser cutting accuracy and extend the working life of the machine.

8.S&A Industrial chiller.With compressor could cool down fiber laser quickly to ensure that the fiber laser has stable power and efficient and fast operation.Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be no laser,can protect the working life of fiber laser effectively.


9.Cypcut(optional) professional cutting system.The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically,searching edges smartly and automatic positioning.Control system adopts the best logic programming and software interaction, provides stunning operation experience,effectively enhancing the utilization of sheet metal and reducing waste.Simple and fast operation system,efficient and accurate cutting instructions,effectively improve the user experience.

Application materials:

Fiber Lazer Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Applicable Industry:

DOWIN Fiber Lazer Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Working Samples:


Packaging & Delivery:

1.Packaging Detail: wooden box
2.Port :shanghai/Qingdao/Tianjin/ningbo
3.Lead Time :

Quantity(Sets)	1 - 3	>3
Est. Time(days)	15	To be negotiated

Our Company:

Dowin Tech Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting machine,laser engraving machine,laser marking machine and laser welding machine. All series machines are with One-three year's warranty. Also our service support various languages, like English, Spanish, Russian,and so on. Meanwhile, customized equipment are available according to different requirements.Within the laser engraving and cutting field, Dowinlaser has passed CE and FDA qualifications.Which assures high-efficient production and products' reliability. After years of hard work, Dowinlaser's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc..

We will be in Shanghai expo in September 2020!!!Looking forward meeting you there!



Our services:

1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
*Three-years warranty on the whole machine accessories if the machine parts have any problems,we can change the old machine parts to new ones free.
*Exceed three years warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.
3.Dowin Tech Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation.
*Training for normatively turning on/off operation of the machine.
*Instruction of technical parameters, as well as their setting ranges.
*Basic daily cleaning and maintenance for the machine.
*Solutions for common hardware problems.
*Training for other questions and technical suggestions during daily production.
4.Training can be processed in the following ways:
*Workers of customers can come to our factory to get the most professional hand-by-hand training.
*We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.


F A Q:

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: This model is not suitable for me, do you have more models available?
Yes, we can supply many models . (130*250cm,150*300cm,150*400cm,200*300cm...) , and laser wattage (ranging from 500 watts to 6000 watts) If you'd like help determining which laser is right for your application or receive pricing information.

Q4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5:How about the documents after shipment? And how long is the delivery time?
After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q6:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via alibaba trade insurance order payment

Q7:Do You Arrange Shipment For The Machines?
Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
For FOB or CIF price, we will arrange shipment for you.

Q8:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
