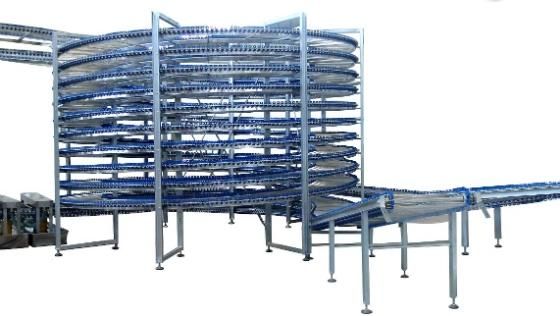

Bakery Pizza Spiral Cooling Food Bread Tower Conveyor Belt Machine

• Usage：Biscuit, Cake, Pizza, Bread
• Customized：Customized
• Material：Stainless Steel
• Dimension(L*W*H)：Customized
• Conveyor Belt Width：304 Stainless Steel
• Tower Diameter：Customized

=== Base Info ===

• Model NO.：ACN-190911005
• Shape of The Tower：Round,Oval,Vertical
• in Feed and out Feed Direction：in Feed and out Feed Direction
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：AOCNO
• Origin：Hebei, China
• HS Code：8438100010
• Production Capacity：300 Sets One Month

=== Description ===

Basic Info.

Model NO. ACN-190911005 Shape of The Tower Round,Oval,Vertical in Feed and out Feed Direction in Feed and out Feed Direction Transport Package Wooden Case Specification CE, ISO9001 Trademark AOCNO Origin Hebei, China HS Code 8438100010 Production Capacity 300 Sets One Month

Product Description

Working Principle:

The Main Spindle drives per gear in each layer, and gears drives per mesh belt in each layer, so that the power of gear motor to be transmitted. Each gear has smart power transmission device to adjust the transmission power automatically.


Characteristics of Spiral Cooling/Freezing Tower(transmit layer by layer):

1. Nylon card rail in both sides are stable, without machine jams or upturning fault.

2. Due to its intelligent transmission technology, the mesh belt in each layer can adjust its tension automatically, keep the transmission force in each layer equal.


	The mesh belt is made of 304 stainless steel and the skeleton is made of 304 and 201 stainless steel square tubes.
Belt width range	200 mm-1300 mm
Belt length range	Single tower length 50 meters - 1200 meters
Tower diameter range	1.5-12 Meters
Layer height	Spiral tower up to 6 meters
Tower Layer range	1-40 layers
Entrance&exit direction	Low inlet high exit  high inlet low exit   two in and two out, three in and three out, ellipse

3. Adopts high strength Nylon card rail and low friction PP guide rail, resulting in lubricant in rotating unnecessary, scraps caused by friction not to drop or pollute food.

4. Food input and output directions to be customized according to customer's workshop layout, such as Input in Lower entrance, well come out from higher exit, Input in Higher entrance, well Output from Lower exit, Twin Inputs+Twin Outputs, Three Inputs+Three Outputs, Round Circle or Ellipse Spiral Towers.

Proofer

It can be used as spiral proofer, assembly with production line, which improves the production efficiency greatly, users can monitor all proof process via computer control system. Optional Device: Steam System and Heating System. The Spiral Cooling/Freezing Tower is suitable for bulk and packaged foods. It runs as usual at a temperature of 40 ºC below.

Deep  freezer

* Deep-Freezing Spiral Tower designed according to usage of foods.

* Cooling/Freezing Settlement customize for bread,pizza,dumplings,wonton,fresh vegetable,fish or other meat.


Cooling

Suitable for cooling all kinds of baking foods and fried foods.there are two types: Natrual cooling & Controlled Freezing.

Mesh belt to be customized,

narrowed to be 200mm, widest to be 1300mm,

Spiral tower, shortest to be 50m, longest to be 1200m.

The largest diameter of Spiral Tower to be 12m, shortest to be 1.5m.

The largest Spiral Tower height to be 6m, 40 layers at most.
