Fangtai PE Bubble Film Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FTPE-800-3000 Trademark Fangtai Origin Ruian China HS Code 8477800000 Production Capacity 20set/Month

Product Description

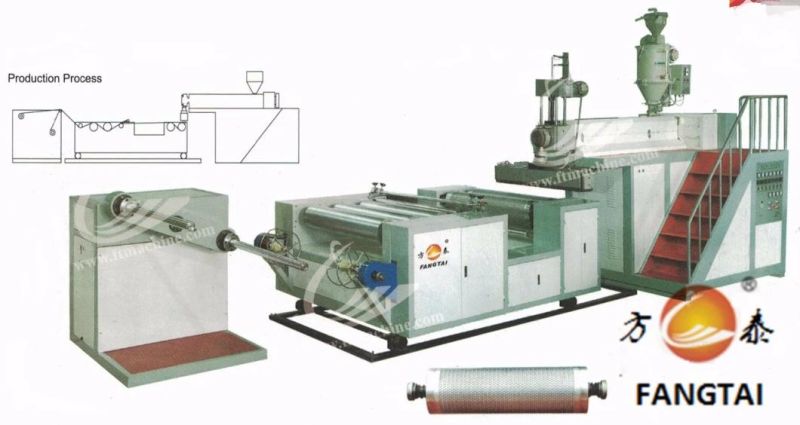

Fangtai PE Bubble Film Making Machine




Use
This machine adopts once-through shaping technique,thus has high efficiency and excellent product quality.This machine set has such features as scientific and reasonable structure design.smooth and reliable running and convenient operation and maintenance.Polythylene air-cushion film(also called polyethylene bubble film), which is divided into two kind:ordinary polyethylene air-cushion film and composite polyethylene air-cushion film,is a kind of packing material which has been widely used at present.It not only has good cushioning effect,shock resistance and heat-sealing performance,but also has such advantages as good corrosion resistance and transparency,etc.So it has been widely used for packing,household wares,post parcel,prcise instrument,bicycle,polyurethane furnitue.etc.

Optional Equipment
1)auto loader
2)auto dryer
3)motorize net changer
4)air shaft

Main Technical Variables

Model	FTPE-800	FTPE-1000	FTPE-1200	FTPE-1500	FTPE-1800	FTPE-2000	FTPE-2500	FTPE-3000
Screw Dimameter	Φ55mm	Φ60mm	Φ65mm	Φ75mm	Φ90mm	Φ95mm	Φ110mm	Φ120mm
Main Motor Power	11kw	15kw	15kw	18.5kw	30kw	37kw	45kw	55kw
Film Width	800mm	1000mm	1200mm	1500mm	1800mm	2000mm	3500mm	3000mm
Output	45kg/h	60kg/h	70kg/h	90kg/h	120kg/h	150kg/h	160kg/h	180kg/h
Total Power	35kw	50kw	58kw	70kw	86kw	95kw	135kw	170kw
L/D	28:1	28:1	28:1	28:1	28:1	28:1	30:1	30:1
Linear Speed	1200m/h	1200m/h	1200m/h	1200m/h	1000m/h	1000m/h	800m/h	700m/h
