Good Performance Herbal Grinder Herb Mill Herb Grinder with 10-170 Kg/H

• After-sales Service：Spare Parts for Free
• Warranty：1 Year
• Type：Herb Mill
• Application：Beans
• Voltage：380V
• Appearance：Vertical

=== Base Info ===

• Model NO.：130
• Press Materials：Soybean
• Press Series：Second
• Condition：New
• Customized：Customized
• Transport Package：Wooden Case
• Specification：1300*800*1200mm
• Trademark：EFFORT
• Origin：Henan, China
• Production Capacity：300 Sets,Year

=== Description ===

Basic Info.

Model NO. 130 Press Materials Soybean Press Series Second Condition New Customized Customized Transport Package Wooden Case Specification 1300*800*1200mm Trademark EFFORT Origin Henan, China Production Capacity 300 Sets/Year

Product Description

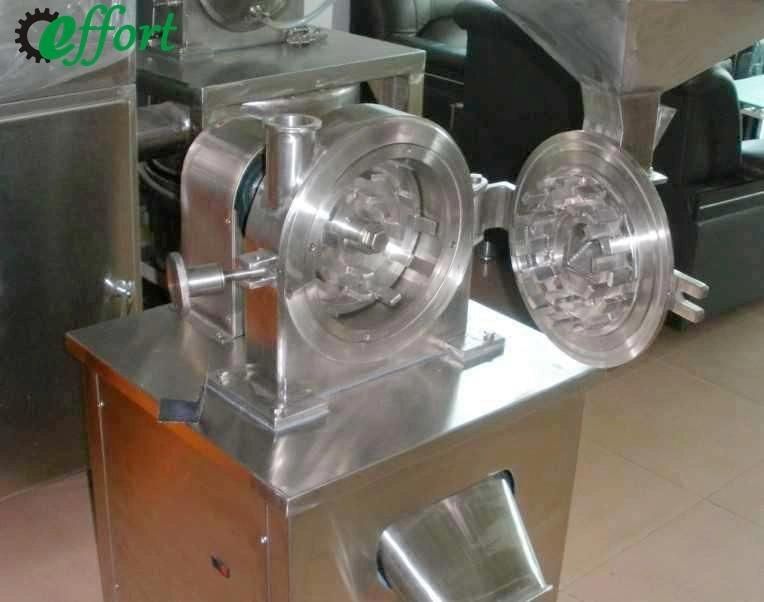

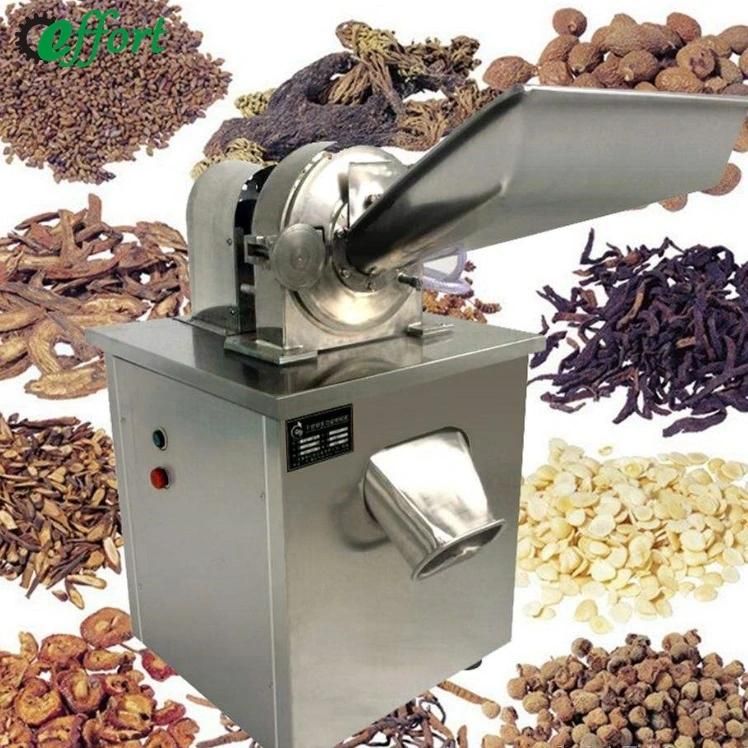

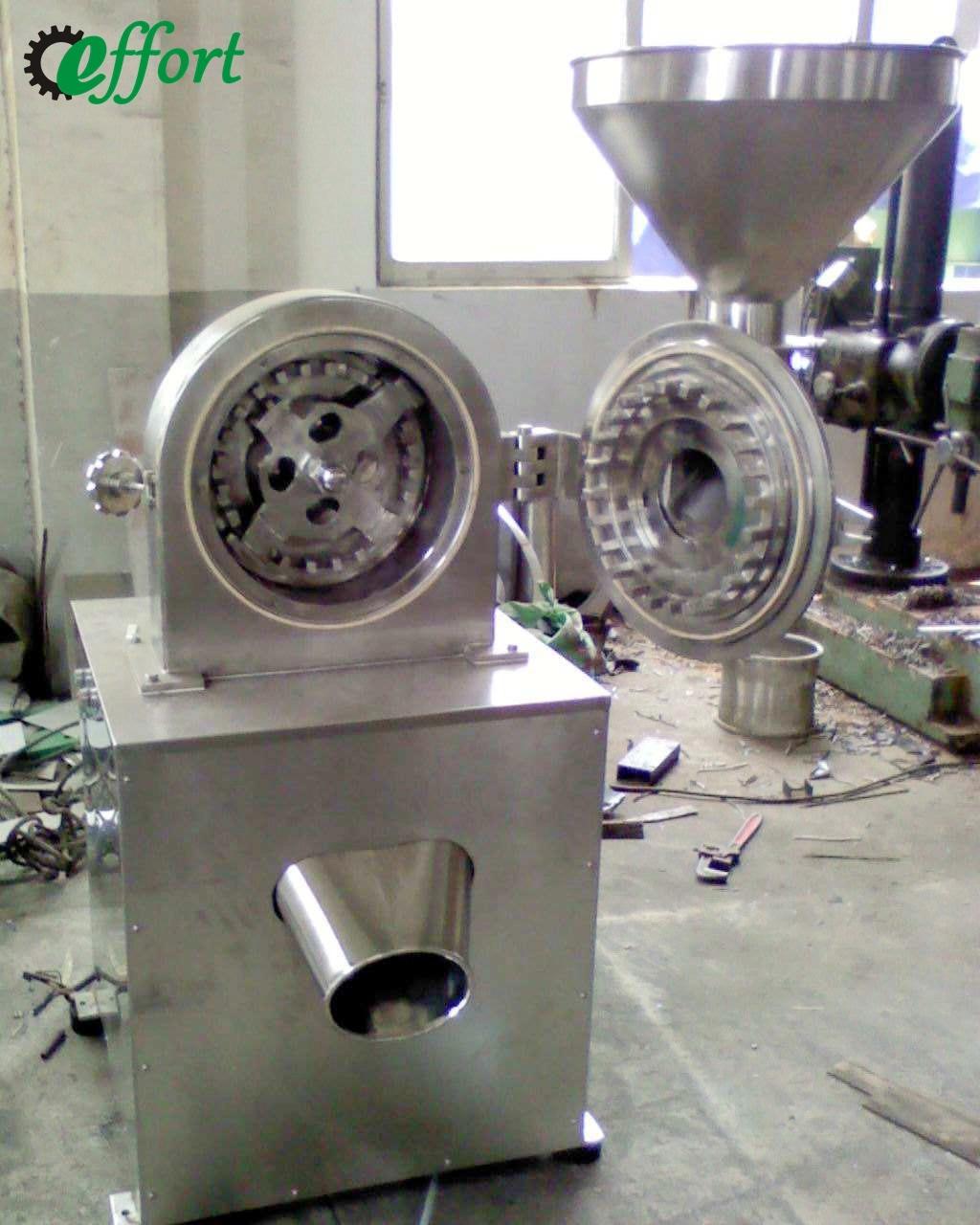

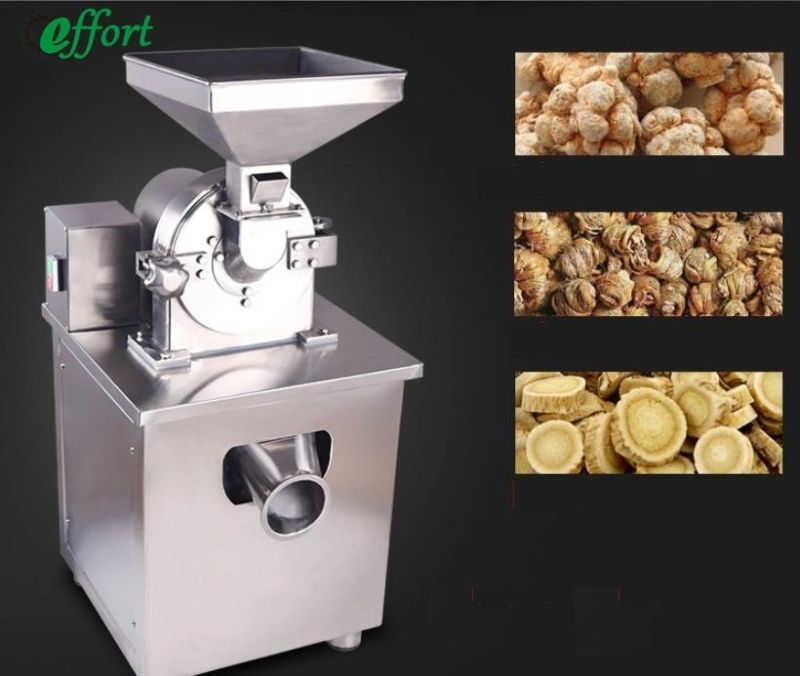

Good Performance Herbal Grinder Herb Mill Herb Grinder With 10-170 KG/H

1. Application:
This machine is used in pharmaceutical, chemical, agriculture and food industry, raw material crushing, are pharmaceutical, hospitals, in pharmacies, family, individual restaurants, powdered spices and other processed foods ideal.






2. Working principle:

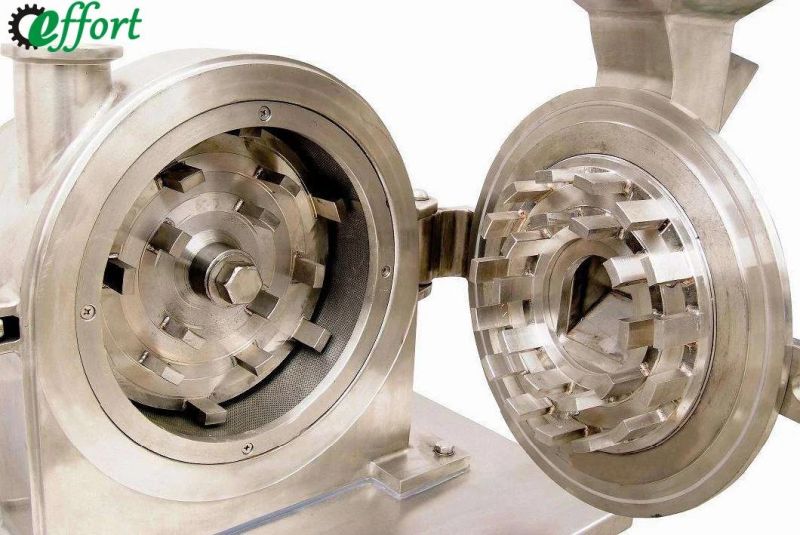

It uses the high-speed relative motion between the moving tooth set and regular tooth set, which makes the material. Crushed through concussion, rub and crush between the material .The structures of machine is simple, firm and operating steadily and the result of crushing is well. The crushed thing is discharged directly from main frame; the size of the granularity is gained through changing different network of the whole stainless steel. Surface of the inside of the machine reaches smooth by tooling ,which changes the phenomenon of inboard wall coarse accumulating of power machine in the past ,it can accord with the national standard even more to make medicines, food, chemical  industry , etc and meet the requirement of GMP.




1. Features:

· Compact shape, easy maintenance.
· Mechanical stability, low energy consumption, crushed, crush phenomenon, not raise he crushed temperature
· Lower energy consumption,compared with the traditional omnipotent pulverize, it could save 30% power
· Equipment structure compact, floor space small
· In crushing box no stitch line, no dead space, easy to unpick and wash, disinfect, change variety expediently, meet with the GMP standard
· The scope of shatter granularity, the grain diameter of end product is 20-200 item scope adjusted arbitrarily; machinery roundly, the output is 15~500kg/h machinery optionally.

4. Specification and price:

Model	EFTHG-130	EFTHG-180	EFTHG-250	EFTHG-320	EFTHG-400
Main shaft speed (r/m)	3900	3900	3900	3900	3400
Max. Input size(mm)	25	30	40	50	50
Final size( mesh)	20-100	20-120	20-120	20-120	20-120
Capacity( Kg/h)	5-35	15-70	50-150	80-160	100-170
Power( Kw)	1..1	1.5	5.5	7.5	11
Raw material	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304	Stainless steel 304
Weight( Kg)	60	75	180	280	350
Package size( m)	0.48*0.35*0.68= 0.115CBM	0.58*0.39*0.94= 0.213CBM	0.7*0.5*1.45= 0.5075 CBM	0.8*0.6*1.55=  0.744 CBM	1.15*0.7*1.5=   1.2 CBM
