Automatic Juice Filling Line for Bottle

• After-sales Service：Online,Spare
• Warranty：12months
• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Automatic
• Application：Mango Juice

=== Base Info ===

• Model NO.：L-SERIES
• Customized：Customized
• Filling Valve：Hot Filling
• Packing：Film
• Main Material：SUS
• Pump：Cnp
• Transport Package：Wooden Block
• Specification：5000bph
• Trademark：GM
• Origin：China
• HS Code：8422301090
• Production Capacity：10sets,Year

=== Description ===

Basic Info.

Model NO. L-SERIES Customized Customized Filling Valve Hot Filling Packing Film Main Material SUS Pump Cnp Transport Package Wooden Block Specification 5000bph Trademark GM Origin China HS Code 8422301090 Production Capacity 10sets/Year

Product Description

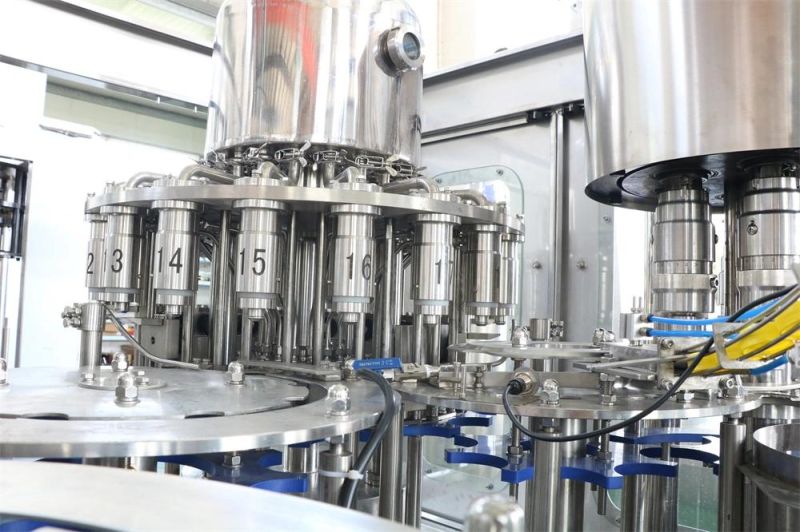

Description of Juice/tea hot filling machine
this 3-in-1 hot filling system is sued for filling tea ,juice and functional drinks ,the mate rial of the bottles can be PET , glass and so on ,the function of fluent and fast filling action high filling precision ,reliable capping and low mate rial loss makes it effectively prevent secondary pollution of the neck with high automation in the whole process it can achieve the replacement of different bottles only by exchanging equivalent parts
this system can also from complete set of production line with the other related system providing proposals for full set of hot filling

complete mango juice production line
This line is for the mango juice production from the fruit .
beverage pre treatment system
filling using hot filling valve ,
film packing with 4*6 or 3*4
ink jet printer
the main machine list as following

No	Name	Model	Power (kw)	Qty
1	Fruit washing machine	CXJ-2	5.15	1
2	Elevator	BSJ-2	0.75	1
3	Juice extractor	LZ-1	11	1
4	Buffer tank	2T		1
5	Centrifuge	LJ-1	3	1
6	mill	JM	11	1
7	Pump	CHL2-40	0.37	2
8	Prepare tank	1T	0.55	1
9	invert sugar tank	0.6T	10	1
10	Duplex filters	3T		1
11	Vacuum de-air	TQ-2.5	2.2	1
12	Homogenizer	GJJ	7.5	1
13	Asepsis Tank	2T		1
14	Instantaneous sterilizer	RSCG01-2	20	1
15	High tank	0.3T		1
16	Washing,filling,capping3-in-1	CGF16-16-5	4	1
17	Down bottle sterilizer	DP-6	1.4	1
18	Spray cooling machine	LP-6	3	1
19	Dryer	CG	1.5	1
20	Sleeve label machine	SD-100	20	1
21	Wrapping machine	WD-150	18	1
