High Quality Hot Sell PVC Turnking Profile Production Line

=== Base Info ===

=== Description ===

Basic Info.

Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Power 63kw Capacity 150-180kg/H Transport Package Standard Packing Specification 16X16-40X40mm Trademark kebeln Origin China HS Code 8477209000 Production Capacity 150-180kg/H

Product Description

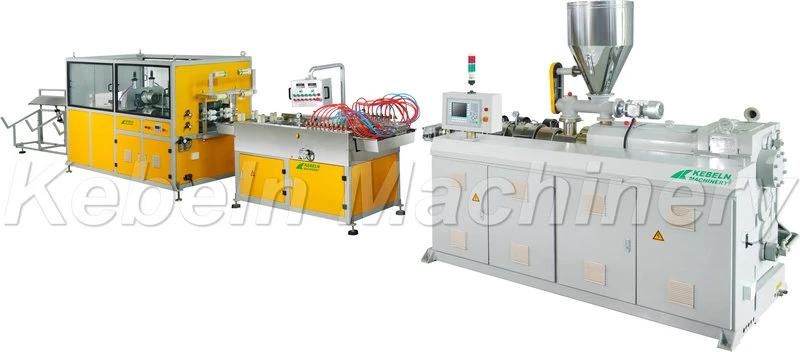

PVC cable trunking extrusion machine

MACHINE INTRODUCITON:

This extrusion line is developed with the advanced extrusion technology by KEBELN. The main machine is the Conical Twin-screw Extruder, which is suitable for PVC trunking or PVC pipe extrusion. The accessorial machines of this profuction line are Vacuum Forming Table, Traction machinem Cutter and Stacker.

Techncial specification:

item	PVC double pipe/trunking extrusion line	PVC single pipe/trunking extrusion line
Capacity(kg/h)	150-180kg/h	150-180kg/h
Vacuum forming table length	3500mm	3500mm
Haul off speed	0-12m/min each	0-10 m/min
Installation power	63kw	62kw
Total length	18m	19m

1. KBL55/113 Conical Twin Screw Extruder
2. Extrusioin Die
3. Vacuum Calibration cooling Tank
4. Haul-off Machine
5. Cutting Machine
6. Stacker.
