HDPE LDPE Double Colors Strip Double Head Blown Film Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. FB-H Automation Non-Automatic Computerized Non-Computerized Machine Weight 3.5t Certification CE, ISO9001:2008 Thickness of Film 0.01-0.1mm Extrusion Output 30-40kg/H Guarantee 1 Year Winder Single Station Rewinding Motor 10n.M Film Color 2 Colors Screw Quantity 2sets Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 8477301000 Production Capacity 30 Set/Month

Product Description

Products Specification:
It can blow low density polyethylene (LDPE), high density polyethylene (HDPE), color striped plastic film, and other plastic films.

Double-color film blowing machine set used for blowing low density polyethylene (LDPE), high density polyethylene (HDPE), color striped plastic film, and other plastic filmsFeatures and

Main Feature

1) Cylinders and screws of the FB-F-600 model extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing

2) FB-F-600: the auxiliary machine can be freely adjusted within the limits of 700mm according to technical requirements of different materials ] and has is fitted with a pug-in plate mechanism for making vest bags

3) Coiling unit adopts torque motor to keep proper tensions and make rolling even and roll-changes easy

4) Widely used for packing food, fruit, garments, textiles, daily necessities and other civil and industrial products

Usage:

It is used for blowing the various low density polyethylene(LDP)and high density polythylene (HDPE) colour striped plastic film,etc,which are widely used for packing food,fruit,garments,textile,dailly neccessities and other civil and industrial products.

Main Characteristics:

The cylinder and the screw stems of made of FB-F-600 extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

FM-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the rechnological requirements of different materials,and has is fitted with a plug-in plate mechanism for making vest bag.

The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Model	FB-F-600	FB-F-800
Screw Dismeter	Φ40mm×2	Φ45mm×2
Screw L/D Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Power of Main Motor	11Kw*2	15Kw*2
Max.Extrusion output	30kg/h	40kh/h
Max.Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm
Total Power	28Kw	34Kw
Weight of Machine	2200kg	2600kg
Overall Dimension(L×W×H)	4000×2000×2800mm	4600*2300*3800

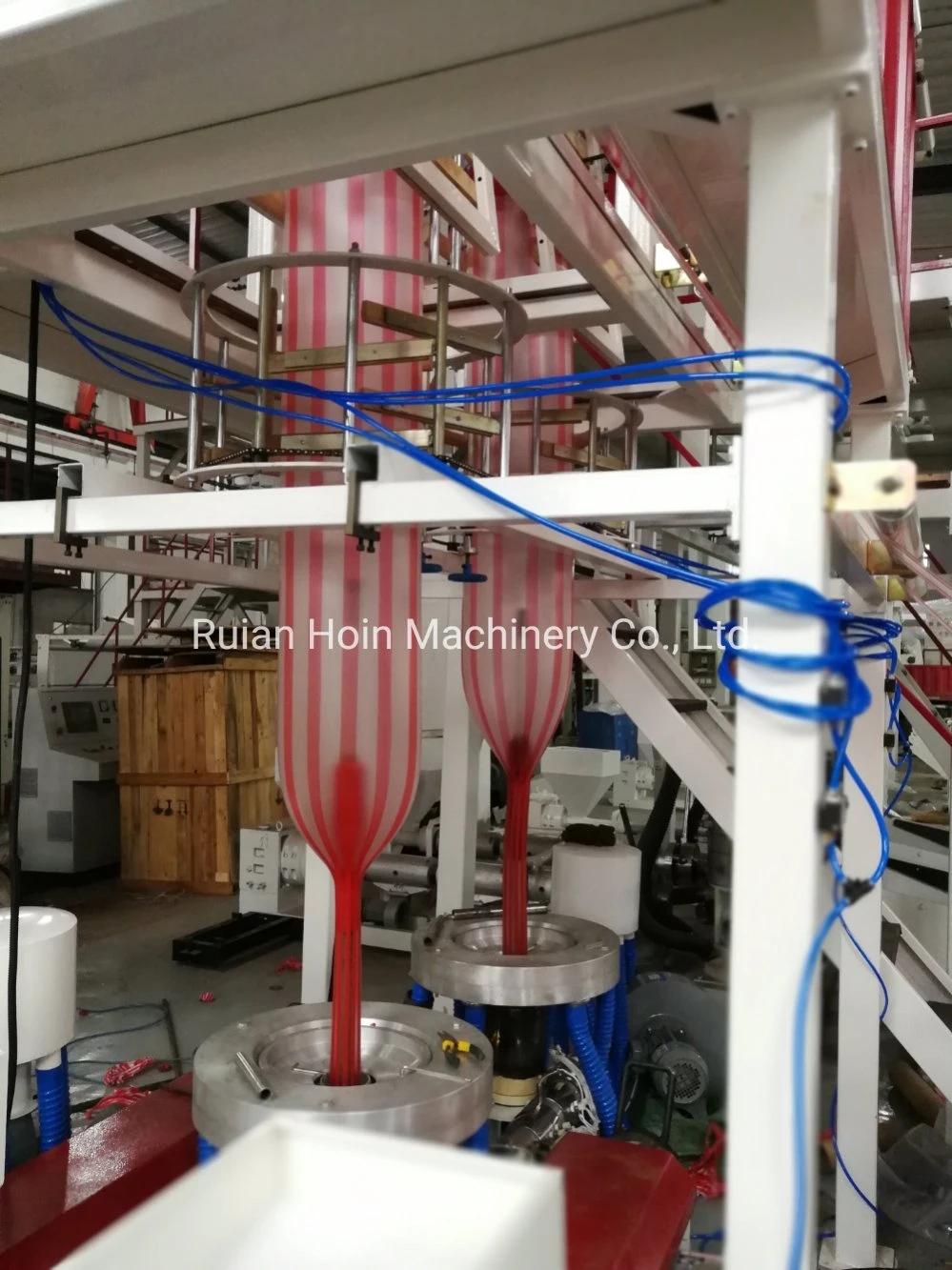

Machine Pictures for Reference:

Workshop of HOIN

More Products Optional
After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
