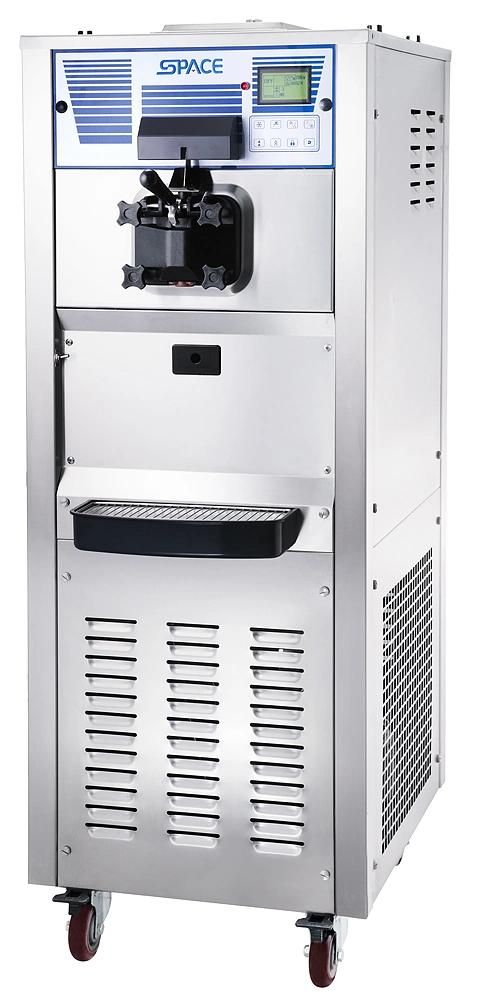

Soft Serve Ice Cream and Frozen Yogurt Machine (6338A)

• Certification：CE, UL, ISO9001
• Power Source：Electric
• Process：Frozen and Chilled
• Automatic Grade：Automatic
• Application：Ice Cream, Frozen Yogurt
• Customized：Non-Customized

=== Base Info ===

• Model NO.：6338A
• Voltage：380-450V,50Hz
• Power：2.8kw
• Capacity：38L,H
• Material：Stainless Steel
• Transport Package：Carton with Pallet
• Specification：CE; ISO9001: 2000
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Sets,Month

=== Description ===

Basic Info.

Model NO. 6338A Voltage 380-450V/50Hz Power 2.8kw Capacity 38L/H Material Stainless Steel Transport Package Carton with Pallet Specification CE; ISO9001: 2000 Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 10000 Sets/Month

Product Description

Soft Serve Ice Cream and frozen Yogurt Machine 6338A






Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature:
1. Floor model
2. Air cooling
3. Single flavour
4. Air pump freezer---Gear pumps ensure a high overrun ice cream
5. Stainless Steel Panels
6. LCD automatic control

Freezing cylinder
One, 3.2 Liter

Mix hopper
One, 15 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 degree Celsius.

Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 degree Celsiusduring long no-use periods.

Counter
Records number of dispenses per day and total number of dispenses.

Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.

Output
38LIter/Hour(At 4 degree Celsius liquid &24 degree Celsius Ambient)

Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is on.

Main motor
One, 1.5HP

Refrigeration system
One compressor: 6486 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.

Specification
Voltage: 380-450V/50Hz
Power: 2.5KW
N. W. (KG): 180kg
G. W. (KG): 200kg
Dimension Net (mm): 917*554*1520
Dimension Packing(mm): 850*645*1665

Options
Local specific plugs of power supply wire
Cup dispenser
Power supply 220V/60Hz
