- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
- Application:Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized:Customized
=== Base Info ===
- Model NO.:GJB Series
- Name:Ce SGS Certificate Milk Juice Liquid Homogenizatio
- Material:Stainless Steel 304 ,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Certificate:Ce
- Appication:Milk , Juice, Beverage, Butter, Honey, Cream
- Motor:Customized Electricity Motor
- Voltage /Hz /Phase:Make to Your Order
- Stage:Two Stage
- Working Life:More Than 20years
- Spare Parts:Provide
- Packing:Wooden Box
- Delivery:15-20 Days
- OEM:Yes
- Plunger:4 Set , 5 Set
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
GJB Series
Name
Ce SGS Certificate Milk Juice Liquid Homogenizatio
Material
Stainless Steel 304 /316
Capacity
500L/H--10000L/H
Pressure
250bar to 700bar
Certificate
Ce
Appication
Milk , Juice, Beverage, Butter, Honey, Cream
Motor
Customized Electricity Motor
Voltage /Hz /Phase
Make to Your Order
Stage
Two Stage
Working Life
More Than 20years
Spare Parts
Provide
Packing
Wooden Box
Delivery
15-20 Days
OEM
Yes
Plunger
4 Set / 5 Set
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

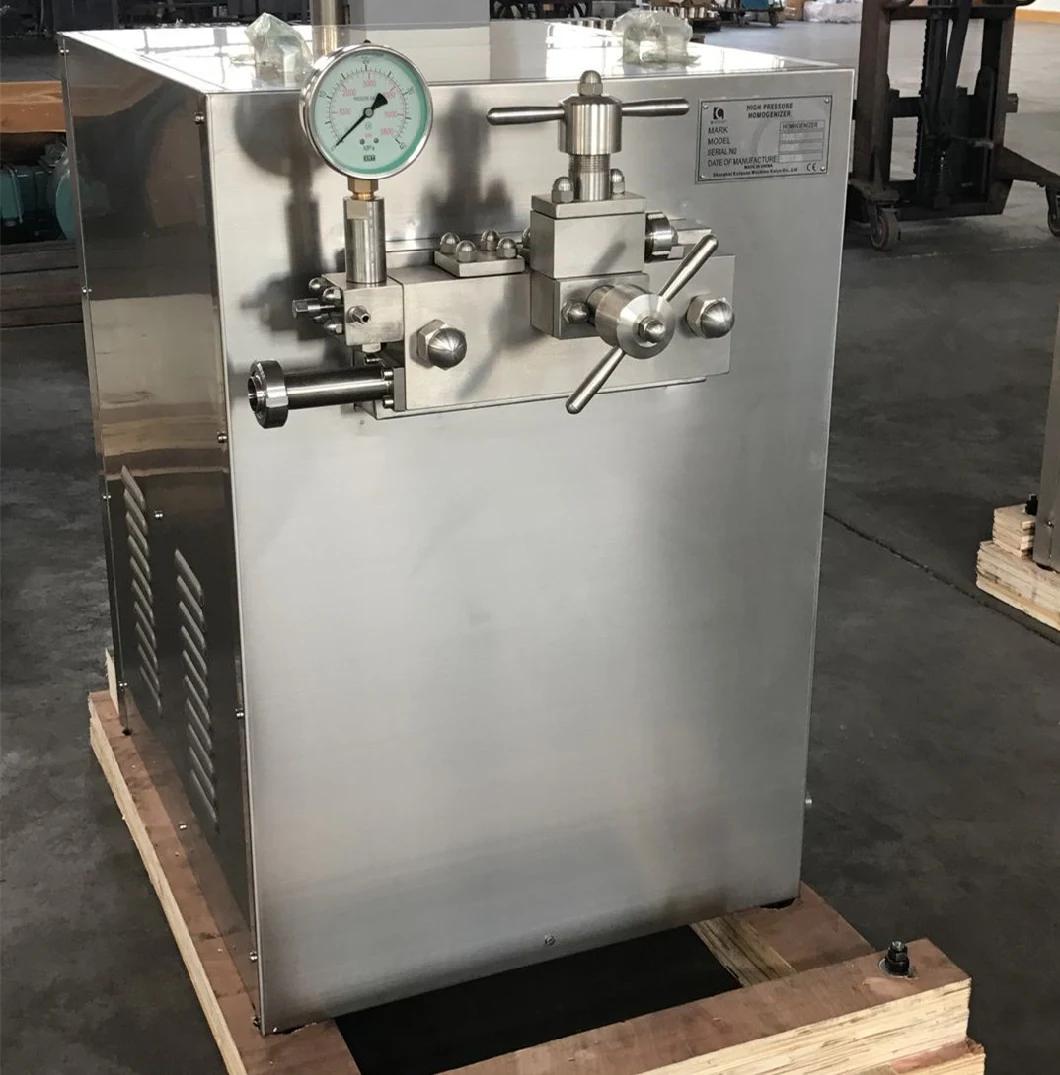

CE SGS Certificate Milk Juice Liquid Homogenization Machine
GJB high pressure homogenizer
Small Milk Homogenizer Machine Price for Sale .
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
CE SGS Certificate Milk Juice Liquid Homogenization Machine .
