Peanut Coating Machine Automatic Coater

• Certification：CE
• Power Source：Electric
• Process：Thermal Processing
• Automatic Grade：Automatic
• Application：Chips, Peanuts Green Bean Cashew Nut
• Customized：Customized

=== Base Info ===

• Model NO.：ACM300
• Material：Stainless Steel 304#
• Power：8.21kw
• Weight：500kg
• Compressed Air Supply：0.6-0.8MPa
• Electricity Requirement：380V,220V 50Hz,60Hz 3phase
• Capacity：250~300kg,H
• Package：PE Film,Wooden Box
• Suitable for：Peanuts, Sunflower Seeds
• Control System：PLC & Touch Screen
• Transport Package：Wooden Case Package
• Specification：2x2x2.5M
• Trademark：Handyware
• Origin：Foshan
• HS Code：8438800000
• Production Capacity：250-300kg,H

=== Description ===

Basic Info.

Model NO. ACM300 Material Stainless Steel 304# Power 8.21kw Weight 500kg Compressed Air Supply 0.6-0.8MPa Electricity Requirement 380V/220V 50Hz/60Hz 3phase Capacity 250~300kg/H Package PE Film/Wooden Box Suitable for Peanuts, Sunflower Seeds Control System PLC & Touch Screen Transport Package Wooden Case Package Specification 2x2x2.5M Trademark Handyware Origin Foshan HS Code 8438800000 Production Capacity 250-300kg/H

Product Description

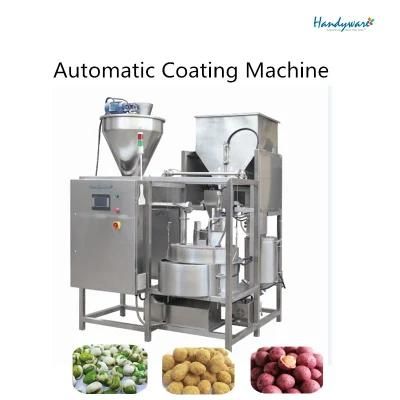

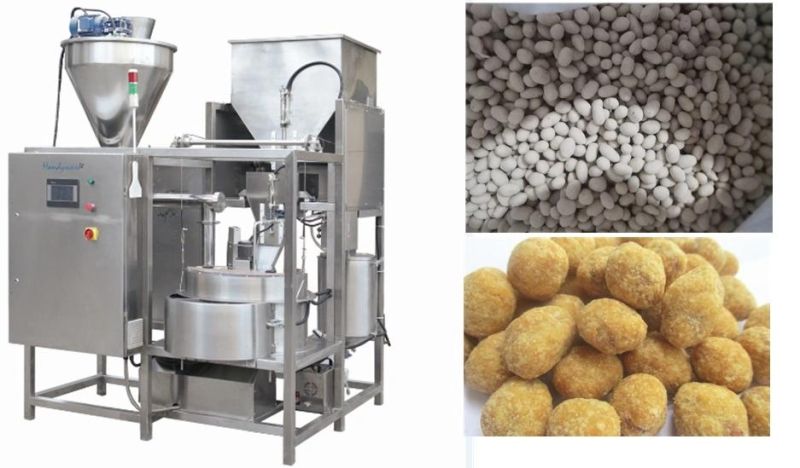

Automatic Coating Machine

The Handyware Engineering Automatic Coating Machine is suitable for coating of peanuts,sunflower seeds,green peas and other nuts.
Manufacturers switching from traditional manual coating to use of Automatic Coating Machine would see product quality improvement and long term cost savings.

The process of coating

1.Filling the peanuts in the hopper and filling the flour to the tank for mixture .
2.Filling of syrup
3.Operating parameters into PLC.
4.Start automatic coating
5.Required peanuts drop into coating pan.
6.Coating in operation.
7.Discharge peanuts uniformly coated.

The Automatic Coating Machine has the following different models catering to different capacity requirement:


Model	Capacity	Feature	Power	Diension (mm)
ACM200	120-200kg/h	Single coating pan	8.21KW	2000 x 2000 x 2500
ACM300	220-300kg/h	Single enlarged coating pan	8.21KW	2000 x 2000 x 2500
ACM600	500-600kg/h	Double enlarged coating pan	16KW	2400 x 2000 x 3500

 Customer of Handyware Engineering


Exhibition




Patent Certificate:





Before  sale services:

1. Provide initial  standard machine configurations.
2.According to the clients' special requirment,offer customized and competitively priced solution. Where necessary,offer customer with options .
3.Help client design the factory and offer professional advice ,provide free drawing for the factory layout.
4.Welcome to visit our factory for machine viewing or trial.

Services during the sales:

1.Provide customer with regular production status update.
2. Invite customer for inspection of machine before delivery.

After sale services:

1.Oversea install of the equipment.
2.Provide the basic food formulation.
3.Operation/Service/Maintenance Manual: Provided in English.
4. We will provide engineers to client's factory for the installation and training . The client is required to provide accomodation,food, round-trip ticket, visa,transportation fee and engineer fee of $80 /day/engineer.

Design of capacity as per needs.
