Extrusion Machine PP DIP Tube

=== Base Info ===

=== Description ===
Overview

Product Description

Main Technical Parameters

1, Extruding machine: Screw/cylinder 65, 30: 1 Body motor: 11Kw/8, transducer: 15KW Electric heater: Screw/cylinder 5Kw*4 Mould head: 3KW
2, Dimension setting water case: Vacuum pump-Siemens
3, Traction part: To apply the belt traction and the power of the transducer is 0.75KW

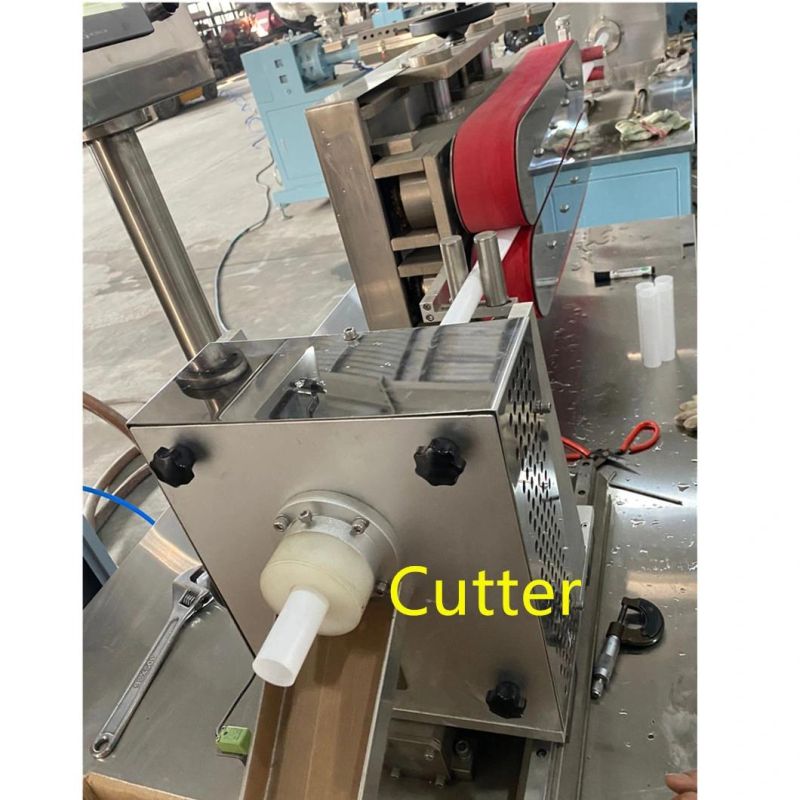

4, Cutting part: The coder reads, PLC controlling service machine synchronically traces and cut the tube for setting length. Theservice engine is 0.75KW*2
5, Productivity: 6 meters/min.
6, Production specifications: Diameter: Φ 19mm-Φ 55mm Length: >50mm


Detailed Photos

Finished Products

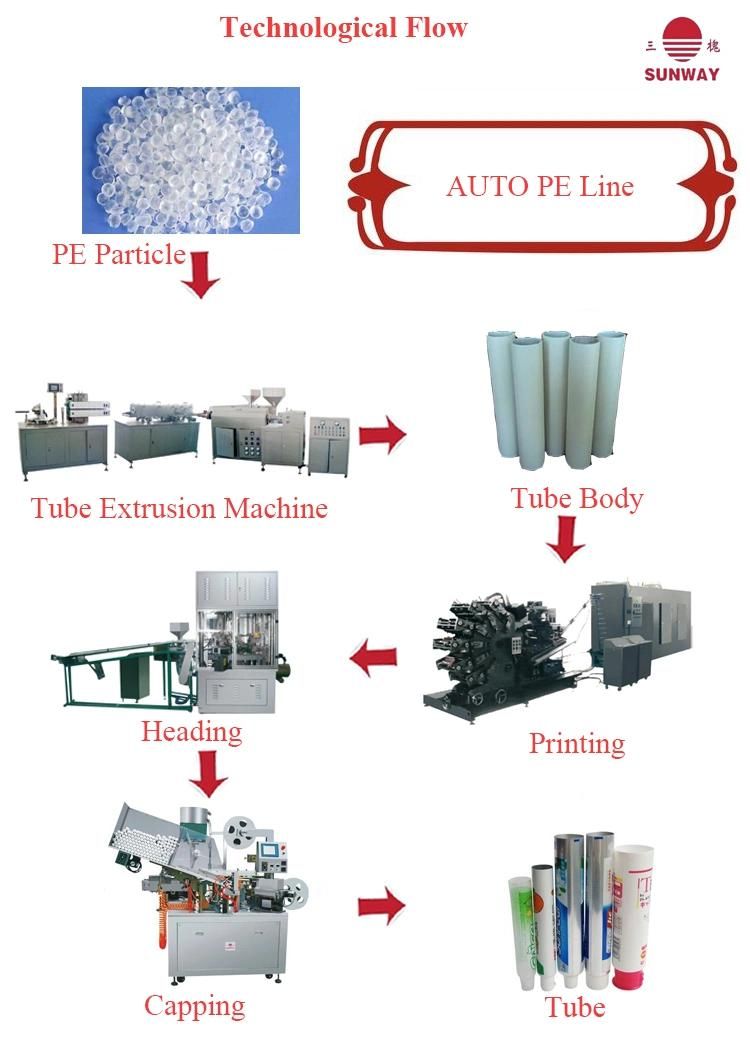

Automatic line layout showing
