Ultrasonic Sterilization Bottle Industrial Washing Machine

• Customized：Customized
• Certification：CE, ISO13485
• Scale：Medium
• Automation：Automatic
• Principle：Rotary
• Property：Physical Sterilization

=== Base Info ===

• Type：Bottle Washing Machine
• Material：304 Stainless Steel or 316L
• Control System：PLC Control
• Standard：Meet GMP Standard
• Electric Power：220V
• Transport Package：Exported Wooden Cases
• Specification：CE
• Trademark：Ghamachine
• Origin：Guangzhou, China
• HS Code：9422301090
• Production Capacity：50 Sets,Month

=== Description ===

Basic Info.

Type Bottle Washing Machine Material 304 Stainless Steel or 316L Control System PLC Control Standard Meet GMP Standard Electric Power 220V Transport Package Exported Wooden Cases Specification CE Trademark Ghamachine Origin Guangzhou, China HS Code 9422301090 Production Capacity 50 Sets/Month

Product Description

Introduction

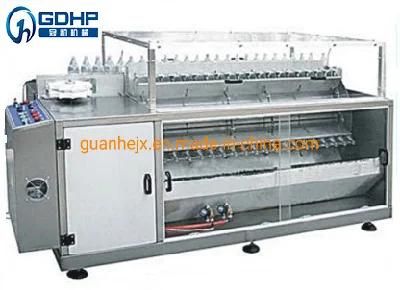

Drawing the advanced tech & combining our constant improvement, we develop this Roller-type bottle-washer. Widely used for the inside and outside washing of round & shouldering alien bottles, it do washing in turn with pure water, injection water and purified air, thus cleaning bottles, also it can dry bottls and also can be equipped with ultrasonic device according to production. Delicate in design, compact in constructure, stable performance, and convenient operation.

Characteristics

1. Unique and reasonable structure, with mechnical template to fix bottles and seperately wash, bottle broken rate is low.
2. reasonable washing technical process guarantees high-grade washing quality.
3. low water consumption:
4. simple operation & convenient maintenance.
5. can be both used seperately and linked to production line.
6. meeting GMP requirements.

Technical parameters

Suitable bottles	2-1000ml glass/plastic bottles
Capacity	40-120BPM(depend on bottle spec)
Power supply	380V 50HZ
Power	1.2kw
Pure injection water pressure	0.4Mpa
Pure water consumption	0.7m³/H
Injection water consumption	0.7m³/H
Purified compressed air pressure	0.3-0.4Mpa
Purified compressed air consumption	40m³/H
Single noise	≤70dB
G.W.	600kg
Dimension	1450×1200×1500mm
