Twins Screw Extruder Making Pet Food Machine

• Type：Pressing Machines
• Application：Flour, Rice flour
• Voltage：380V
• Appearance：Horizontal
• Press Materials：Corn
• Press Series：Fifth

=== Base Info ===

• Model NO.：RN72-S
• Condition：New
• Customized：Customized
• Transport Package：Wooden Packing
• Specification：food grade
• Trademark：honpack
• Origin：China
• HS Code：8438800000
• Production Capacity：2000

=== Description ===

Basic Info.

Model NO. RN72-S Condition New Customized Customized Transport Package Wooden Packing Specification food grade Trademark honpack Origin China HS Code 8438800000 Production Capacity 2000

Product Description

 twins screw extruder making pet food machine Product Description

dry pet food pellet making extruder equipment pet food processing machine dog food extrusion machine

Pet machine is suitable to make dry and wet type pet food pellet (dog food, cat food, fish food etc.)
1). All pet food equipments are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). Reno provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your require)


twins screw extruder making pet food machine Flow chart:

grinding→mixing→extruding→drying→flavoring→cooling→packaging


twins screw extruder making pet food machine Flow chart diagram:

 Our engineer could design the layout drawing according to your dimension of the factory for the dog food machines.

twins screw extruder making pet food machine Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

can also add fresh bone, meat, etc.

Final product:

pet food pellet
round, bone, flower, triangle shape etc.
taste customized
color customized

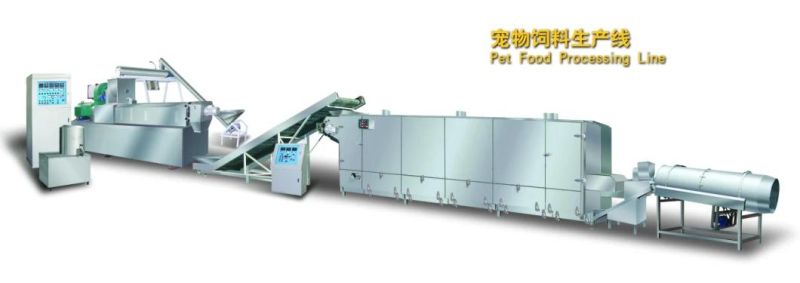

Equipment list in the pet food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling
machine→packing machine1) mixer of pet food machine dog food making machine

Name	Mixer
Usage	To mix the raw materials evenly, fast speed, no leakage.
Type	Vertical and horizontal type
Motor	3kw, 4kw, 7.5kw etc.
Capacity	20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material	stainless steel, carbon steel

2) extruder of pet food machine dog food making machine

Name	Twin screw extruder
Usage	To extrude the raw materials and make them to the required shape and size of the pet food pellets by mould
Model	RN65, 70, 75, 90, 95, 120, 135
Motor	22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity	100kg/h to 10 ton/h
Material	Screw materials 38CrMoAlstainless steel, carbon steel



Dry type twin screw extruder for pet food

capacity from 100kg/h to 1 ton/h

Wet type twin screw extruder for pet food

capacity from 200kg/h to 10 ton/hTechnical parameter for pet food extruder:

Model	Installed Power(kw)	Power Consumption (kw)	Capacity(kg/h)	Dimension(m)
RN65	74	52	120-180	17*1.2*2.2
RN70	95	70	200-300	20*1.5*2.2
RN75	110	82	250-400	26*1.5*2.2
RN85	139	104	400-800	28*3.5*4.3
RN90	132	75	800-1200	28*3.5*4.3
RN95	165	90	1500-2000	35*3.5*4.3

3) dryer of pet food machine dog food making machine

Name	Dryer (oven)
Usage	the expanded food go through the "s" passage, to be dried to increase the self life.
Type	electrical, steam, gas fired, diesel fired heating type
Model	KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity	100kg/h to 10 ton/h
Material	stainless steel, carbon steel



Electrical heating dryer

Gas or Diesel fired heating dryer

4) flavoring machine of pet food machine dog food making machine

Name	Flavoring machine
Usage	To mix the oil and flavors on the surface of the pet food
Type	single and double flavoring drum
Motor	0.75kw
Capacity	100kg/h to 10 ton/h
Material	stainless steel

5) Packing machine of pet food machine dog food making machine

Name	Packaging machine
Usage	To pack the pet food with required weight
Type	Automatic
Flowing Process	Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range	1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material	stainless steel, carbon steel
