3D Laser Engraving Machine for Crystal Glass Acrylic Hsgp-4kb

• Application：Printing & Packaging, Crafts Industr, Advertising Industry, Glass, Crystal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser
• Automatic Grade：Semi-Automatic
• Applicable Material：Crystal, Glass.Acrylic, Transparent Hard Material
• Type：Flat-Plate

=== Base Info ===

• Model NO.：HSGP-4KB
• Laser Classification：Semiconductor Laser
• Engraving Method：Lattice Engraving
• Product Name：3D Laser Engraving Machine for Crystal Glass
• System Language：English Spanish Russian Arabic and So on
• 3D Laser Engraving Lifetime：≥25000hours
• 3D Laser Engraving Resolution：1200dpi
• Working Environment：Temperature 10-28, No Condensed .
• Maximum Pulse Energy：1.2mj
• Laser Power：3W
• Beam Quality：M2<1.5
• Device Input Power：AC220V±10%50-60Hz
• Customized：Yes
• Transport Package：Air Carton
• Specification：CE, ISO, SGS, FCC, FDA, TUV
• Trademark：Holy Laser
• Origin：Zhejiang, China
• HS Code：8456100090
• Production Capacity：3000set,Year

=== Description ===

Basic Info.

Model NO. HSGP-4KB Laser Classification Semiconductor Laser Engraving Method Lattice Engraving Product Name 3D Laser Engraving Machine for Crystal Glass System Language English Spanish Russian Arabic and So on 3D Laser Engraving Lifetime ≥25000hours 3D Laser Engraving Resolution 1200dpi Working Environment Temperature 10-28, No Condensed . Maximum Pulse Energy 1.2mj Laser Power 3W Beam Quality M2<1.5 Device Input Power AC220V±10%50-60Hz Customized Yes Transport Package Air Carton Specification CE, ISO, SGS, FCC, FDA, TUV Trademark Holy Laser Origin Zhejiang, China HS Code 8456100090 Production Capacity 3000set/Year

Product Description

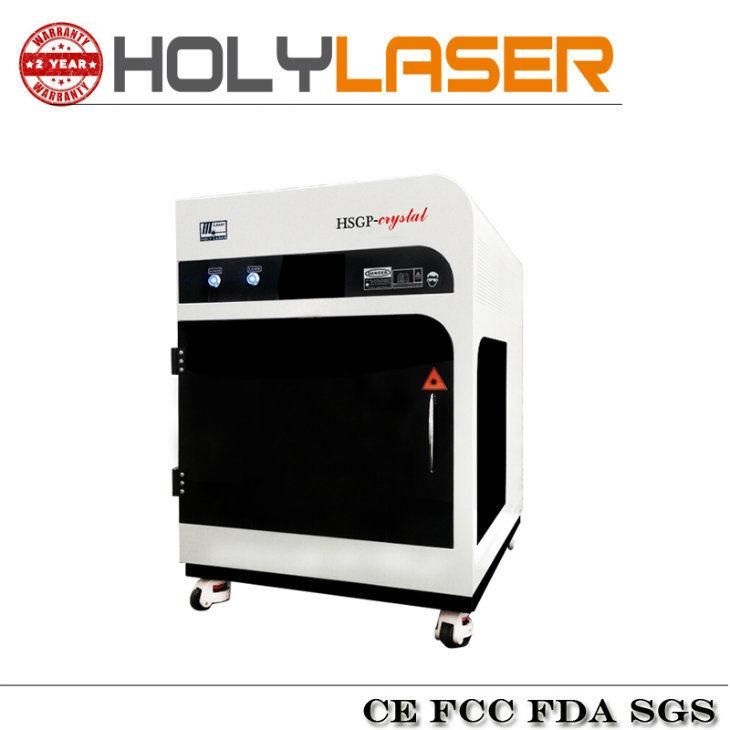

3D Laser Crystal Engraving Machine






Product Introduction:
Our 3D laser engraving machine  is professional to engrave any 2D or 3D photo, images, design,
logos, letters and so on inside of the crystal or glass cube by laser.  Self-devel-opend by Holy Laser,
used the imported laser equipment and self-designed control system, is full consideration to the
special needs of different applications . The  software  operation is high efficiency , the engraving
effect is fine , the machine is good stability and low maintence.



Technical parameter:


HSGP-3K/4K/5K : Is a high resolution laser engraving machine,is really a fine processing machine with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, photo printing shops, personalized gifts shops, crystal gifts mass production ,That's elaboration for your home decoration.




Type	HSGP-4KB
laser / laser wavelength	semiconductor diode/ 532nm
laser repetition frequency	4000hz
marking speed	24,0000dots/min
max. marking scope	300*400*130mm
focus diameter/resolution	0.02nm/ 800DPI
working	with high speed scanner+X+Y+Z (5 axis)
positioning accuracy	10μm
continuous working time	24 hours
coolinf/quality warranty	air colling
lifetime	more than 20,000hours
gross power/noise	1.5KW/ 50db
power requirement	single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz
software	self reseach software for 3D, 2Ddots cloud, and for control machine
suitable materials	Crystal, glass, hard plastic, acrylic, metal, etc.
working environment	temperature10-28°C, humidity less than 70%, non-condensed



 Advantage:
1). Machine no consumables, no need to change the spare parts, just power is ok.
2). Import germany laser can working 25000 hours, whole machine can be use more then ten
years, and can continue 24 hours working.
3). Free computer ,Free software,Free 500 design photo Free English menu, Free training 3-5
days,Free make sample for you
4). 2 years whole machine warranty, life-time maintenance service, any problem we can solve
on- line  by special software.

Sample Show:


Exhibition Show:

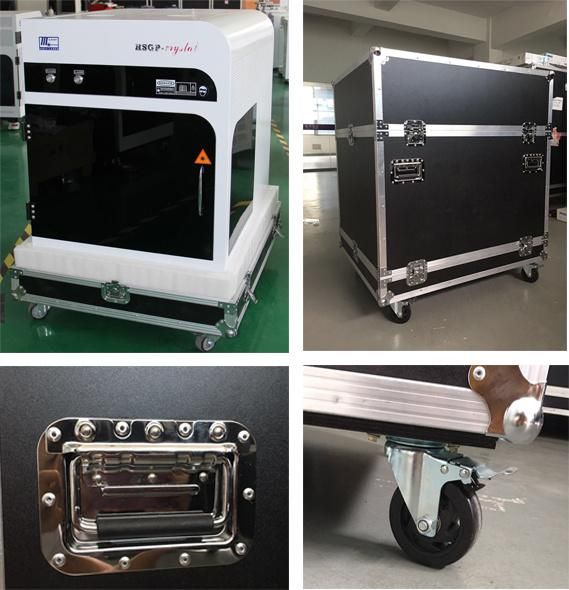

Packing details:



Warranty:
        Holy Laser have a warranty 2 years. Our customer wll have 1-2 days training for the operation
and maintaining technology after the order confirmed.
        24 hours full after sales service: our skilled engineer will help customer to solve the problem
by MSN, WHATSAPP, SKYPE, WECHAT, E-MAIL etc in time when problems happen, if necessary,
overseas service is avaliable.

About factory or trading company:
           Holy Laser is a factory for 17 years. Got import and export License.

Quality control:
           Holy Laser Technology is from Germany. High quality best price.
           Skilled and strict quality inspection team is avaliable during the material purchasing and
production procedure.

OEM service:
          Customized and OEM order are welcome due to aboundant experience.OEM is no problem.

Privacy:
           None of your personally identifiable information(such as your name, address, email address etc)
will be disclosed or shared with any third parties.
            All of your inquiries, questions or helps will be answered within 24 hours, even in holiday.

Payment:

•  The best way is T/T
• We welcome you to use Alibaba Trade Assurance(new, safe payment)
• VISA,WESTERN UNION,E-CHECKING Etc

Holy Laser Video:
Holylaser factory video:https://holylaser.en.made-in-china.com



Warmly welcome you visit our factory!!
Warmly welcome you contact us directly for more information!!!
