- After-sales Service:Online Service
- Warranty:One Year
- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
=== Base Info ===
- Model NO.:KQ-1000
- Application:Milk, Dairy, Milk, Juice, Beverage
- Customized:Accept
- Name and Descroption:CE Piston Stage Certificate Tea Drink Milk Cream Y
- Appications:Milk , Juice, Beverage, Butter, Honey, Cream
- Material:Stainless Steel 304,316
- Capacity:500L,H--10000L,H
- Pressure:CE Certificate
- Homogenizer Certificate:CE Certificate
- High Pressure Homogenizer:Customized Electricity Motor
- Motor Brand:Siemens ,ABB ,China Brand
- Voltage:380V50Hz3phase
- Spare Parts:Two Stage
- Homogenizer Working Life:More Than 10years
- Piston:3set
- Cooling:Ice Water
- MOQ:1set
- Packing:Wooden Box
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
=== Description ===
Basic Info.
Model NO.
KQ-1000
Application
Milk, Dairy, Milk, Juice, Beverage
Customized
Accept
Name and Descroption
CE Piston Stage Certificate Tea Drink Milk Cream Y
Appications
Milk , Juice, Beverage, Butter, Honey, Cream
Material
Stainless Steel 304/316
Capacity
500L/H--10000L/H
Pressure
CE Certificate
Homogenizer Certificate
CE Certificate
High Pressure Homogenizer
Customized Electricity Motor
Motor Brand
Siemens /ABB /China Brand
Voltage
380V50Hz3phase
Spare Parts
Two Stage
Homogenizer Working Life
More Than 10years
Piston
3set
Cooling
Ice Water
MOQ
1set
Packing
Wooden Box
Transport Package
Standard Wooden Box
Specification
CE
Trademark
KAIQUAN
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
100 Units/Month
Product Description

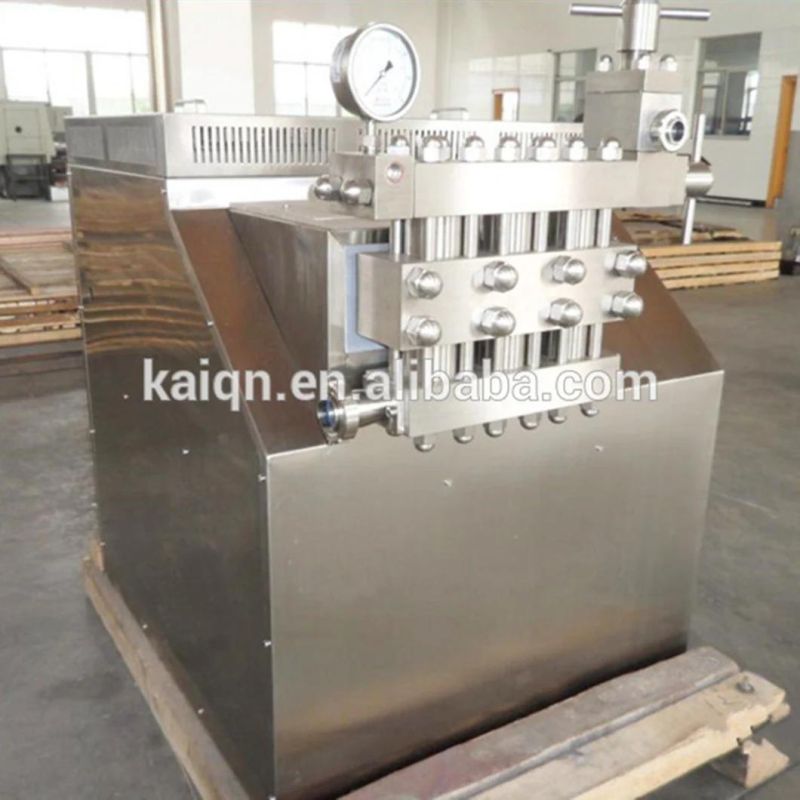

Oil Homogenizer, Homogenizing Machine 250bar
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. );
Oil Homogenizer, Homogenizing Machine 250bar
