500W/1000W/1500W Ipg/Raycus Fiber Laser Cutting Equipment/Cutting Machine/Laser Cutter for Metal Sheet and Pipe Cutting

• Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Solid Laser

=== Base Info ===

• Model NO.：TA-FLST3015P-1000W
• Laser Technology：Laser Flame Cutting
• Model No.：Ta-Flst3015p-1000W
• Working Area：3000*1500mm
• Power Supply：380V,50Hz,60Hz
• Processing Technology：Annealing and Abrasive Blasting
• Laser Source：Ipg,Raycus
• Control System：Cypcut
• Laser Cutting Head：Raytools
• Transport Package：Wooden Case
• Specification：1000W, 2000W
• Trademark：TA
• Origin：China
• HS Code：8456110090
• Production Capacity：200 Sets,Year

=== Description ===

Basic Info.

Model NO. TA-FLST3015P-1000W Laser Technology Laser Flame Cutting Model No. Ta-Flst3015p-1000W Working Area 3000*1500mm Power Supply 380V/50Hz/60Hz Processing Technology Annealing and Abrasive Blasting Laser Source Ipg/Raycus Control System Cypcut Laser Cutting Head Raytools Transport Package Wooden Case Specification 1000W, 2000W Trademark TA Origin China HS Code 8456110090 Production Capacity 200 Sets/Year

Product Description

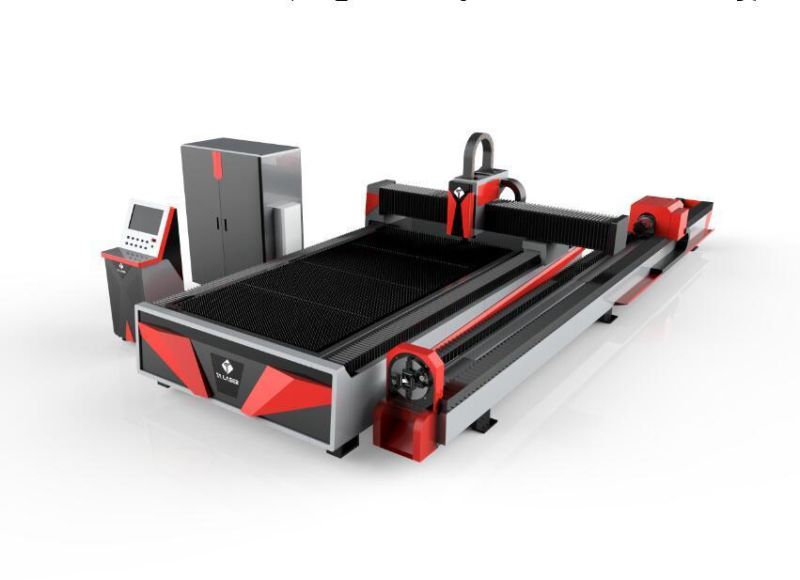

3000*1500mm metal sheet & 3000mm long metal pipe laser cutting machine

Sheet&Pipe laser cutting machine are widely used in metal sheet&pipe cutting machine, which greatly meets requirments for different metal materials. Pipe cutting part, as an additional part that we designed for customer, which greatly reduces cost in pipe cutting.


Generally speaking, the application for this machine are mainly embodied as below:
1. Large quantity of metal sheet cutting
2. Less quantity of metal pipe cutting


Laser type	Rayucs/IPG Fiber laser from Germany
Laser wavelength	1070nm
Laser power  output rating	700w/1000w/1500w
X-axis travel	1500mm
Y-axis travel	3000mm
Z-axis travel	100mm
Working table	Fixed working table/pallet table/Full closed type/Y axis rotary device
Repeat position accuracy	0.03mm/m
Travel speed	80m/min
Processing accelerating speed	0.8G
Position accuracy	0.05mm
Control system	CYPCUT
Laser head	Switzerland Raytools cutting head
Idle/processing speed	80m/min;
Software	CYPCUT
Format supported	AI, BMP, PLT, DXF, DST, etc ,
Power supply	380V/50Hz
Pipe cutting size	20~200
Pipe type	Round/square/flat/oliver

It is widely used in the following field:
