Sprayer Hydraulic Directional Valve Symbols

Changzhou Kaiguan Packaging & Technology Co., Ltd. / 2022-06-27

Sprayer Hydraulic Directional Valve Symbols

  • Function:Flow Control
  • Installation:Threaded Cartridge
  • Drive:Hydraulic
  • Type:Directly Operated Type
  • Spool:1, 2, 3, 4, 5, 6, ...
  • Flow:40lt, 50lt, 60lt, 90lt, 100lt, 120lt, 140lt, ...

=== Base Info ===

  • Model NO.:P80
  • Transport Package:Carton, Pallet
  • Specification:5 KGS
  • Trademark:HANJIU
  • Origin:China
  • HS Code:8481802990
  • Production Capacity:10000 Pieces

=== Description ===

Basic Info.

Model NO. P80 Transport Package Carton, Pallet Specification 5 KGS Trademark HANJIU Origin China HS Code 8481802990 Production Capacity 10000 Pieces

Product Description

Sprayer hydraulic directional valve symbols

Description

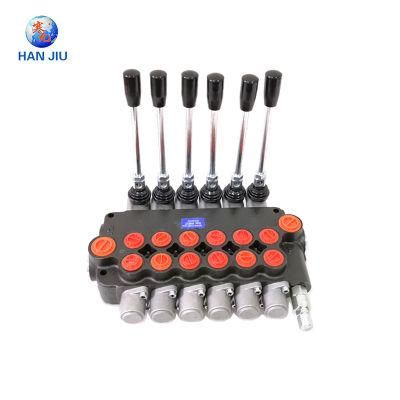

Manually or mechanically controlled hydraulic Monoblock Control Valves is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

Construction

This valve is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8


3/4" Ported 2 Bank Monoblock Valve (Double Acting Spools also known as ram spools)Built in Adjustable Main relief valveNominal Flow Rating - 80L/MinMax Flow - 100LOperating Pressure - 315 Bar - 4600 Psi  Spring Return To Neutral
