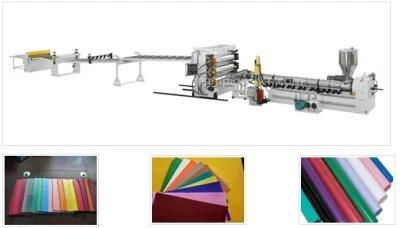

ABS / Tpo / EVA / EPDM Sheet Production Line

=== Base Info ===

=== Description ===

Basic Info.

Exhaust Exhaust Automation Automatic Suitable Material ABS/Tpo/EVA/EPDM/PP/PE Extruder Specification 120/38,60/35/45/35 Co-Extrusion Delamination a/B/C,a/B/a,a/B Product Width(mm) 1200-1700 Product Thickness(mm) 1-6 Max Extrusion Output (Kg/H) 550

Product Description

ABS automotive interiors, luggage board

The skin pattern board, the sub - light leather board, the flame-resistant leather board,etc.. Has good thermal

plasticity, flame retardant and high impact resistance. Uses: cars, bus roof, dashboard, door panels, window frame,

motorcycle case; trolley, luggage, leisure bags.

TPO/EVA/EPDM

Aging resistance, water resistance, corrosion resistance, anti ultraviolet, good flexibility, long life performance, are

widely used in automotive sealing, sound insulation cushion, car tail box, fenders, inside and outside of the car

decorative accessories.

PP/PE

A series of polymer waterproof coiled material and its characteristic is high tensile strength, good extension

performance, by hot and cold shrinkage, and elastic and watertightness is a kind of excellent performance of

waterproof material. Widely used in industrial sulfuric acid tank lining, subway, culvert, basement, roof, railway

bridge deck waterproof, landfill engineering, waterproof, waterproof, geotechnical grid, etc..

Technical Parameters

Model	suitable Material	Extruder  Specification	Co-extrusion  Delamination	Product  Width(mm)	Product  Thickness(mm)	Max  Extrusion  Output (kg/h)
SWD120/60/45-1800	ABS/TPO/EVA/EPDM/PP/PE	120/38,60/35/45/35	A/B/C,A/B/A,A/B	1200-1700	1-6	550
SWD130/70-180	ABS/TPO/EVA/EPDM/PP/PE	130/38,70/35	A/B/A,A/B	1800-2100	2-8	750
