Plastic Monofilament Machine for Pet/PP/PVC/Nylon Zipper/Rope/Broom

=== Base Info ===

=== Description ===
No.Name Quantity1Single screw extruderOne set 2Die headOne set 3Water-cooling tankOne set 4First tensile machineOne set 5Water-heating tankOne set 6Second tensile machineOne set 7Third tensile machineOne set 8Oil bath tank One set 9Pneumatic tensionerOne set10two position winderOne set

ELECTRICAL CONFIGURATION:
1) Main motor frequency controller: ABB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

TECHNICAL PARATETERS

Power supply	380V,3 phase,50HZ
Raw material	PET/PP/PE/PVC/PBT
Diameter of final product	0.05-2.5mm
Capacity	50-150kg/hour

DIFFERENT MODELS

Model	Filament Dia.	Production capacity	Total Power
SJ-75	0.05MM-2MM	50-85kg/h	80KW
SJ-80	0.05MM-2MM	70-120kg/h	90KW
SJ-90	0.05MM-2MM	85-150kg/h	100KW

ADVANTAGE OF ZHUOYA FILAMENT MACHINE:
1. 50 lines every year going to domestic and oversea market.
2. Machine running in the workshop for visiting at any time.
3. Vast experience and suggestion from customers practical operations in about 20 countries.
4. Professional and mature technology in few manufacturers in China

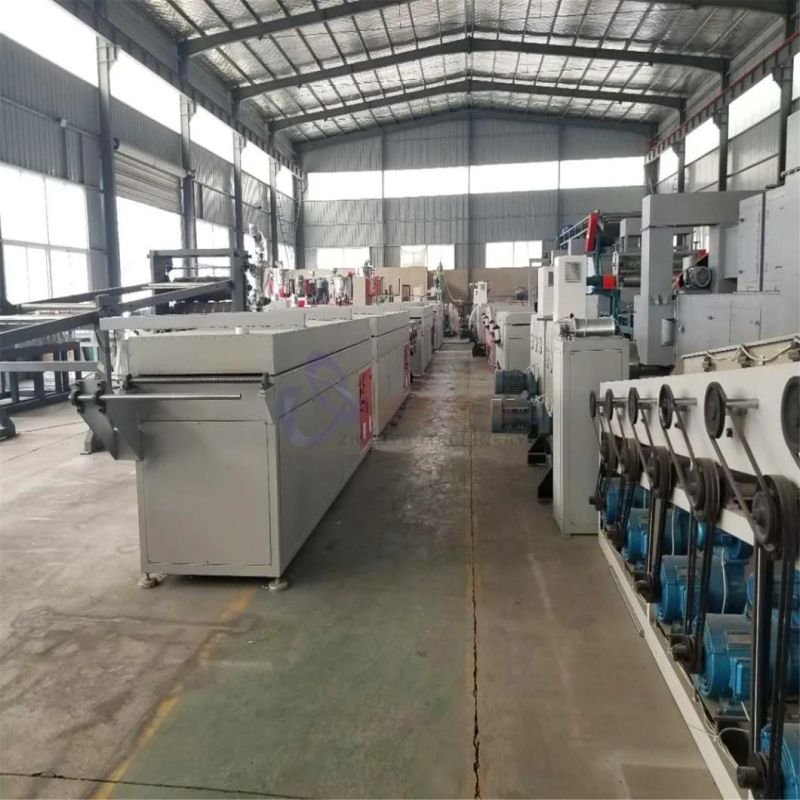

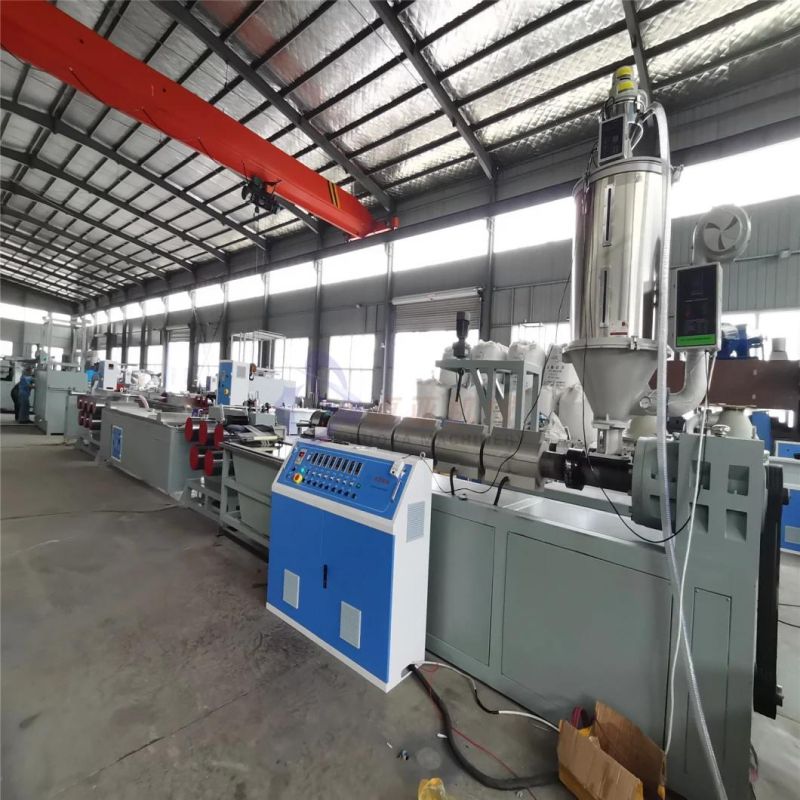

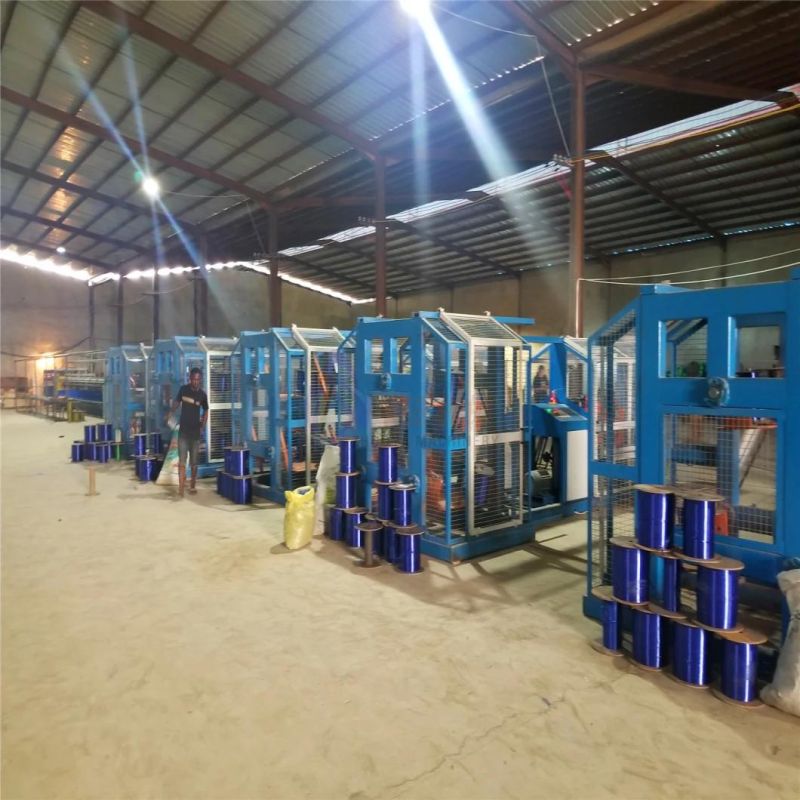

                                                             PRODUCTION LINE




FAQ
Q1: If I need more information, how to contact you?
A:Send me your demands, we will send back detailed machine specifications with working video.

Q2: How to buy your machine?
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.  Payment terms: 30% deposit, after machine testing good, 70% before shipment.

Q3: What about warrant?
A: We have one-year warranty.We will provide the spare parts for free except the malfunction caused by your incorrect operation.

Q4: How can I believe your factory and company?
A: You are welcomed to ask authority to visit our factory and machine, we are real factory.

Q5: Do you have other service?
A:We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Q6: Where is your factory located?
A:Our factory is in Qingdao city which has the world famous port. If you want to visit our factory, we can come to pick you up.
