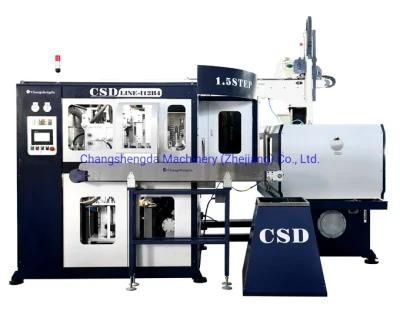

AX SERIES BLOW MOLDING MACHINE
| Item | UNIT | CSD-AX1-2.5L | CSD-AX2-2L | CSD-AX3-1.5L | CSD-AX4-1.5L |
| Cavity | | 1 | 2 | 3 | 4 |
| Product volume | L | ≤ 2.5L | ≤ 2L | ≤ 1.5L | ≤ 1.5L |
| Recommend Production Capacity | Pcs/h | 1100-1600Pcs/h
Based on 500ml bottle,
Preform Neck 28-30mm
Weight: 17gram | 2100-2400Pcs/h
Based on 500ml bottle,
Preform Neck 28-30mm
Weight: 17gram | 2900-3200Pcs/h
Based on 500ml bottle,
Preform Neck 28-30mm
Weight: 17gram | 3900-4200Pcs/h
Based on 500ml bottle,
Preform Neck 28-30mm
Weight: 17gram |
| Max.Diameter of Product | mm | φ 120 | φ 100 | φ 90 | φ 90 |
| Neck Size of Product | mm | φ 15-φ 38 | φ 15-φ 38 | φ 15-φ 38 | φ 15-φ 38 |
| Useful Area of Mould Plate | mm | 200× 350 | 300× 350 | 380× 350 | 480× 350 |
| Mould Thickness | mm | 200 | 200 | 200 | 200 |
| Mould Stroke | mm | 160 | 160 | 110 | 110 |
| Clamping Force | Kn | 120 | 120 | 120 | 210 |
| Stretching Stroke | mm | 450 | 430 | 430 | 430 |
| Working Pressure | Mpa | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
| Blowing Air Pressure | Mpa | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 |
| Measurement of Main Blower | mm | 1820× 1100× 1900 | 2280× 1500× 1900 | 2650× 1780× 1900 | 2810× 2000× 1900 |
| Power of Preheater | Kw | 32 | 36 | 70 | 72 |
| A | 48 | 54 | 105 | 108 |
| Power of Main Blower | Kw | 3 | 3 | 5 | 5 |
| Weight of Main Blower | T | 1.5 | 2 | 2.5 | 3 |
| Measurement of Conveyer | mm | 2570× 2570× 2700 | 2570× 2570× 2700 | 2570× 2570× 2700 | 2890× 2570× 2700 |
| Weight of Conveyer | T | 0.2 | 0.2 | 0.2 | 0.2 |
| HIigh Pressure Air Compressor Unit | Power | Kw | 18.5 | 18.5 x 2 | 22 x 2 | 22 x 2 |
| Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 |
| Discharging Capa. | m³ /min | 1.5 | 3 | 4 | 4 |
| Low Pressure Air Compressor Unit | Power | Kw | ___ | 11 | 11 | 22 |
| Pressure | Mpa | ___ | 1.25 | 1.25 | 1.25 |
| Discharging Capa. | m³ /min | ___ | 1.6 | 1.6 | 3.0 |
| Air Tank | Capacity | M³ | ___ | 0.6 | 0.6 | 0.6 |
| Working Pressure | MPa | ___ | 3.0 | 3.0 | 3.0 |
| Water Chiller | Cooling Capacity | Kcal/h | 11900 | 11900 | 11900 | 24090 |
| CompressorMotor | HP | 5 | 5 | 5 | 10 |
Air Filter
Oil Filter
Odor Removal
Filter | Capacity | m³ /min | 2 | 3 | 4 | 4 |
| Working Pressure | MPa | 3.0 | 3.0 | 3.0 | 3.0 |
Item
UNIT | CSD-AX1-5L | CSD-AX1-M-5GAL | CSD-AX2-W-5L | CSD-AX2-M-10L | CSD-AX2-M-5L | | Cavity | | 1 | 1 | 2 | 2 | 2 |
| Product volume | L | ≤ 5L | ≤ 5GAL | ≤ 5L | ≤ 10L | ≤5L |
| Recommend Production Capacity | Pcs/h | 700-850Pcs/h
Based on 5L bottle,
Preform Neck 45mm
Weight: 93gram | 220-240Pcs/h
Based on 5L bottle,
Preform Neck 55mm
Weight: 750gram | 1400-1500Pcs/h
Based on 5L bottle,
Preform Neck 45mm
Weight: 93-120gram | 1100-1200Pcs/h
Based on 5L bottle,
Preform Neck 45mm
Weight: 93-120gram | 1400-1500Pcs/h
Based on 5L bottle,
Preform Neck 80mm
Weight: 93gram |
| Max.Diameter of Product | mm | φ 170 | φ 270 | φ 180 | φ 200 | φ 170 |
| Neck Size of Product | mm | φ 38-φ 45 | φ 45-φ 60 | φ 60-φ 120 | φ 45-φ 60 | φ 38-φ 45 |
| Useful Area of Mould Plate | mm | 240× 400 | 400× 570 | 420× 320 | 600× 460 | 550× 400 |
| Mould Thickness | mm | 240 | 400 | 250 | 300 | 240 |
| Mould Stroke | mm | 220 | 330 | 200 | 240 | 220 |
| Clamping Force | Kn | 240 | 300 | 300 | 300 | 240 |
| Stretching Stroke | mm | 450 | 660 | 380 | 590 | 450 |
| Working Pressure | Mpa | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
| Blowing Air Pressure | Mpa | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 | 2.6-3.0 |
| Measurement of Main Blower | mm | 2350× 1550× 1900 | 4200× 2000× 2300 | 3200× 2000× 1900 | 3200× 2000× 2200 | 3200× 2000× 2200 |
| Power of Preheater | Kw | 48 | 117 | 84 | 60 | 60 |
| A | 72 | 175 | 126 | 90 | 90 |
| Power of Main Blower | Kw | 3 | 5 | 5 | 5 | 5 |
| Weight of Main Blower | T | 2 | 4.5 | 3.5 | 3.5 | 3.5 |
| Measurement of Conveyer | mm | 2570× 2570× 2700 | ___ | ___ | ___ | ___ |
| Weight of Conveyer | T | 0.2 | ___ | ___ | ___ | ___ |
| HIigh Pressure Air Compressor Unit | Power | Kw | 22 x 2 | 22 x 4 | 22 x 3 | 22 x 4 | 22 x 4 |
| Pressure | Mpa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Discharging Capa. | m³ /min | 4 | 6 | 6 | 10 | 8 |
| Low Pressure Air Compressor Unit | Power | Kw | 11 | 22 | 22 | 30 | 22 |
| Pressure | Mpa | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
| Discharging Capa. | m³ /min | 1.6 | 3.0 | 3.0 | 4.0 | 3.0 |
| Air Tank | Capacity | M³ | 0.6 | 2 x 2 | 0.6 x 2 | 2 | 2 |
| Working Pressure | MPa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Water Chiller | Cooling Capacity | Kcal/h | 11900 | 11900 | 35200 | 35200 | 35200 |
| CompressorMotor | HP | 5 | 5 | 10 | 10 | 10 |
Air Filter
Oil Filter
Odor Removal
Filter | Capacity | m³ /min | 1 | 6 | 6 | 10 | 8 |
| Working Pressure | MPa | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
