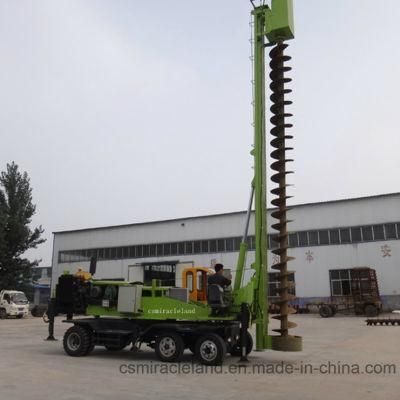

Wheel Type Pile Foundation Drilling Rig (Lq360-8)

=== Base Info ===

=== Description ===
LQ360-8 Wheel Piling RigItemUnitDataVehicle parametersDimensionsmm9500x2100x3050Minimum gapmm230Wheel trackmmFront 1860,back 1920Wheel basemm2550Upright heightmm9600Telescopic trajectorymm650Total weightkg7300Tyre size/Front700-16,back750-16Travel speedKm/h40Grade ability°25Diesel engineModel/Quanchai 490Powerkw36Rotary speedr/min2200Generator setPowerkw40-50Hydraulic systemWedge pressurempa16-20Outrigger pressurempa16-20Max. pressurempa20Main pump flowl/min32Working rangePiling hole diametermm100-800Piling hole depthm8-15Drill pipe speedr/min40-65Drill full forcekn120Rotation angle°360Piling rig performance1 . on the frame and the next frame can be rotated 360 ° , the frame can slide back and forth 80cm. Working without dead ends.
2 . high piling speed, an average of 3 minutes into a 6m deep hole.
3 . Remote piling can use the remote control, the operation easier.
4 . supports two walk way: Hydraulic power walking and walking (with generators).
5 . vehicle parts, electrical products are based on well-known manufacturers, quality is guaranteed.
