Hydraulic Deep Drilling Water Well Drilling Machine Rigs Price

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SL1100 Drill Hole Depth 1100 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Crawler Air Pressure 10.5-40 Bar Air Consumption 16-50 M3/Min Engine Power 160 Kw Weight 18600 Kg for Rock 6-20 F Transport Package Standard Shipping Packing Specification 9300MM*2100MM*3800MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

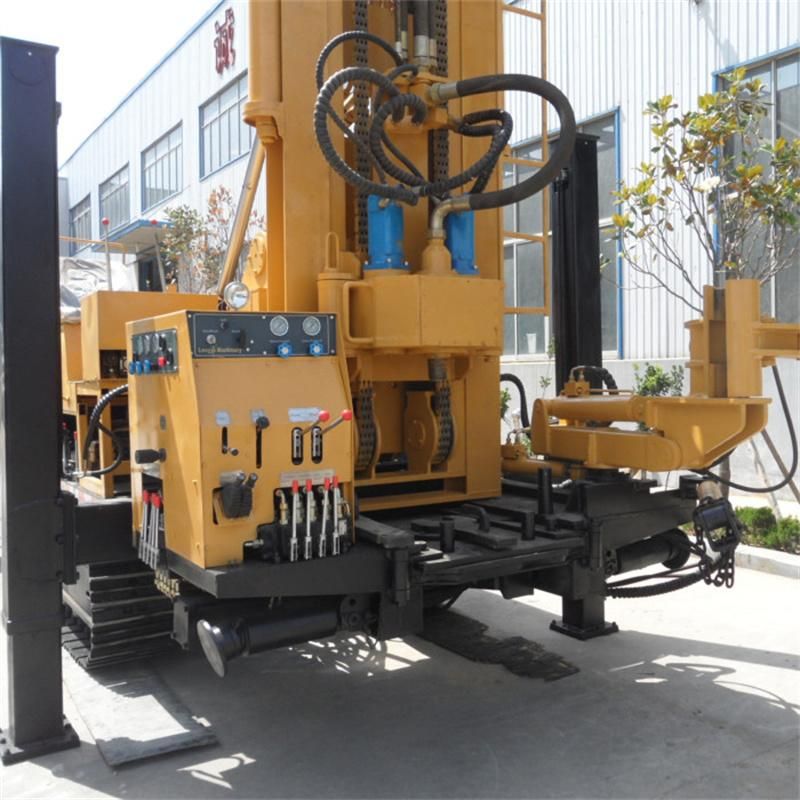

Product IntroductionHydraulic Deep Drilling Water Well Drilling Machine Rigs PriceSLY1100 crawler water well drilling rig is a new type,high efficiency and energy-saving multifunctional drilling machine, mainly used for drilling water wells, monitoring wells, geothermal air conditioning holes, anchoring, foundation and bridge pile holes drilling; the rig can adopt DTH hammer, mud pump,reverse circulation,sleeve following-up and other boring technologies, can effectively solve the problems during drilling in various terrain.
The SLY1100 drilling machine is equipped with imported large torque hydraulic rotary power head, which can be selected according to different construction requirements, greatly saving the cost of  purchasing equipment and effectively improving construction efficiency.
As for loose layer, can use roller bit drilling, mud draining, reverse circulation construction,etc, and machine hydraulic support legs have large stroke so no need extra crane for loading and unloading.


Bore diameter(mm)	115-800
Bore depth(m)	1100
Walk speed(km/h)	0-2.5
For rock(F)	6--20
Air pressure(Mpa)	1.05-4.0
Air consumption(m³/min)	16-50
Once promotion(mm)	6000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-100
Rotation torque(NM)	18000
Lifting power(T)	50
Climb ability(°)	25
Dimension(L*W*H)(mm)	9300*2100*3800
Weight(T)	18.6

Product Display


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.



FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' OT or FR Container for 1 set.
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
