Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

Xiamen ZL Diamond Technology Co., Ltd. / 2022-07-04

Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

=== Base Info ===

=== Description ===

Model

BXY-2700

BXY-3000

BXY-3200

Working area(mm)(L*W)

2500x1400

2800x1900

3100x2000

Forming area(mm)(L*W)

2400x1300

2700x1800

3000x1900

Function

Suction, Press, Blow

Suction, Press, Blow

Suction, Press, Blow

Max. suction forming depth(mm)

80

80

80

Max. press forming depth(mm)

130

130

130

Max. blow forming depth(mm))

220

220

220

Oven Open style

Manual push-pull type

Manual push-pull type

Manual push-pull type

Heating area

1

1

1

Suction holes

1

1

1

Hydraulic pressure

1-20T

1-20T

1-20T

Working pressure

3-6T

3-6T

3-6T

Vacuum pump output

30m³/H

30m³/H

30m³/H

Total power(kw)

22.5

28.5

28.5

Working Voltage

AC380V/50HZ/3P

AC380V/50HZ/3P

AC380V/50HZ/3P

Net Weight (kgs)

1900

2300

2500

Overall size (mm)  (L*W*H)

2900*1500*2250

3200*2000*2250

3500*2150*2250


Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

BXY-2700 Multi-function Acrylic vacuum thermoforming machine for acrylic abs PVC sheet

Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc


Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

BXY-2700 Multi-function Acrylic vacuum thermoforming machine for acrylic abs PVC sheet

Packaging & Shipping

For the Package usually Most of the time we use the plywood case package, but only a few customers choose the PE film package. However, no matter which kind of packing is used, we must ensure the safety of the equipment in transportation. Here is the American customer feedback on our package:
Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc

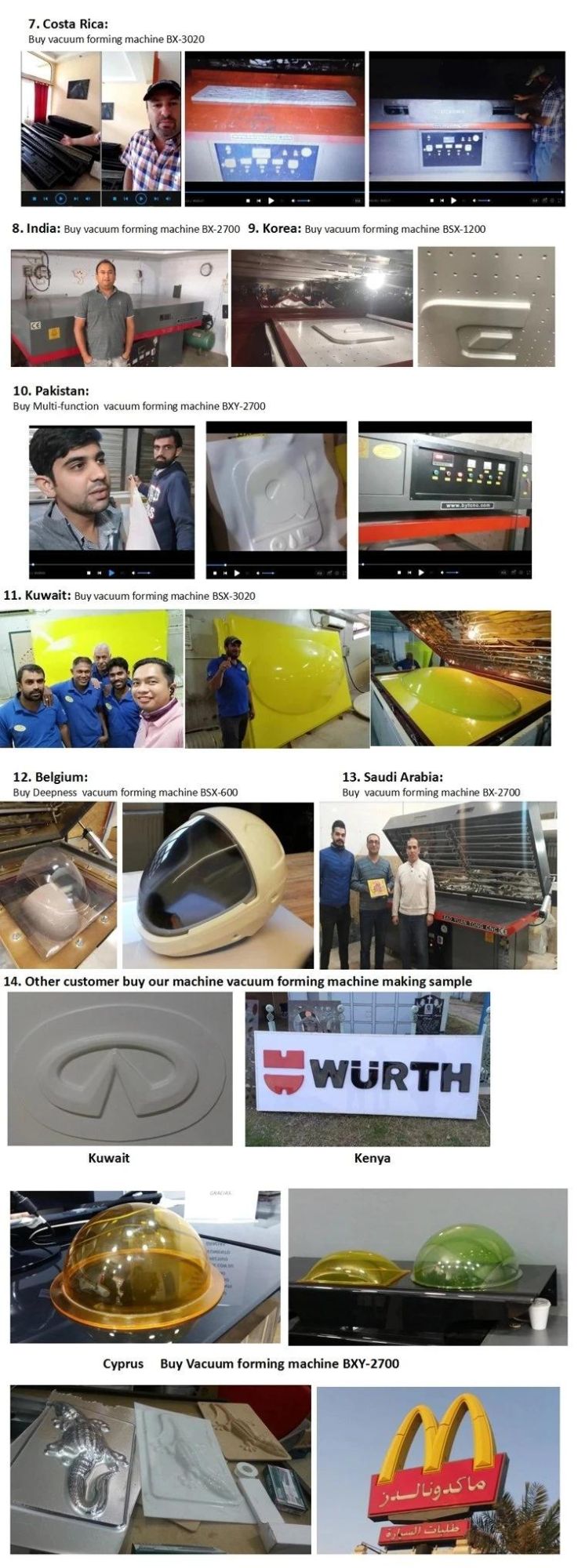

User feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture, listen user's voice)
Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
BXY-2700 Multi-function Acrylic vacuum thermoforming machine for acrylic abs PVC sheet

Service

1. What is a Vacuum forming machine?

It mainly uses heating tubes to soften plastic, then use vacuum pump extract vacuum, after cooling get the shape you need.

2. What is the vacuum forming machine used for?

Plastic mold, Mask making, signage making, package, Decoration, University research, etc.

3. Which material can use?

PMMA(Acrylic ), PVC,ABS,PE,PET ect.

4. How to choose a vacuum forming machine?

1) The material type and material thickness, Less than 6mm

2) Finish forming products size

3) Sample pictures

5. Which type of machine you have?

Now mainly we have three type vacuum forming machine, the main difference:

1) BX series only has a suction function, the max forming height 80mm

2) BSX series have suction and blow function, the max forming height can meet 200-300mm

3) BXY series have Press, suction and blow function, the max forming height meet 220mm when using blow function

For each type we have detail information, here have these three types of working video you can check, more detailed information contact us

BXY-2700 Multi-function Acrylic vacuum thermoforming machine for acrylic abs PVC sheet

Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
Company Information
SHANDONG YUANTONG CENTURY INTELLIGENT TECHNOLOGY CO., LTD This factory build in 1996, mainly produce vacuum forming machine, vacuum press, CNC router, laser machine, and channel letter bending machine, the products export to more than 152 countries and get CE and SGS certification, service more than 2000 customers

Full Automatic Acrylic ABS Vacuum Forming Machine Bytcnc
BXY-2700 Multi-function Acrylic vacuum thermoforming machine for acrylic abs PVC sheet

FAQ

Q1 Which material can use? How to choose a vacuum forming machine?

A1 Vacuum forming machine can use PMMA(Acrylic ), PVC, ABS, PE, PET thermoplastic material.

About how to choose vacuum  former, usually, we need to know below questions

1) The material type and material thickness, Less than 6mm

2) Finish forming products size

3) Sample pictures

Q2 For this machine what is the working voltage, if you accept the customized voltage?

A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P, another type normally working voltage is 380V/50HZ/3P, we can accept customized voltage, for example, 220V/60HZ/3P, 415V/60HZ/3P, etc.

Q3 When this machine working, if it needs any accessory equipment?

A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mold and want to make it by yourself, so you need to prepare a wood CNC router; When finish forming need to trim off the unwanted edge, need a trimmer. for these machines we all can provide

Q4 For the working area or forming height if you can accept customized?

A4 Yes, we can accept the customized working area and forming height, now we finish the BSX-2030 max forming height of 450mm.

Q5 After I buy this machine how you arrange training?

1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .

2) After the machine delivery, our sales-service engineer will contact you and inform you, when receiving the machine contact with him, he will serve for you.

3)When you use this machine, any questions you can contact our after-sales service, they provide 24Hours/7Days online service
