Automatic Vacuum Forming Machine Plastic Blister Forming Machine

Wenling Hengfeng Powder Metallurgy Co., Ltd. / 2022-07-04

Automatic Vacuum Forming Machine Plastic Blister Forming Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. HY-720/1220 Computerized Computerized Certification CE, ISO9001:2008, SGS Forming Area 720*1220 Forming Depth 165mm Suitable Material PP/PS/Pet/PVC/PLA Thick of Sheet 0.15-1.5mm Power 60kw Heating Double Oven Heating Delivery Time 30 Days Voltage 380V Weight 3000kgs Dimension (L)6600*(W)1450*(H)2800mm Transport Package Wooden Case Specification CE Trademark HongYin Origin Ruian, Zhejiang HS Code 847780000 Production Capacity 100 Set/Year

Product Description

Automatic Vacuum Forming Machine Plastic Blister Forming MachineThe vacuum machine overview:
HY-720/1220 Plastic vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold ejecting, cutting by one process.
Automatic Vacuum Forming Machine Plastic Blister Forming Machine
Application:

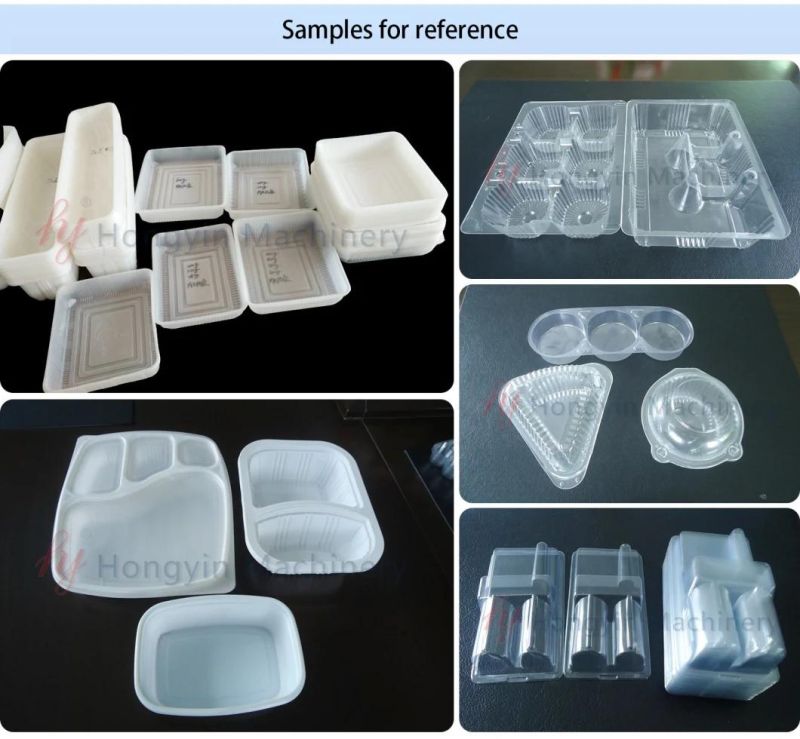

HY-720/1220 vacuum machine is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.

Automatic Vacuum Forming Machine Plastic Blister Forming Machine
Prameters:
1.Max Forming area710*1200mm
2.Sheet width 610-760mm
3.Forming height 0-165mm
4.Thickness of sheet0.15-1.0mm
5.Production speed200-600times/hour(depend on the shape of product and thickness of sheet)
6.Mould-up moveElectromotion
7.Electric oven power30 KW
8.Heating device60 independent electronics non pole adjust(one control one)
9.Traction motor power2.2KW
10.Vacuum pump power3.0 KW
11.Cooling-water machine power3.37 KW
12.Power380V 50/60HZ three phases
13.Air compressor15KW/20HP (remarked by customer)
14.Dimension(L)6600*(W)1450*(H)2800mm
15.Weight 3000kg
.
Automatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming MachineAutomatic Vacuum Forming Machine Plastic Blister Forming Machine
Automatic Vacuum Forming Machine Plastic Blister Forming Machine
About Zhejiang Hongyin Machinery Co., Ltd Services:

1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new to the printing and packing area, Some samples of your products could be shown to us will be appreciated, we will give you a specialized suggestion of whole work.

2. Installation Service:
Hongyin company will assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service:
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer.



If you are interested in our machine, please feel free and contact me.
Contact: Lynn
